• This machine quickly cuts salted kelp and wakame using a flat blade. • It supports customizable cutting widths and large-scale processing, making it ideal for a wide range of culinary applications.
Check the sharpness and cutting quality using real samples.
The up-and-down motion of the flat blade enables high-volume cutting of kelp and wakame.

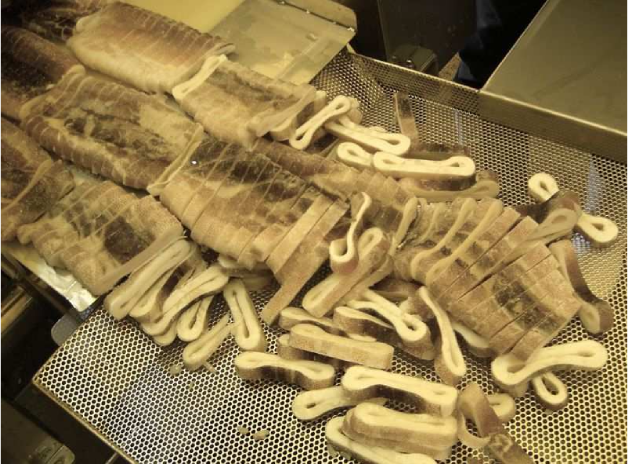

Cut Sample: Squid

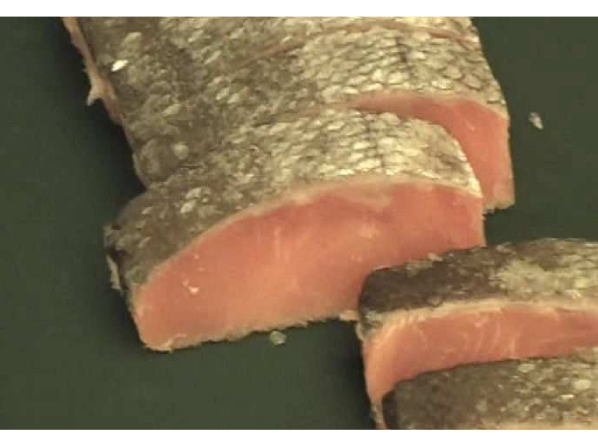

Cut Sample: Salmon
Cut Sample: Octopus
Key Features
●Efficient cutting of kelp and wakame using a reciprocating flat blade
●Cutting widths available from as narrow as 1mm, customizable to your needs
●High yield and ideal for mass processing
●Suitable for various dishes such as pickles, simmered dishes, and salads
●A wide variety of seaweed processing machines are also available—feel free to inquire
Specifications
Processing Method
Straight Blade Type (Vertical Reciprocating Motion)
Cutting Width
From 1 mm (customizable upon request)
Power
1.5 kW × 1 unit
Machine Dimensions:
L2370 × W900 × H1420 (mm)
Belt Width
183 mm

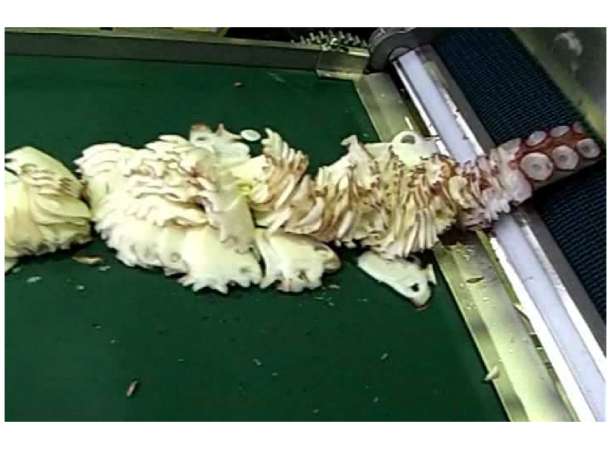

Processing Flow (Octopus Demonstration Report)

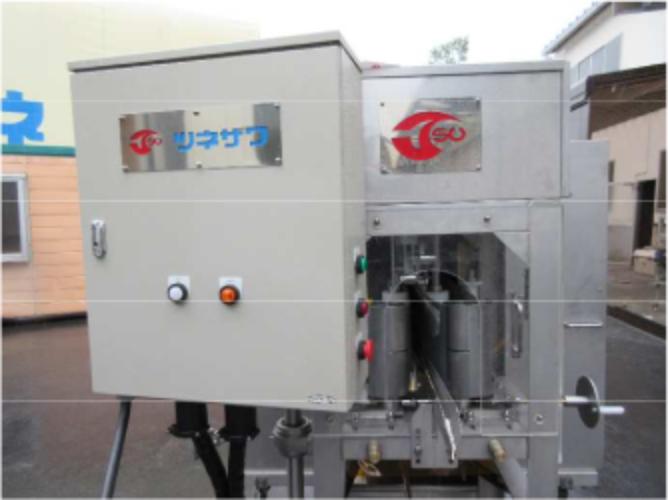

Movable Control Panel

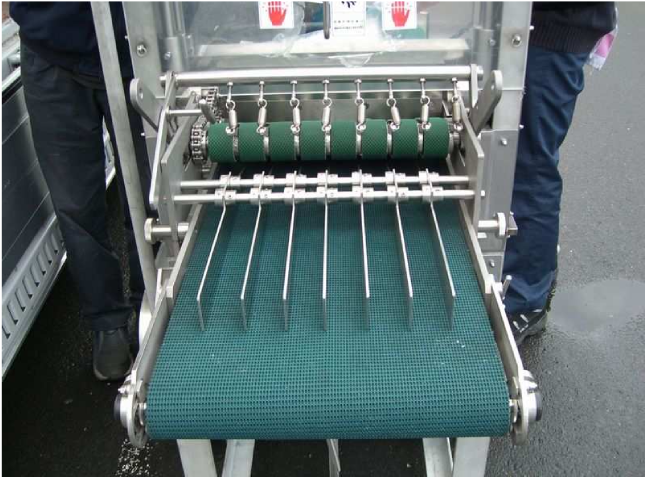

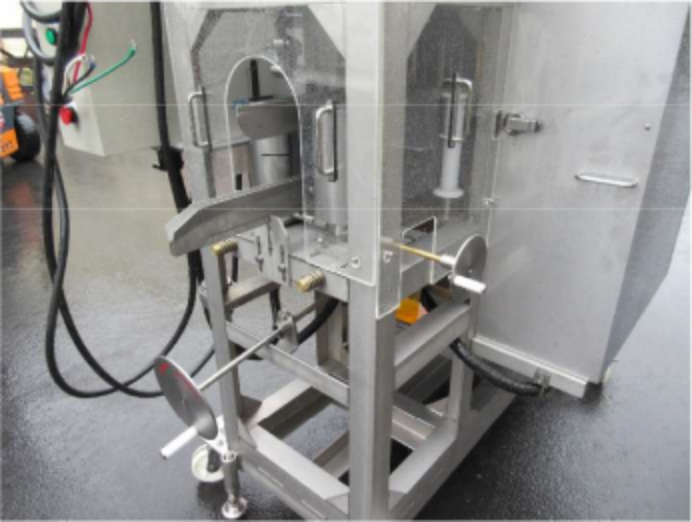

Inlet Guide

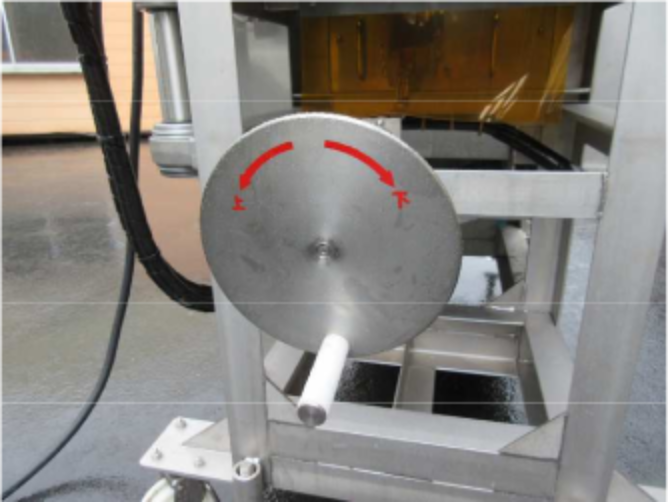

Rotary blade adjustment handle

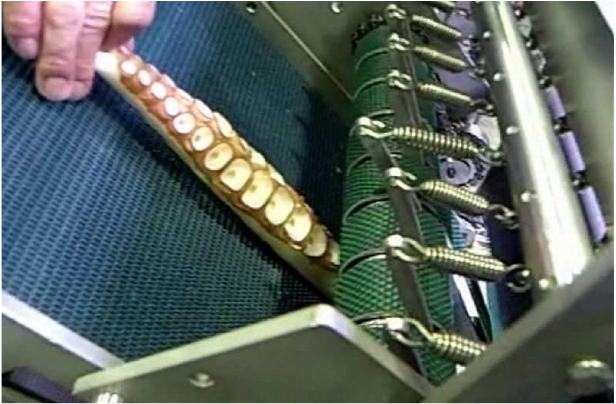

1. Place frozen octopus legs on the inclined belt.

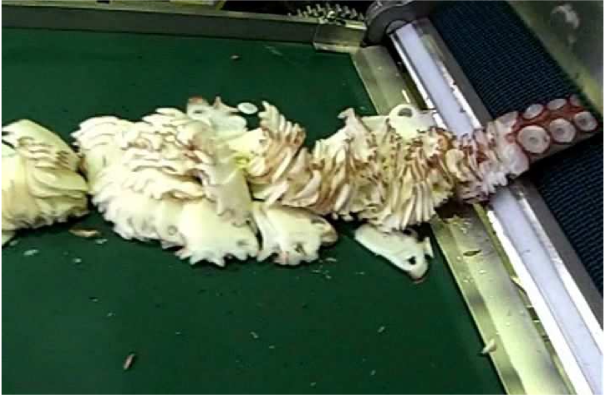

2. The raw material passes under the flat blade.
3. Evenly spaced finished products are produced.
Processing Flow (Salmon Demonstration Report)
1. Place frozen octopus legs on the inclined belt.
2. The raw material passes under the flat blade.
3. Evenly spaced finished products are produced.
By using the inlet guide, you can insert up to eight octopus legs.
