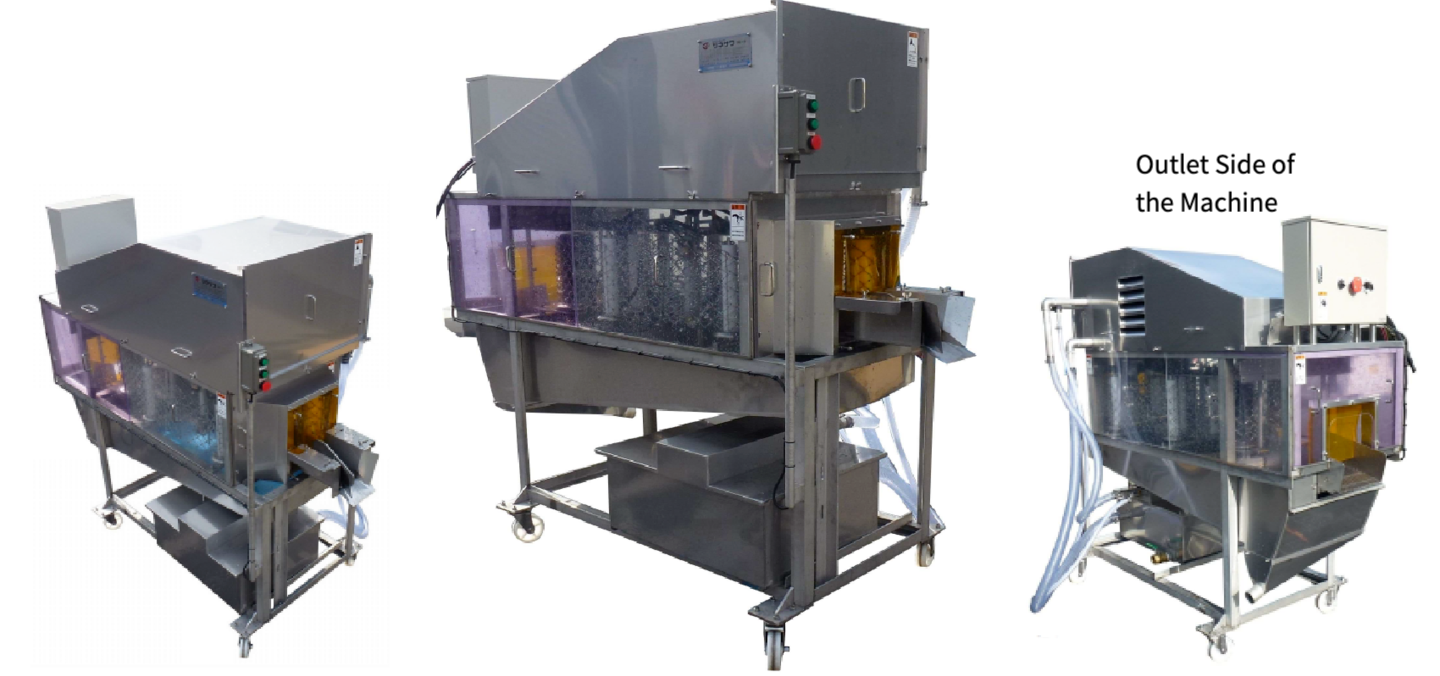

Yellowtail & Salmon Scales Removal and Bloodline Washing Machine



  • This high-pressure water washing machine efficiently removes scales and washes the bloodline of fish such as yellowtail and salmon.
    It allows for smooth operations and quick preparation for the next processing step.

It removes both scales and slime in one go, while also cleaning the bloodline.
The efficient cleaning process using high-pressure water ensures smooth progress of the work.
Product sample: Yellowtail


Product sample: Yellowtail



Key Features

  • ●High-pressure water jets from metal nozzles remove scales, slime, and blood residue
  • ●Easy operation: simply place the fish on the inlet guide and gently push to move it to the next process smoothly
  • ●Equipped with a shower function at the outlet to rinse off scales and debris
  • ●Compact design with a tank stored underneath the machine (external tank setup also available upon request)
  • ●Compatible with fish weighing 3–7 kg; other sizes can also be accommodated

Specifications

  • ●Processing Method: Cleaning with high-pressure water
  • ●Processing Capacity: 25–30 fish per minute
  • ●Power Consumption: Total 9.6 kW
  • ●Machine Dimensions: L 2250 × W 1300 × H 2100 (mm)
  • ●Applicable Fish Species: Salmon, Yellowtail (Hamachi), Japanese Amberjack (Buri), Greater Amberjack (Kanpachi), etc.
  • ●Accessories: Complete tool set

Processing Flow (Yellowtail Demonstration Report)

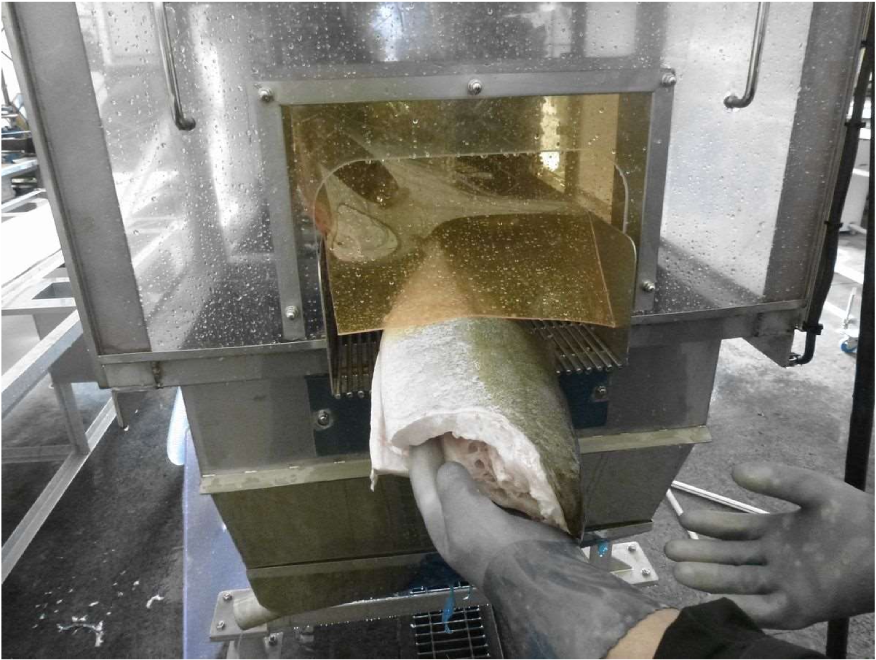

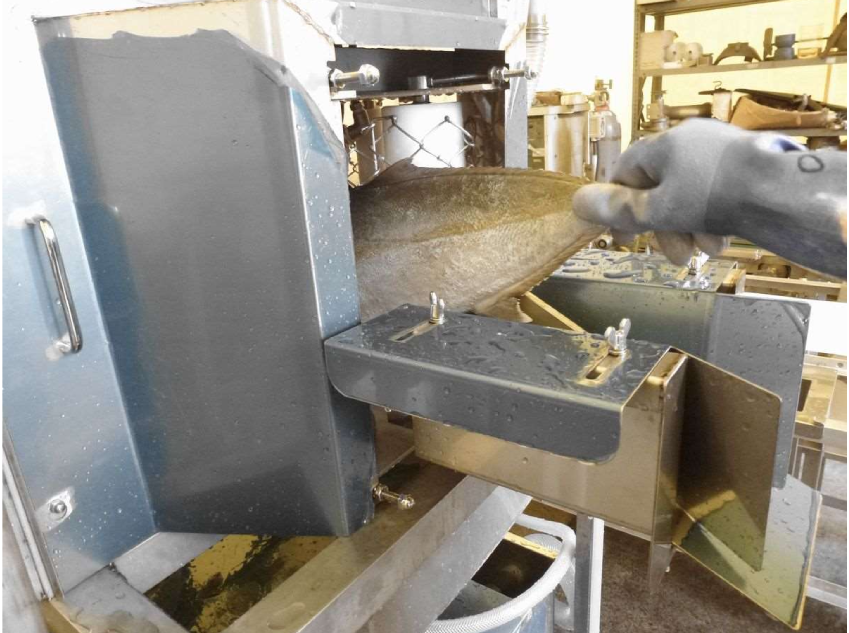

1. Place the raw material on the inlet guide and lightly push it forward.

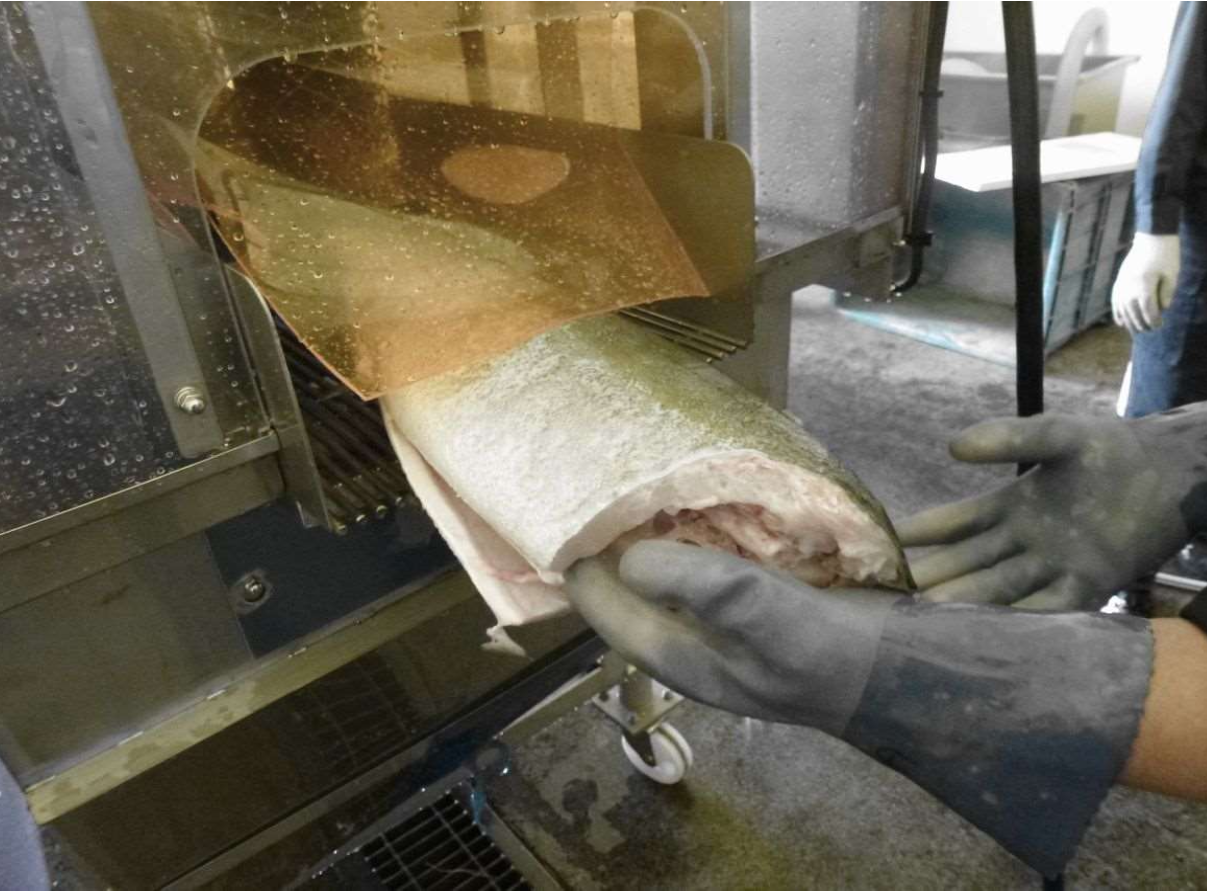

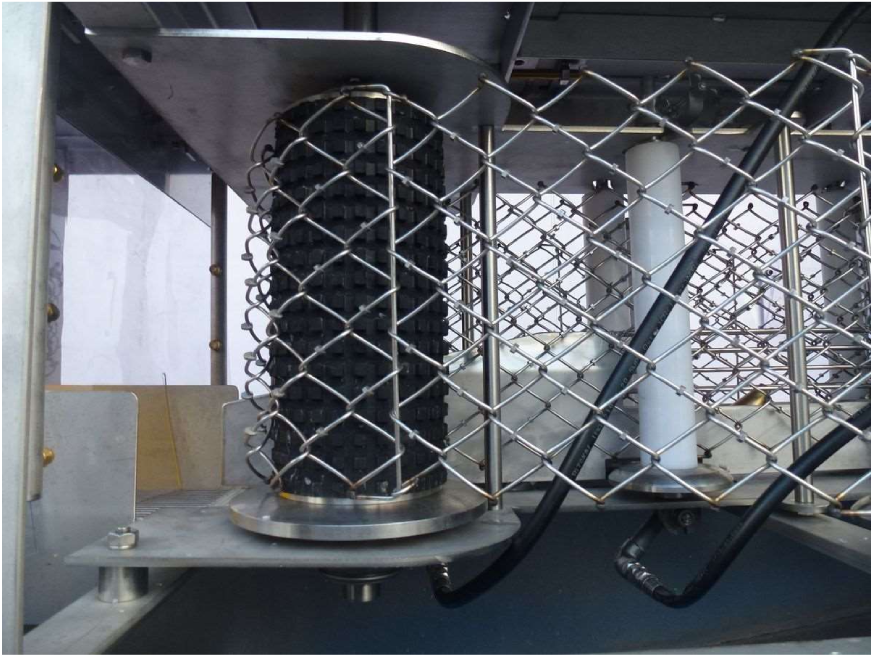

2. Pass through the raw material feeding net.



3. The process is complete.

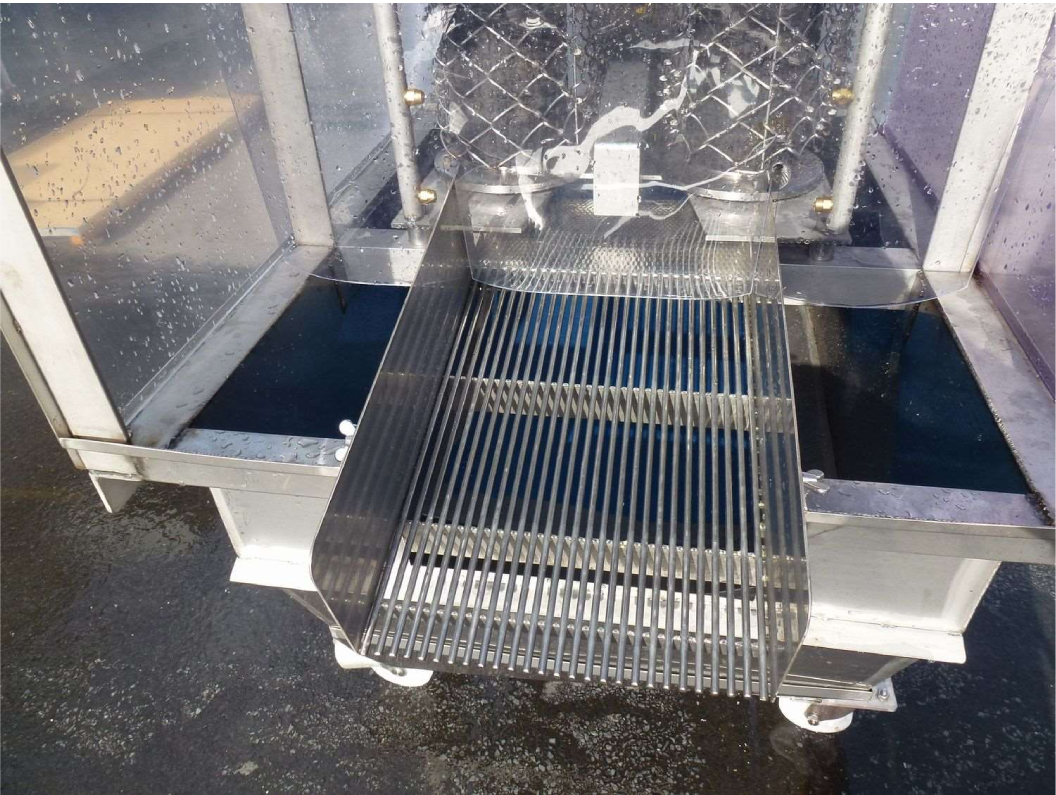

Inlet Guide

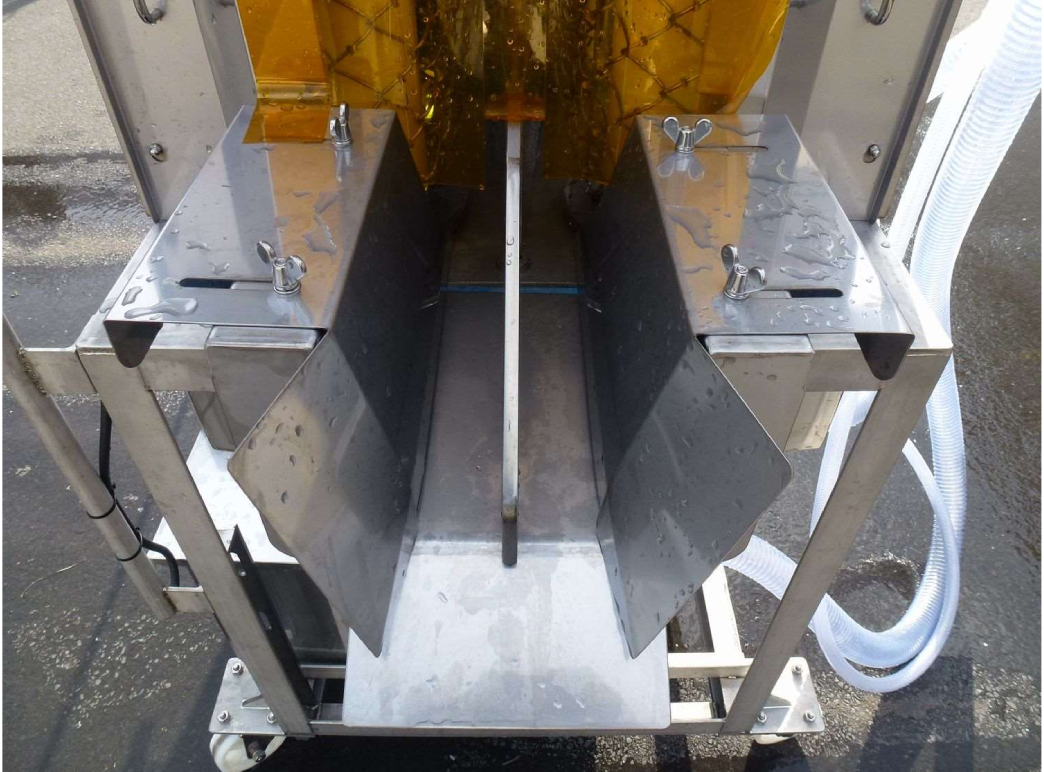

Outlet Chute

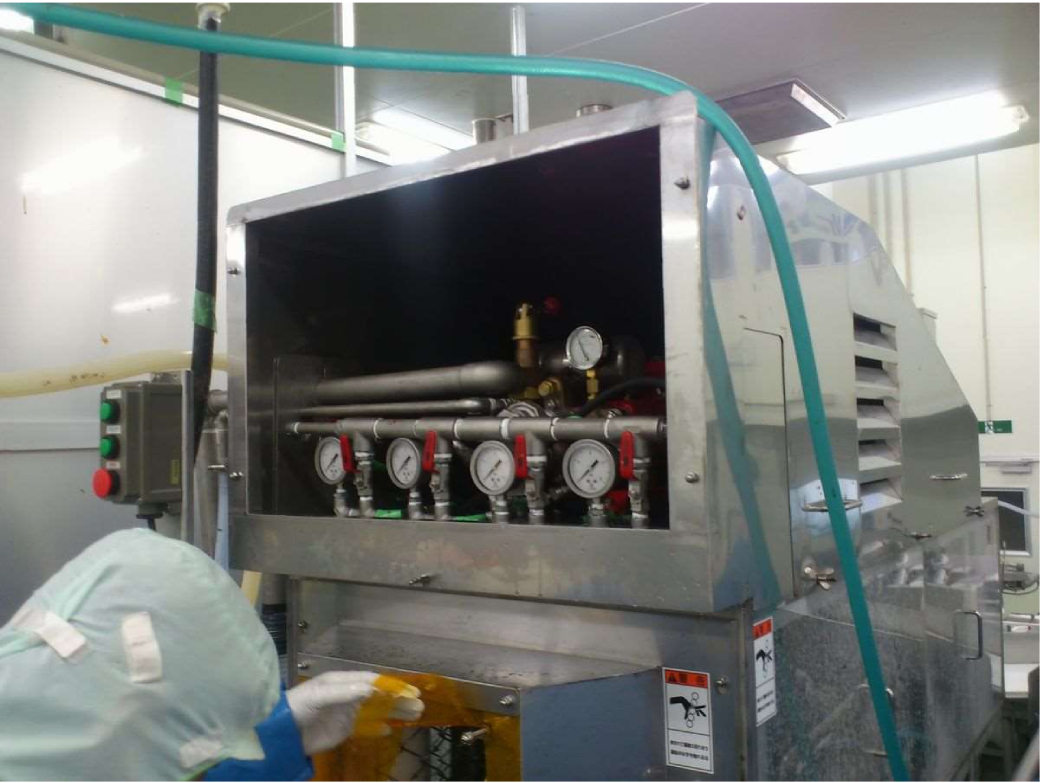

Pressure Gauge, etc.

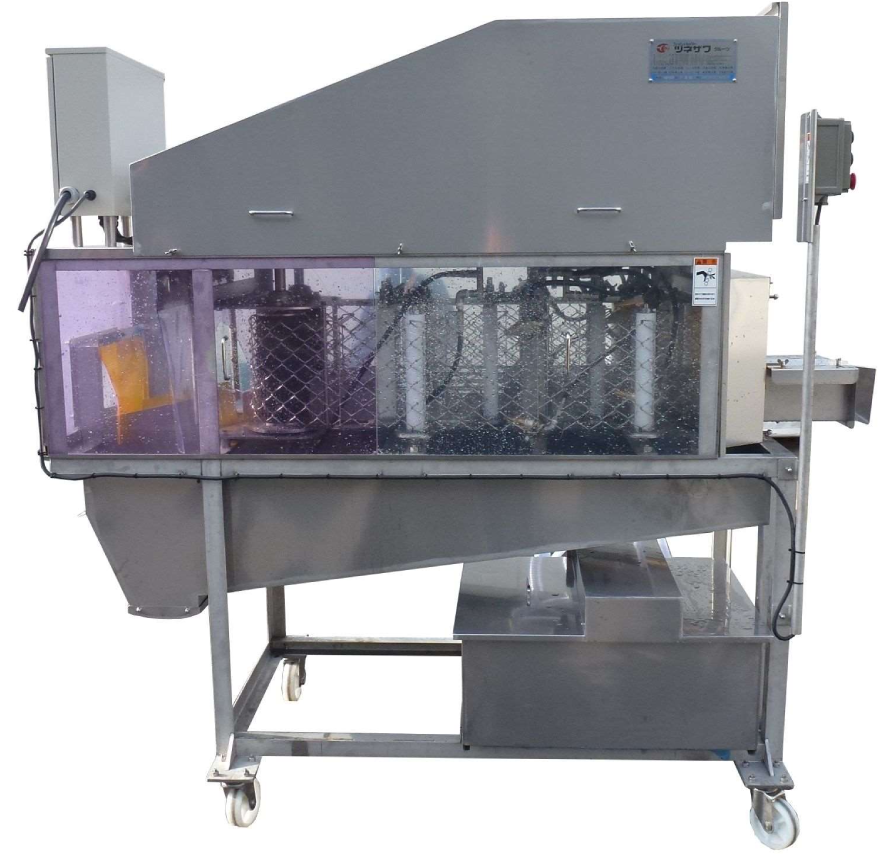

Machine Side View


2枚の丸刃




出口シュート部分
