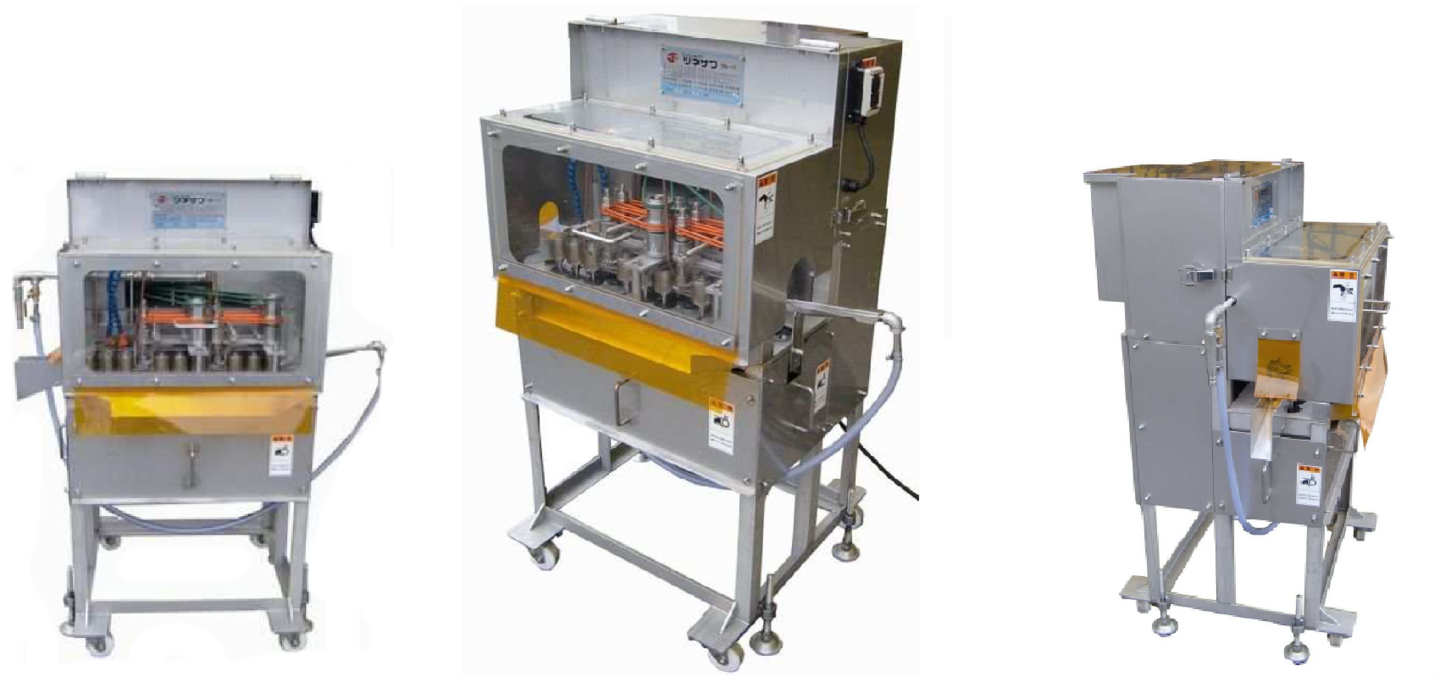

Horse Mackerel Zeigo Remover



  • • This machine cleanly removes the hard scutes of horse mackerel (aji).
    • It is a specialized machine that achieves both a beautiful finish and high work efficiency.

With its special rotor, the zeigo is shaved off without damaging the surface.
When connected with a head cutter or filleting machine, even greater time-saving processing is possible.

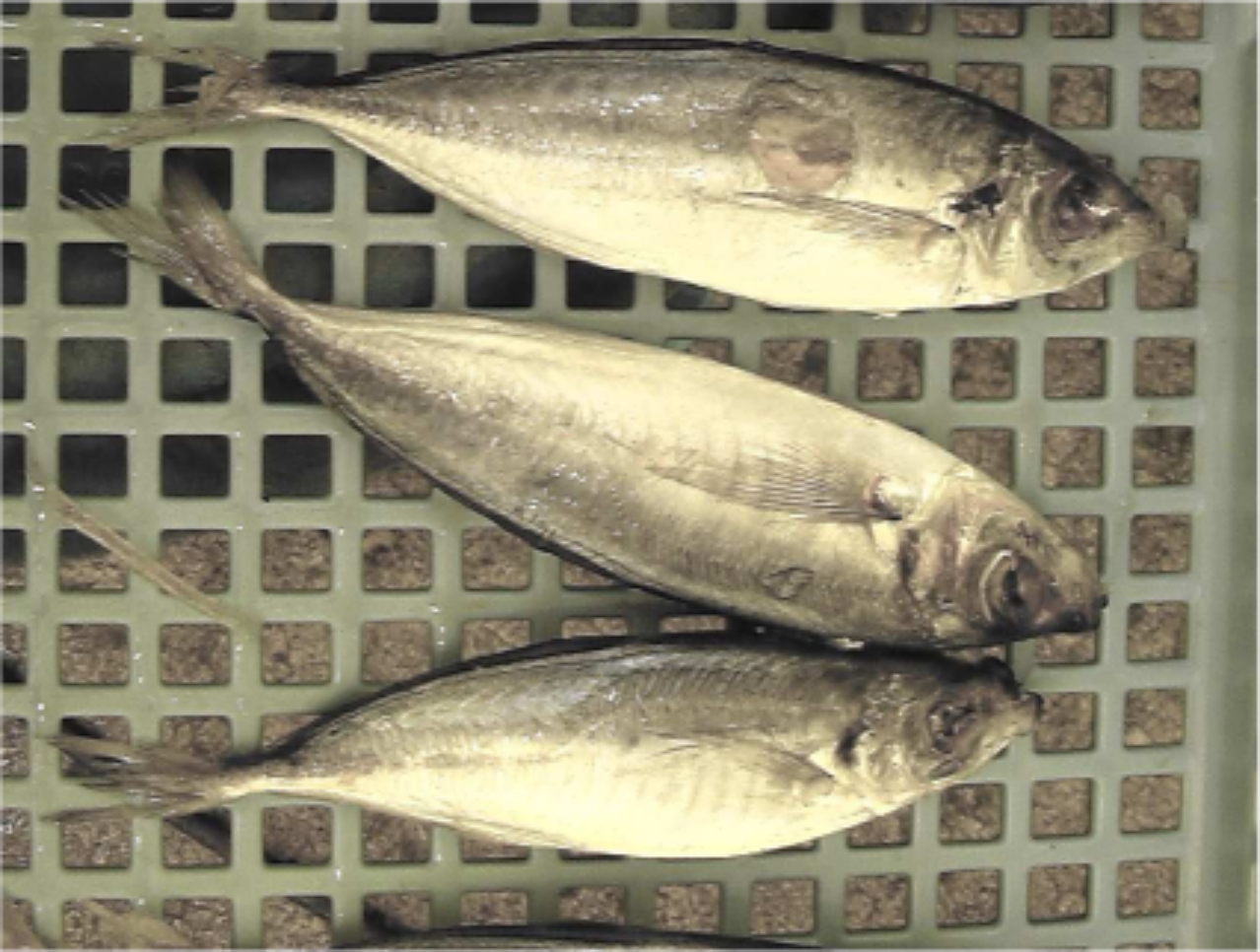

Sample: Horse mackerel

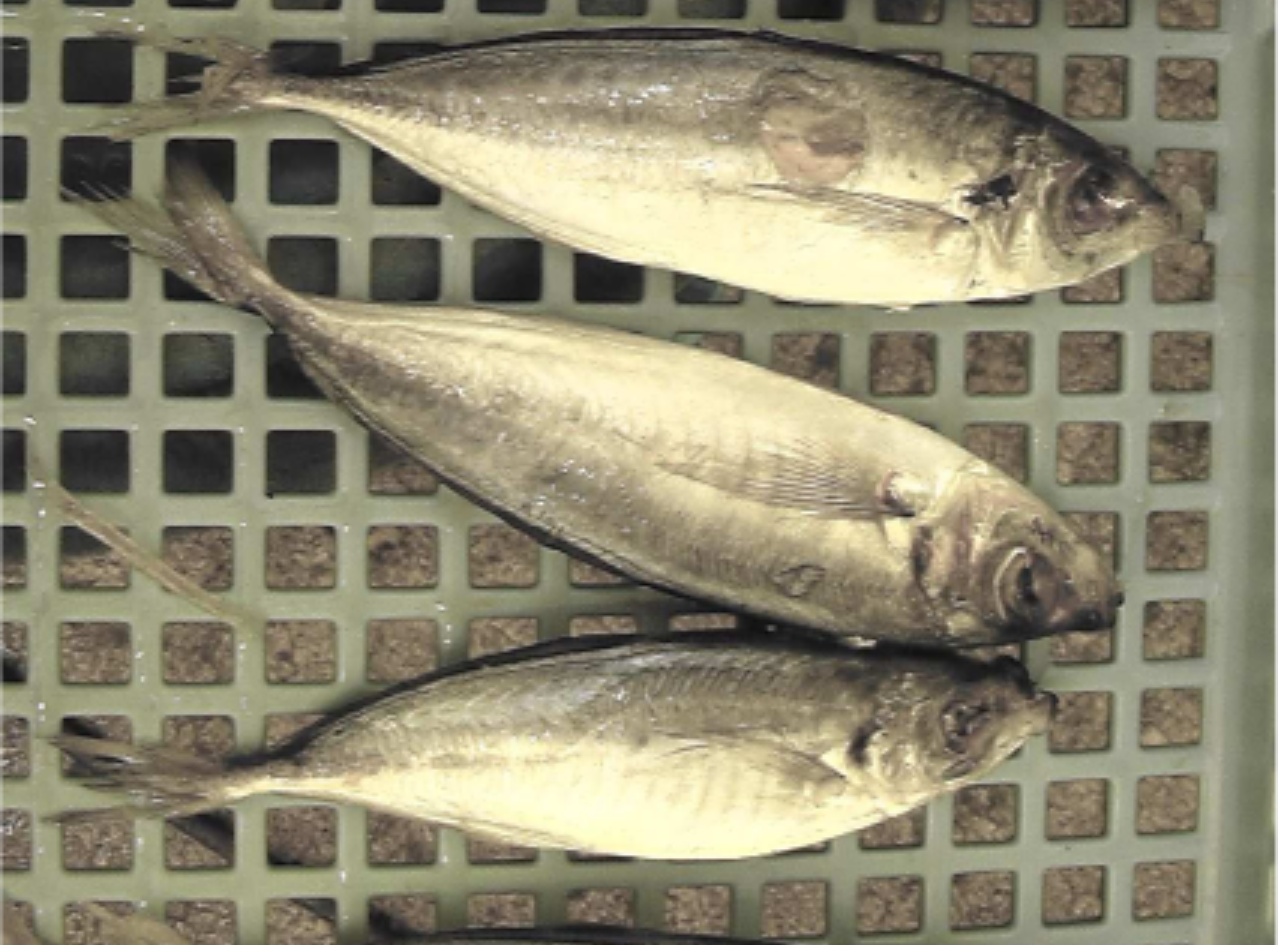

Sample: Horse mackerel



Key Features

  • ●Speedy and clean removal of zeigo (bony scales unique to horse mackerel)
  • ●High-quality finish with no knife marks or scratches thanks to a special rotor
  • ●Can be linked with feeders or other processing machines to create a production line
  • ●Front cover opens and closes for easy cleaning and maintenance
  • ●Made of stainless steel for excellent durability and long-term use
  • ●Processing capacity and specifications can be customized to meet your requirements

Specifications

  • ● Processing method: 8 circular blades (filleting type)
  • ● Power consumption: Total 6.75 kW
  • ● Water usage: 3–5 liters per minute
  • ● Processing capacity: approx. 10 fish/min (mackerel, sea bream), approx. 5 fish/min (yellowtail)
  • ● Machine dimensions: L1800 × W1500 × H1700 mm
  • ● Compatible fish species: Mackerel, Sea Bream, Greater Amberjack, Yellowtail, etc.

Processing Flow (Horse Mackerel Demonstration Report)

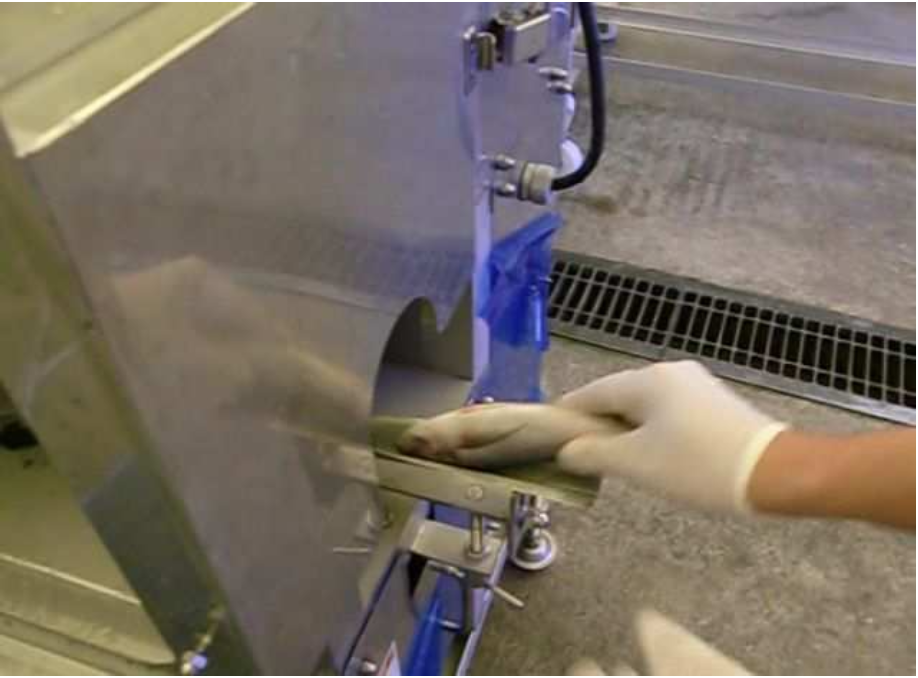

1. Lightly press the horse mackerel with its back down into the machine.

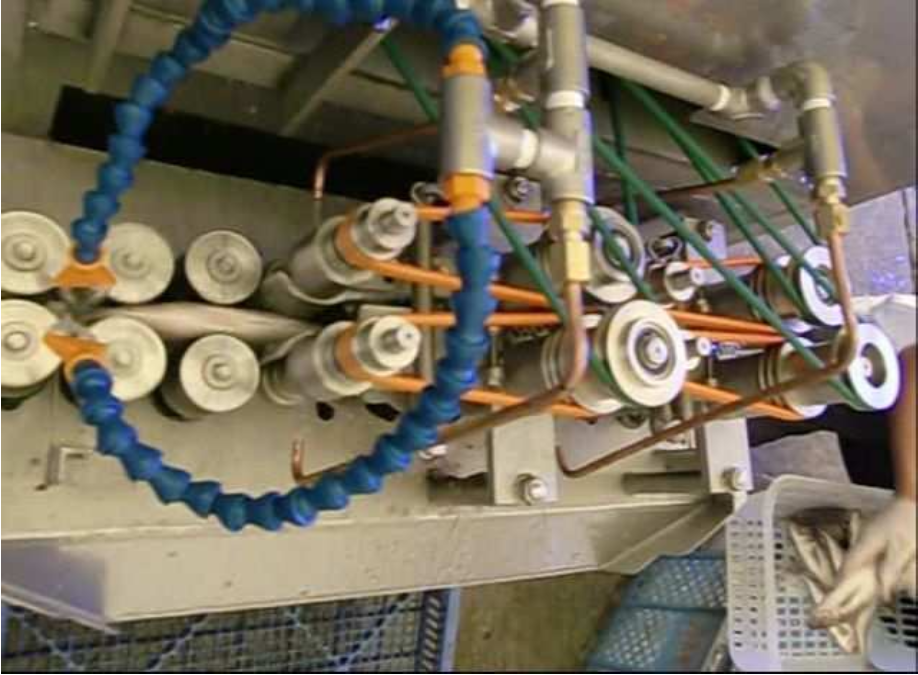

2. The fish passes through as if it's swimming.

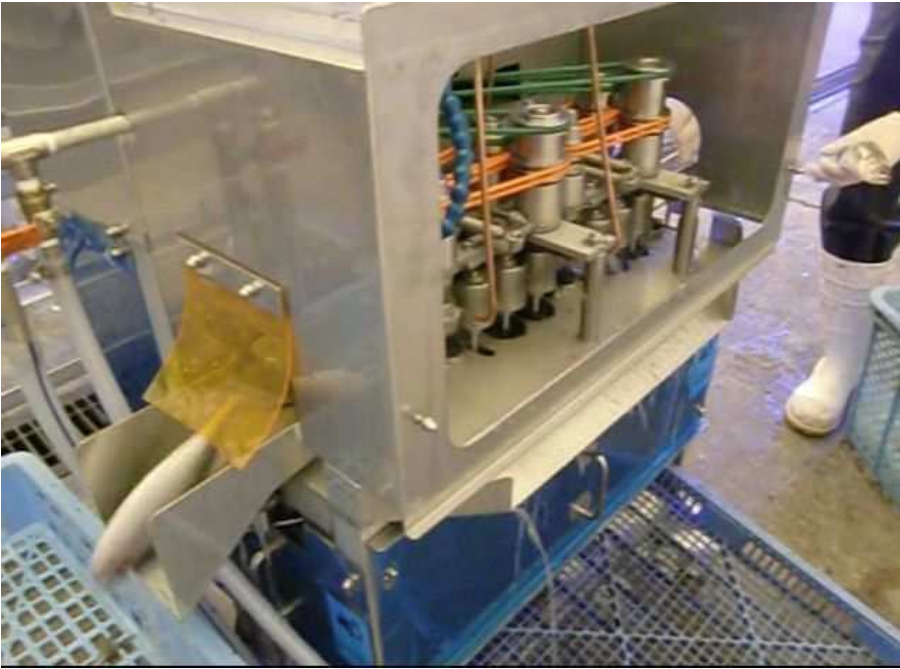

3. The processed fish comes out of the outlet.

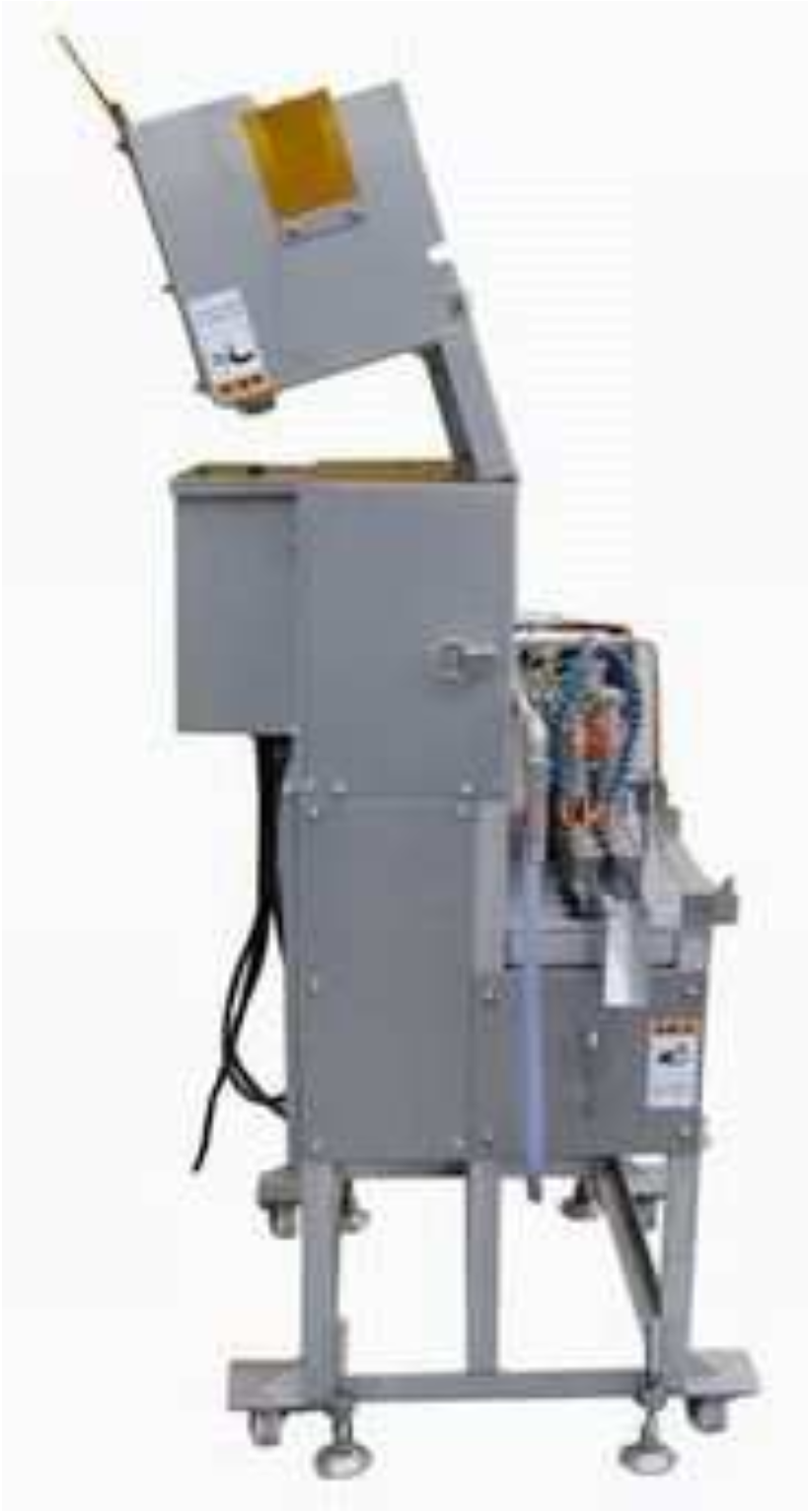

With the front cover raised

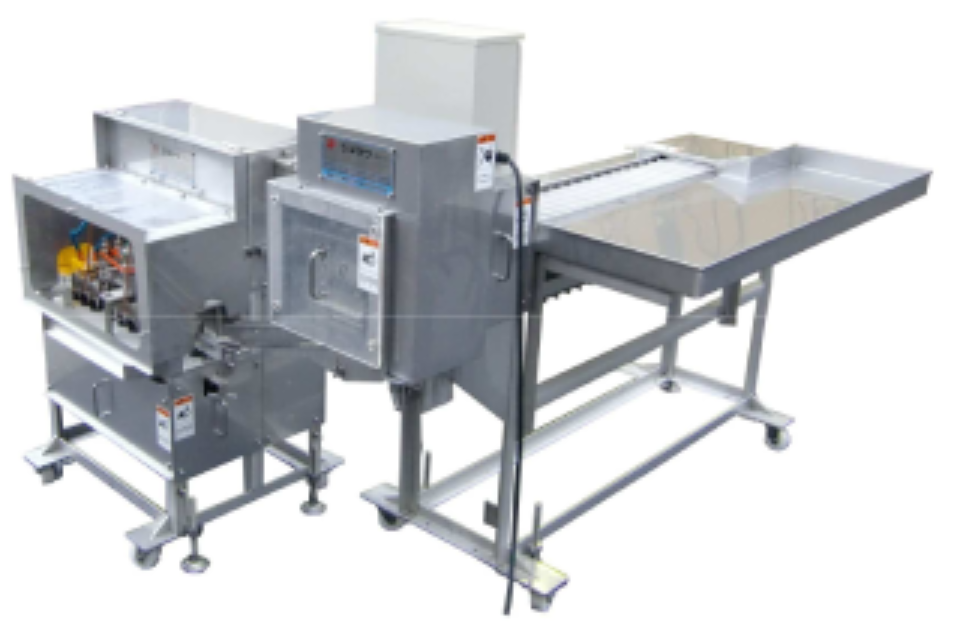

Connected to the feeding machine


Connected to the butterfly filleting machine
