Customizable according to the number of workers and work processes.
Available in multi-level configurations and with a variety of optional features.
Available in multi-level configurations and with a variety of optional features.
Key Features
- ●Equipped with a cutting board, convenient for finishing work after opening or three-piece filleting.
- ●Flexible design supports from a single worker to large groups.
- ● Optional features such as shower systems and vacuum devices for gut removal.
- ●Easy-to-remove belt with a tip that lifts up.
- ●Effective use of space with two- or three-tiered configurations.
- ●Roller conveyors and models with chutes are also popular.
- ● Available in various types: inclined, spiral, net-washing, and shuttle types.

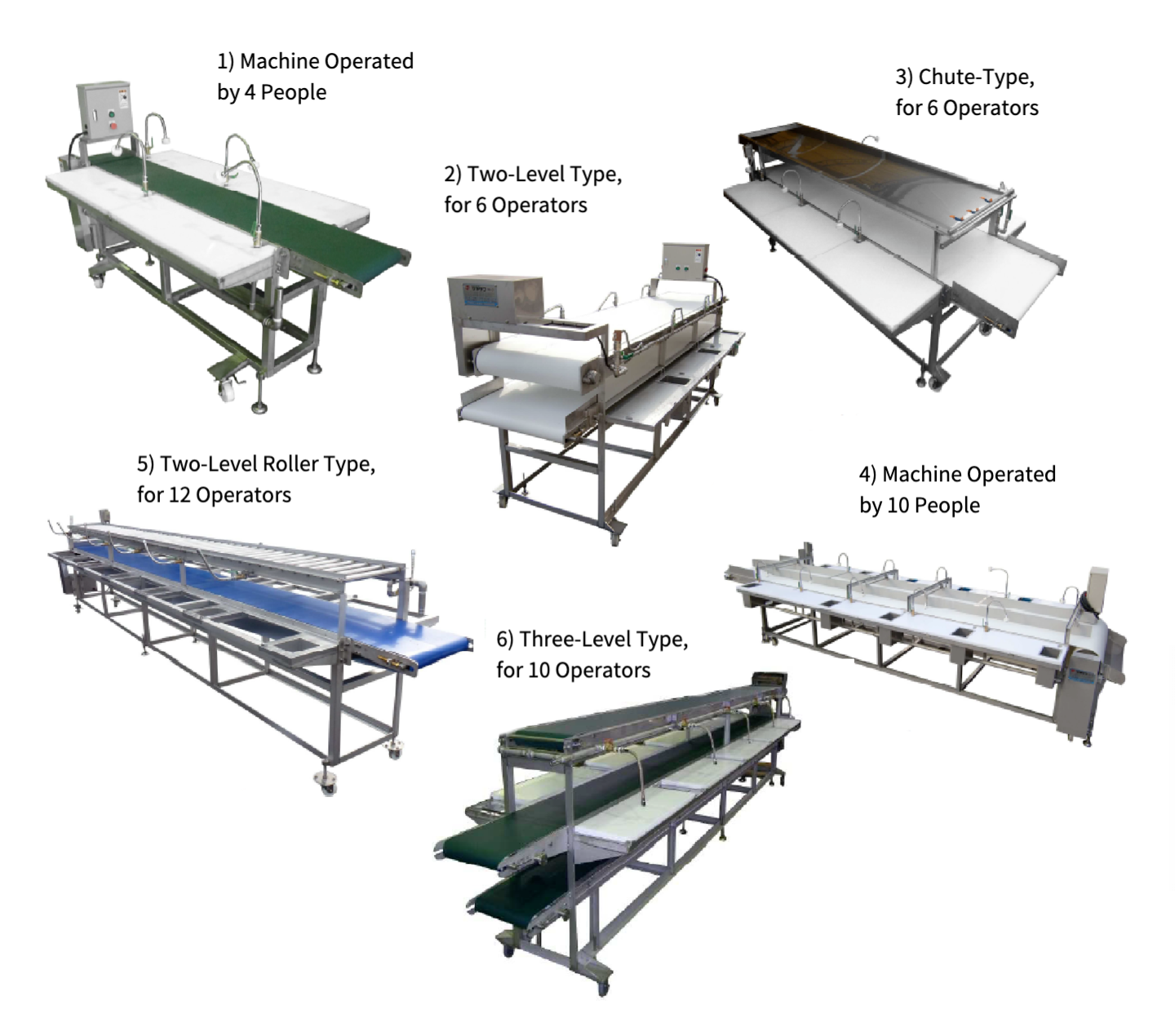

Machine specifications list
| number | name | Number of people | L | W | H | Belt width | electric power |
|---|---|---|---|---|---|---|---|
| ① | Forming | 4 people | 2300 | 920 | 1310 | 300 | 0.4kW × 1 unit |
| ② | With chute | 6 people | 4700 | 1650 | 1100 | 700 | 0.75kW ×1 unit |
| ③ | Two-tier | 6 people | 4600 | 1600 | 1200 | 700 | 0.4kW ×2 units |
| ④ | Forming | 10 people | 5075 | 1602 | 1500 | 900 | 0.75kW × 1 unit |
| ⑤ | Two-tier roller type | 12 people | 5700 | 1200 | 1100 | 400 | 0.4kW × 1 unit |
| ⑥ | Three-tier | 10 people | 6000 | 1034 | 1250 | 350 | 0.4kW × 3 units |

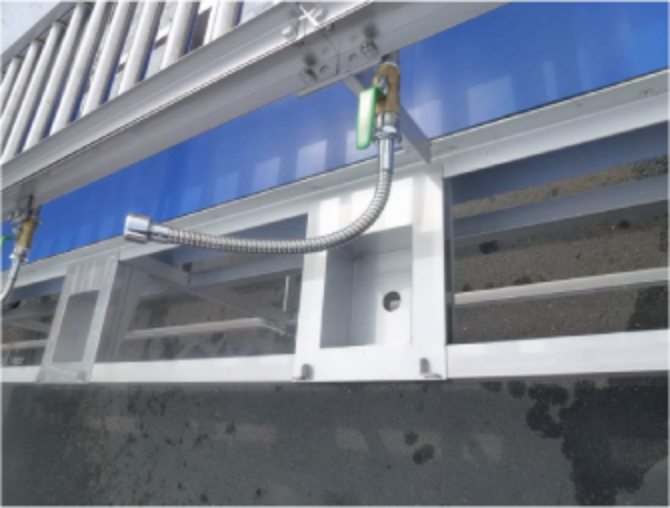

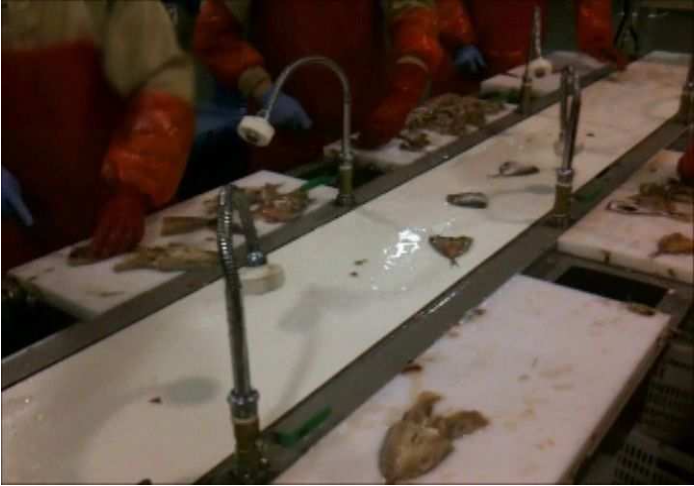

Dedicated Showers for Each Worker

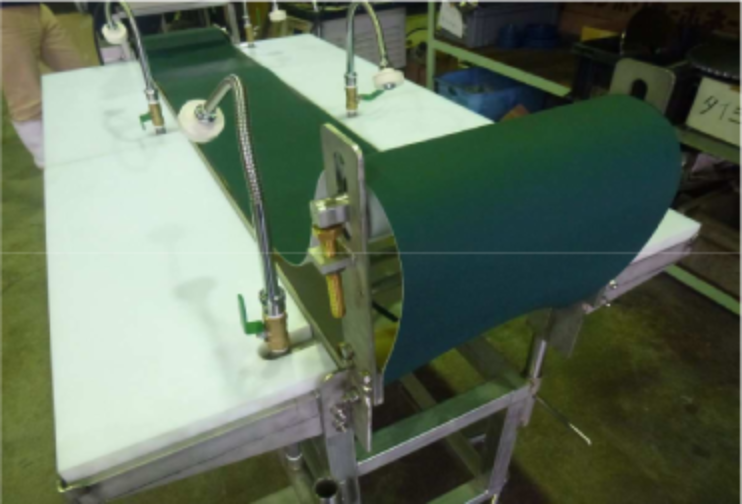

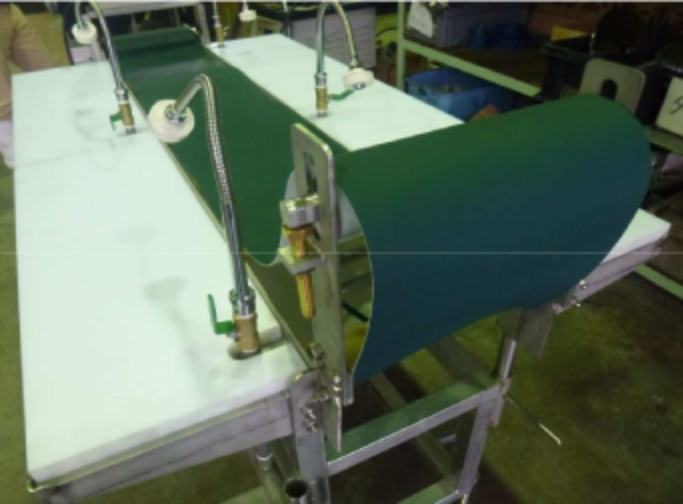

Easy Belt Installation with Lifting-End Structure

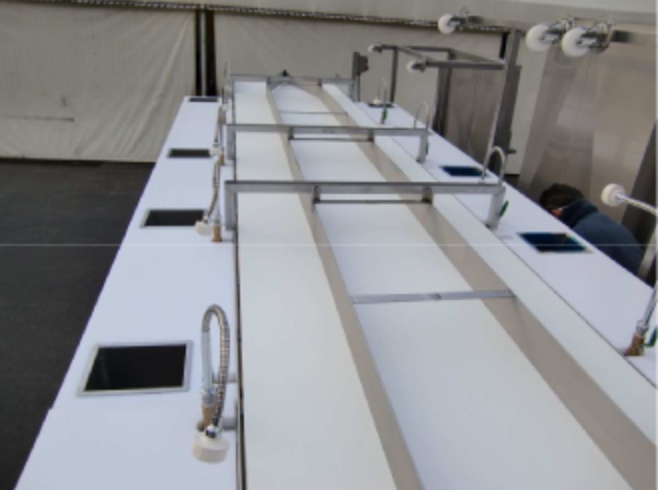

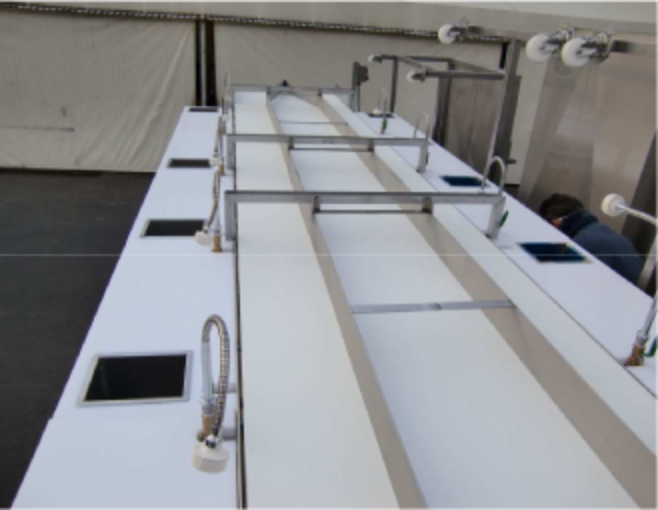

10-Person Conveyor (Front View)

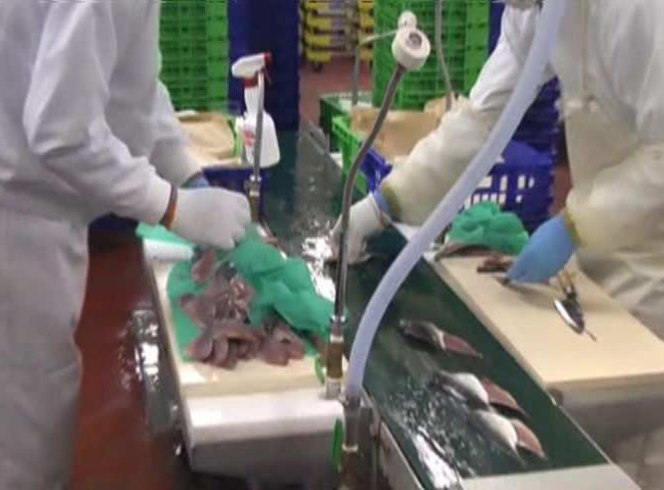

Work Scene 1
Work Scene 2

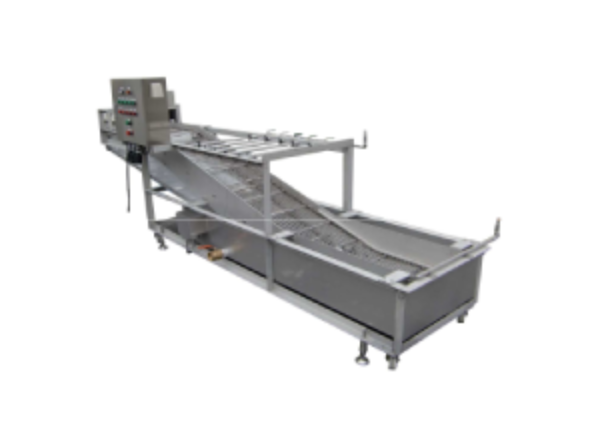

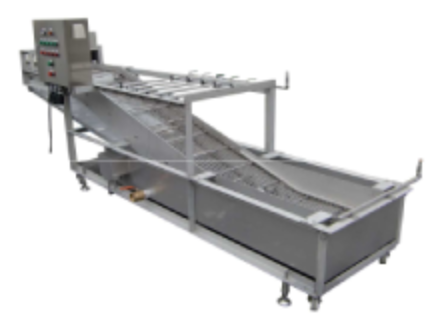

Cleaning Net Conveyor
Inclined Conveyor with Hopper
出口シュート部分
