Vacuum-Type Gutting Machine



  • This machine efficiently removes internal organs using a vacuum system, completing the process without damaging the fish body.

It provides a clean and hygienic working environment and features a design that is easy to clean.

Sample: Red Sea Bream (Madai)


Sample: Yellowtail (Hamachi)



Key Features

  • ●Vacuum suction via nozzle ensures a clean finish without damaging the fish body
  • ●Removed internal organs are collected in a tank, keeping the facility clean
  • ●Equipped with two nozzles, allowing two-person operation
  • ●Hygienic nozzle and hose design for easy cleaning
  • ●Detachable nozzles can be replaced for small fish
  • ●A version with fixed nozzles is also available

Specifications

  • ●Processing Method: Suction using handheld nozzles
  • ●Power Requirement: 7.5 kW
  • ●Machine Dimensions: L 2200 × W 800 × H 1900 (mm)
  • ●Applicable Fish Types: Yellowtail, Amberjack, Japanese Amberjack, Sea Bream, and others

Processing Flow (Yellowtail Test Report)

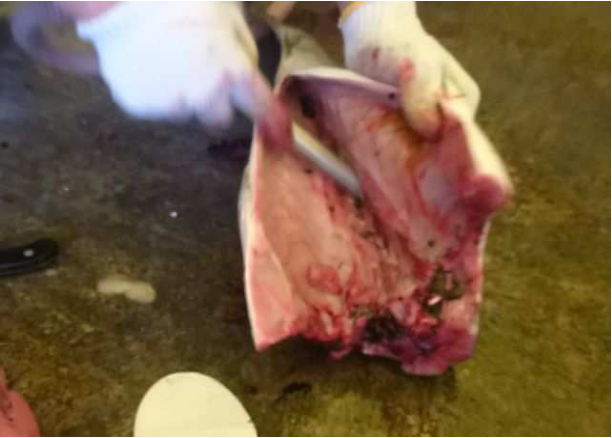

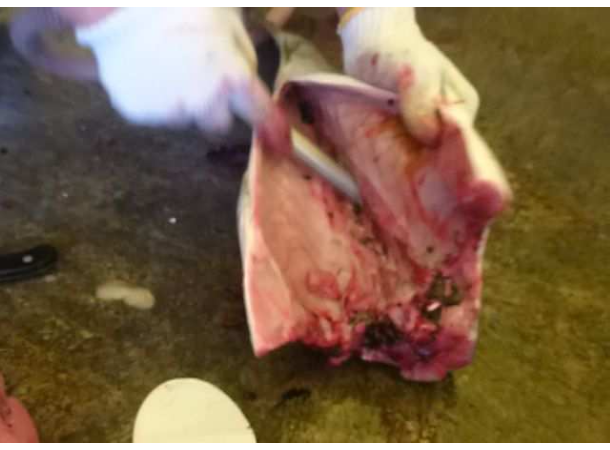

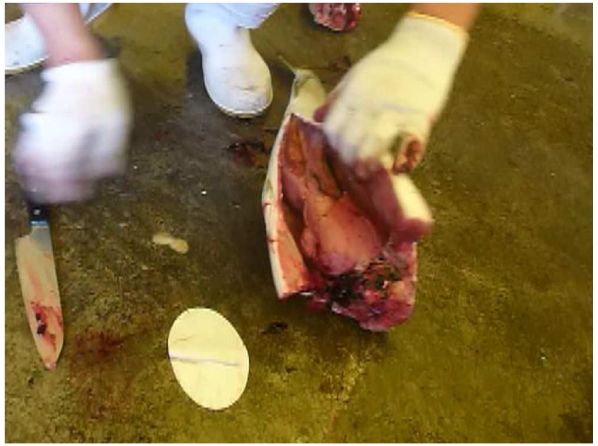

1. Large internal organs

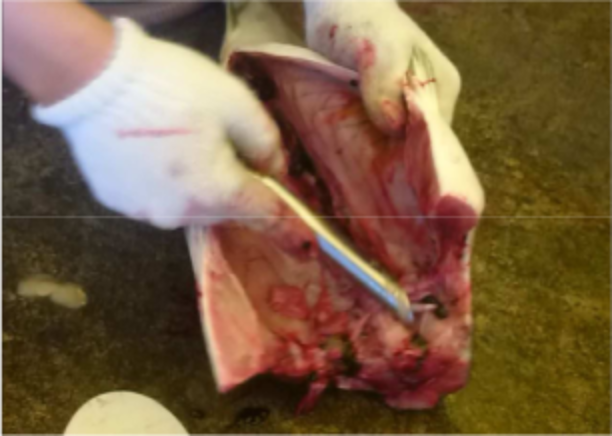

2. Apply the nozzle to the organs and suction powerfully.

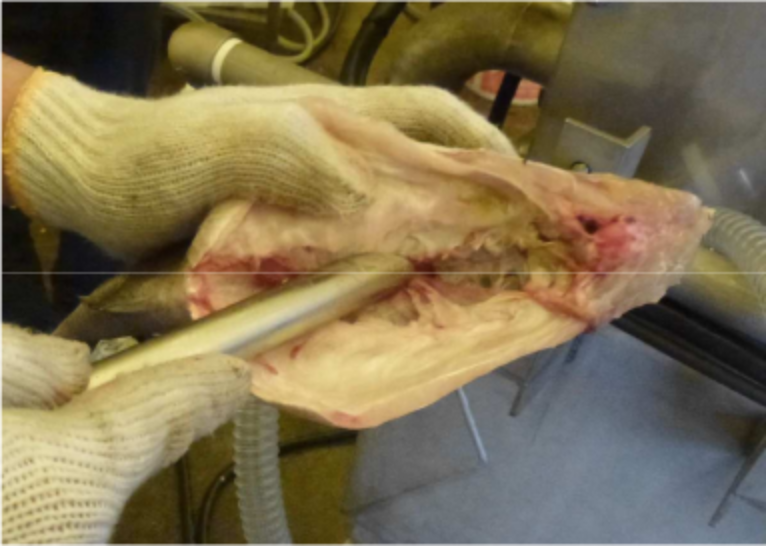

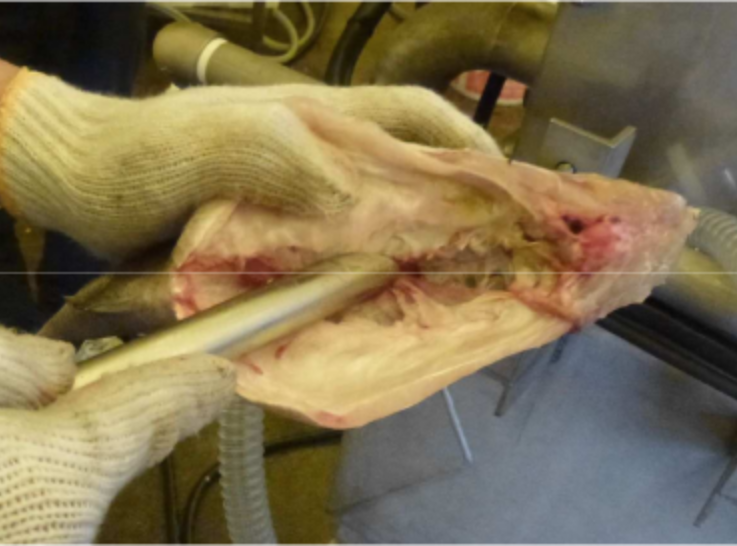

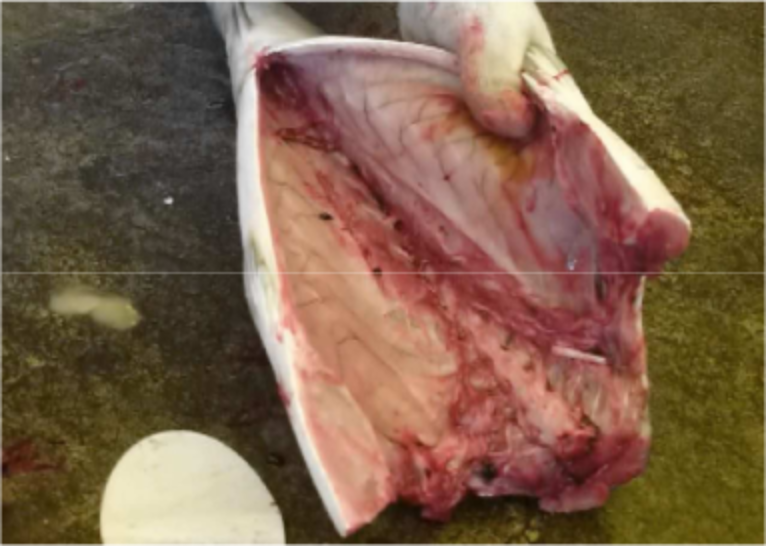

3. Cleanly remove the bloodlines as well.

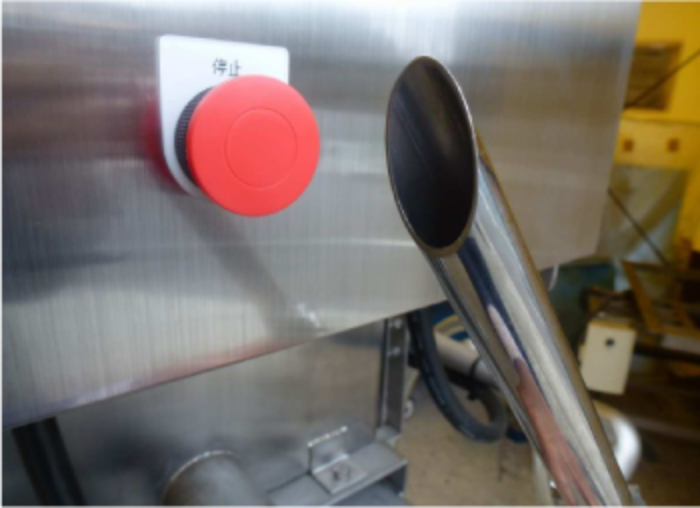

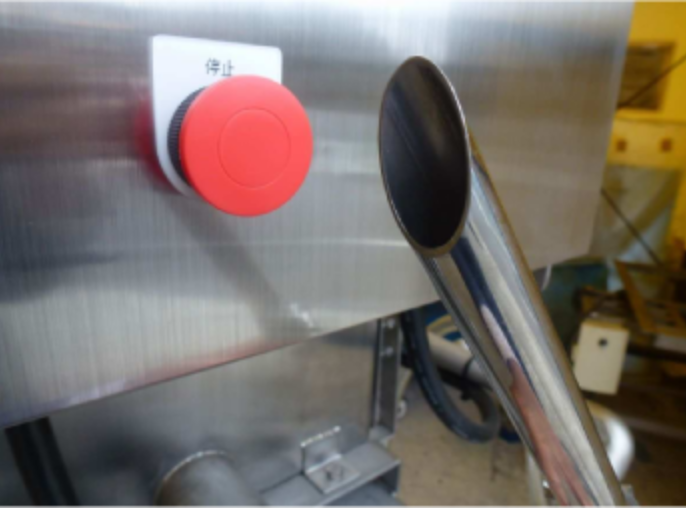

Nozzle Tip

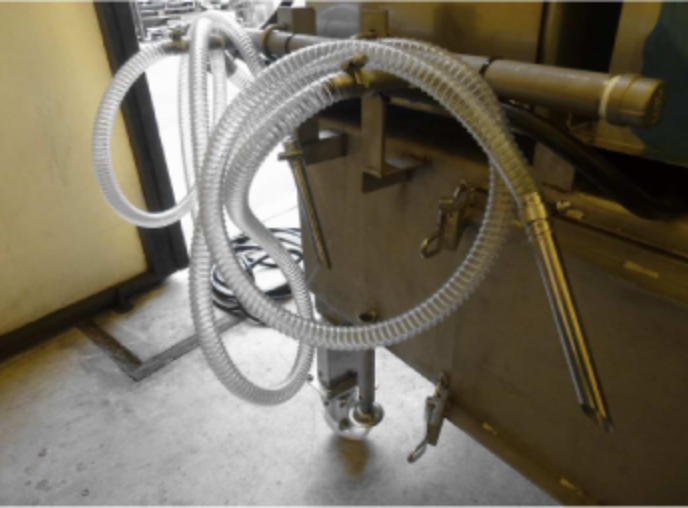

Two Nozzles

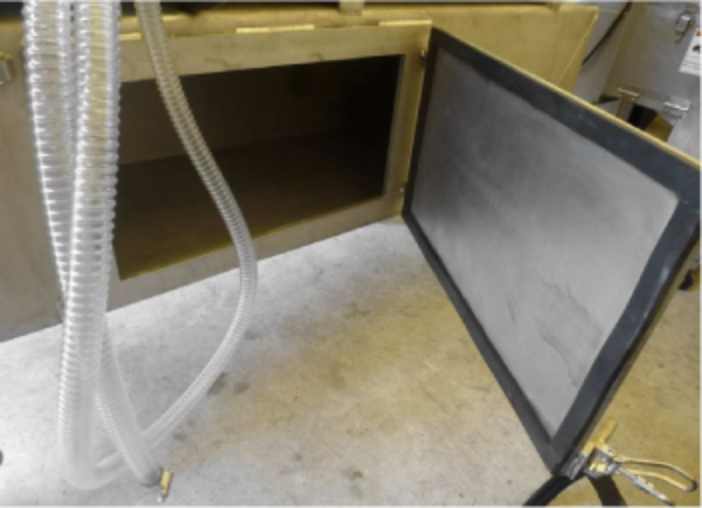

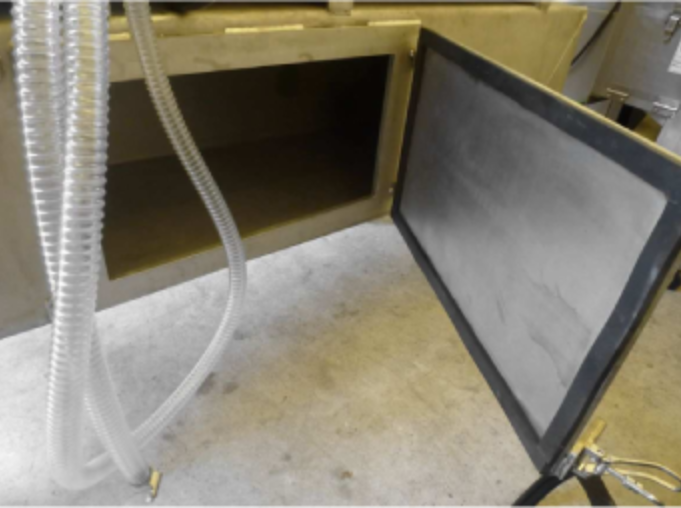

Waste Discharge Door

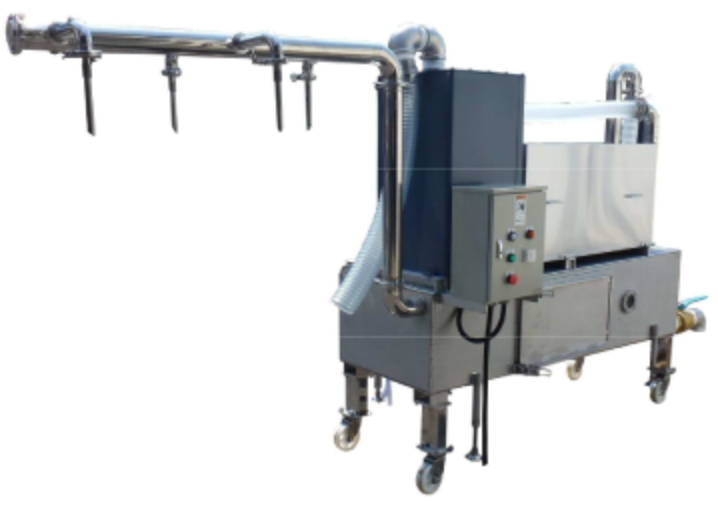

Fixed Nozzle Type
