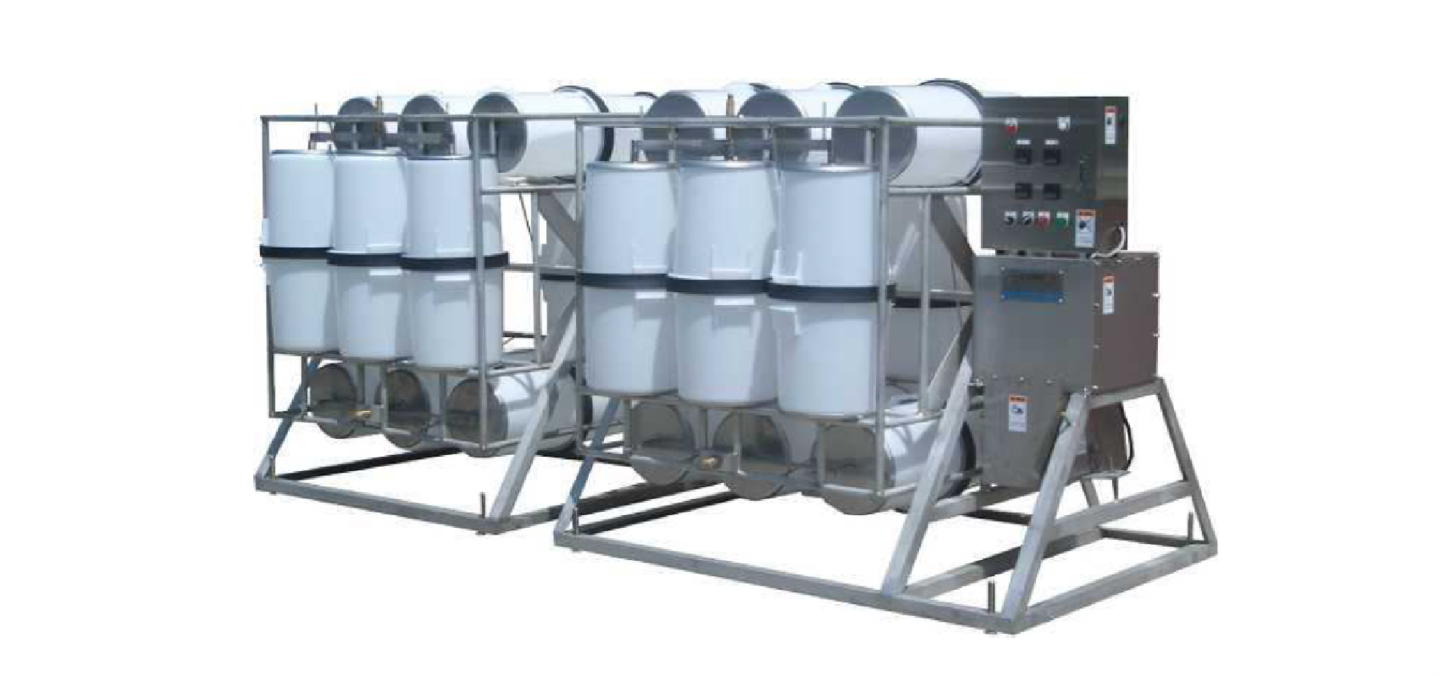

It is motor-driven for stable rotation, capable of handling up to 900 kg.
Key Features
- ● Up to two auxiliary units can be connected to a single main unit
- ● The barrel is detachable for easy cleaning and sterilization
- ● Stable operation through motor drive and belt transmission
- ● Brass spindle prevents seizing with the nut
- ● Universal joint can be selected from stainless steel or iron
- ● Barrel packing made of butyl rubber offers excellent chemical resistance
- ● Main body is made of highly durable stainless steel 304
- ● Timer available in either analog or digital format
- ● Simple structure ensures minimal malfunction and safe usage
Specifications
- ● Required power supply: Three-phase 200V
- ● Power consumption: 1.5 kW

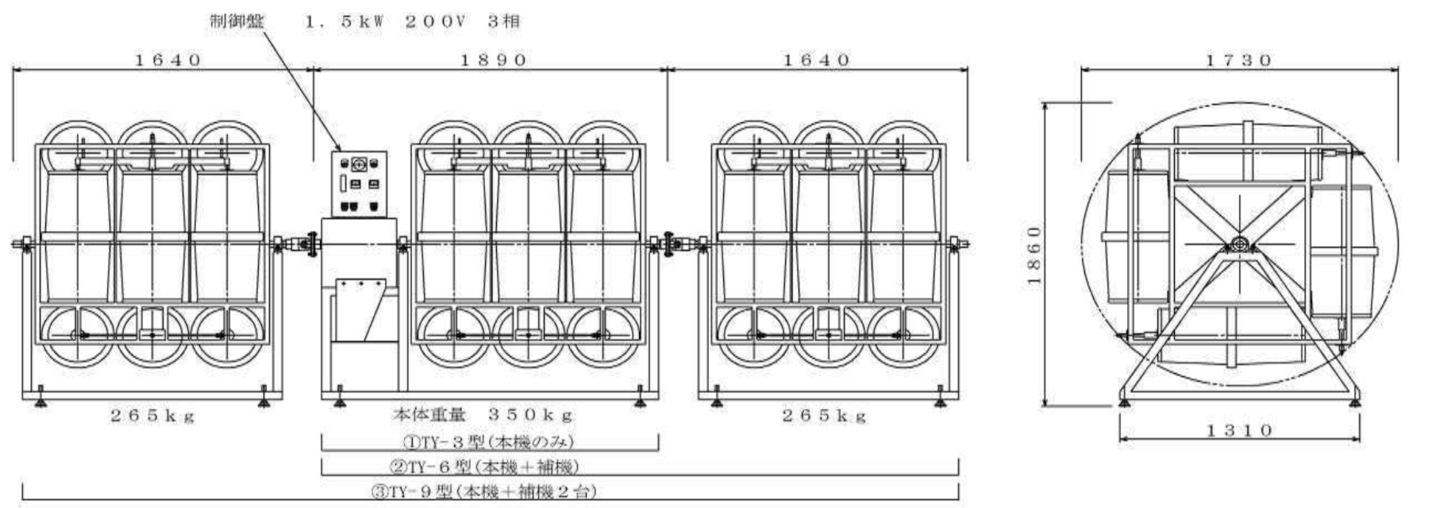

- ● Processing capacity: Approx. 300 kg (TY-3)
Approx. 600 kg (TY-6: main + 1 auxiliary unit)
Approx. 900 kg (TY-9: main + 2 auxiliary units) - ● Materials: Stainless steel 304 (main body), Brass (spindle), Butyl rubber (barrelpacking)
- ● Timer: Analog or digital
