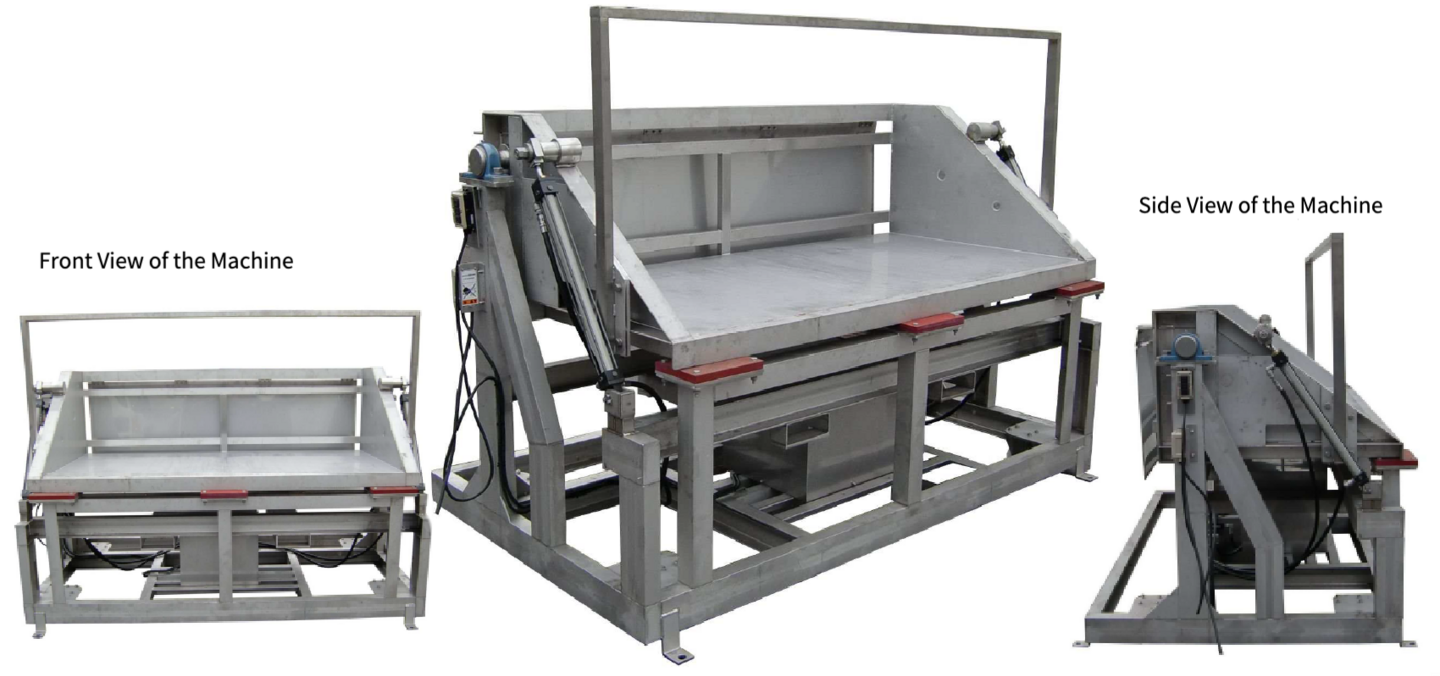

Inverter Machine



  • This machine is hydraulically operated and excels in smooth operation and quiet performance.

It streamlines raw material supply from the Sky Tank and supports the production process.

Key Features

  • ● Set the Sky Tank and supply raw materials while rotating it
  • ● Enables efficient transfer to tables, conveyors, etc.
  • ● Smooth and quiet operation with hydraulic system
  • ● Further efficiency achieved by linking with other equipment such as roller sorters

Specifications

  • ● Power: 0.75 kW × 1 unit
  • ● Drive system: Hydraulic
  • ● Processing capacity: Approximately 10 mackerel/sea bream per minute, 5 yellowtail per minute
  • ● Machine dimensions: L1500 × W2400 × H1850 (mm)
  • ● Compatible container: Sky Tank

Inverter Machine Test (Demonstration Report)

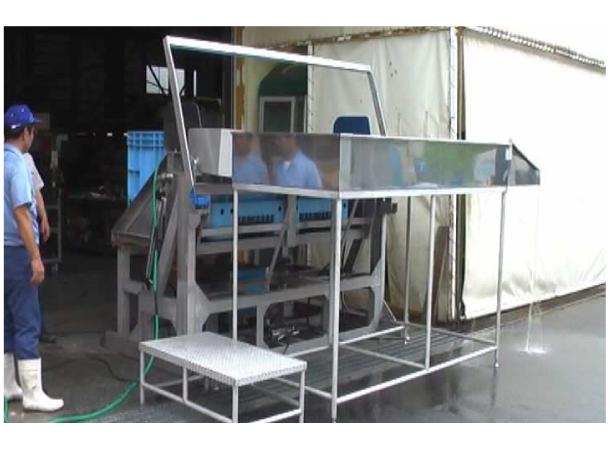

1. Operating the machine with the remote control while checking its movement.

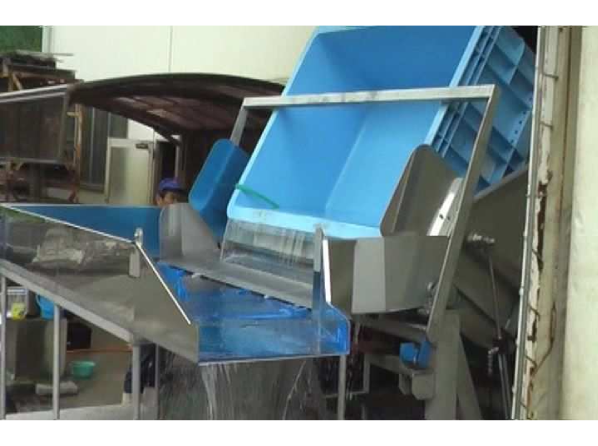

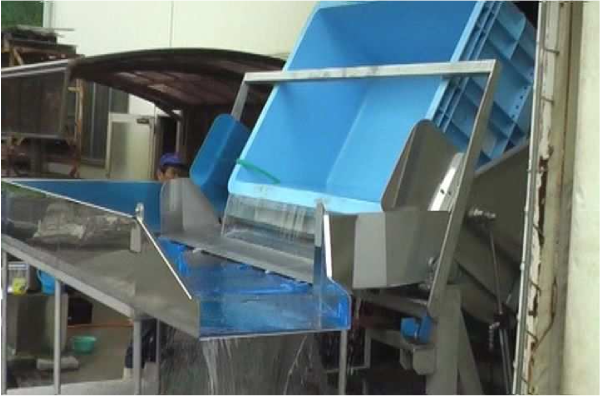

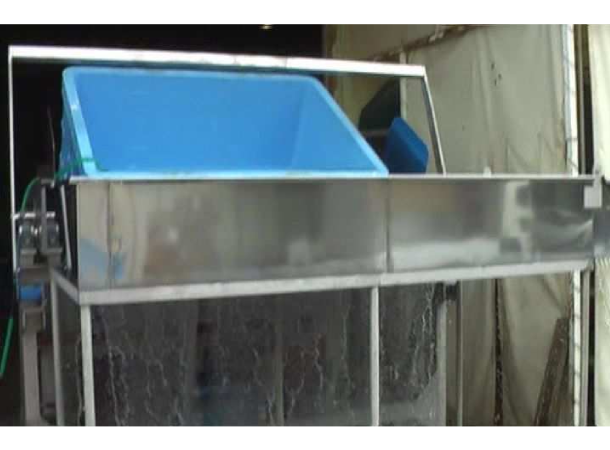

2. Water flows out powerfully as the blue container tilts upright.


3. All raw materials and water inside the container are discharged onto the table.

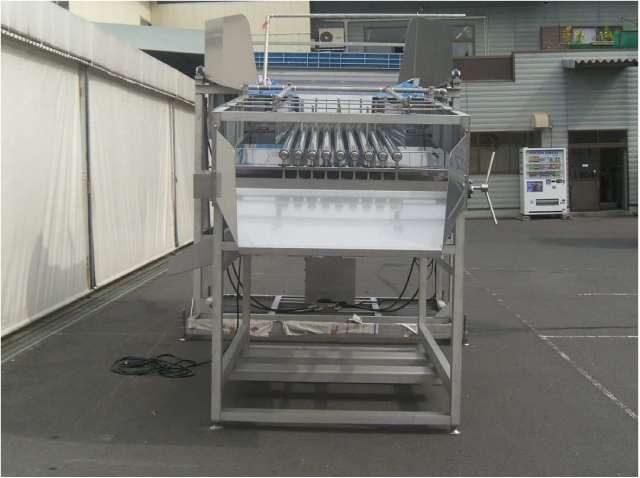

Linked with Roller Sorter 1

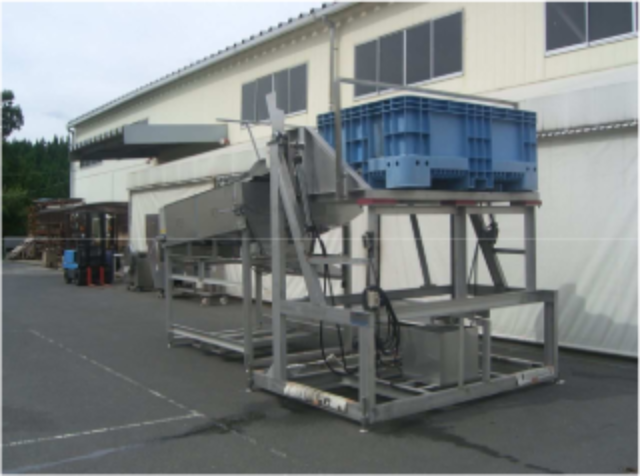

Linked with Roller Sorter 2

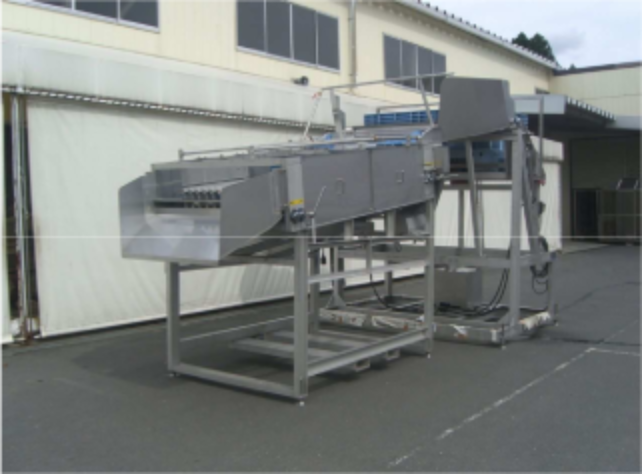

Linked with Roller Sorter 3

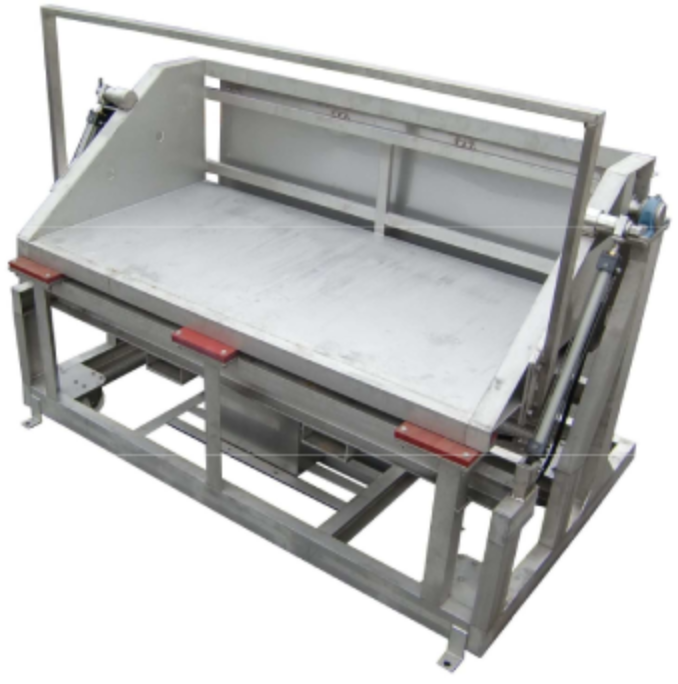

View of the machine from
an elevated angle


2枚の丸刃




出口シュート部分
