Fish Alignment Machine



  • This alignment machine orients the heads of small fish uniformly, achieving both labor saving and space-saving benefits.

It supports smooth feeding to downstream processes such as head cutters.

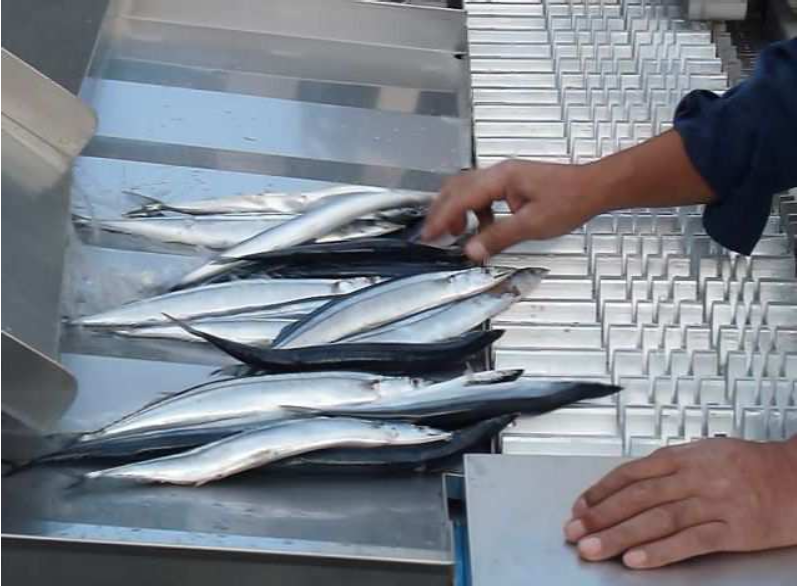

Processing Sample: Pacific Saury 1

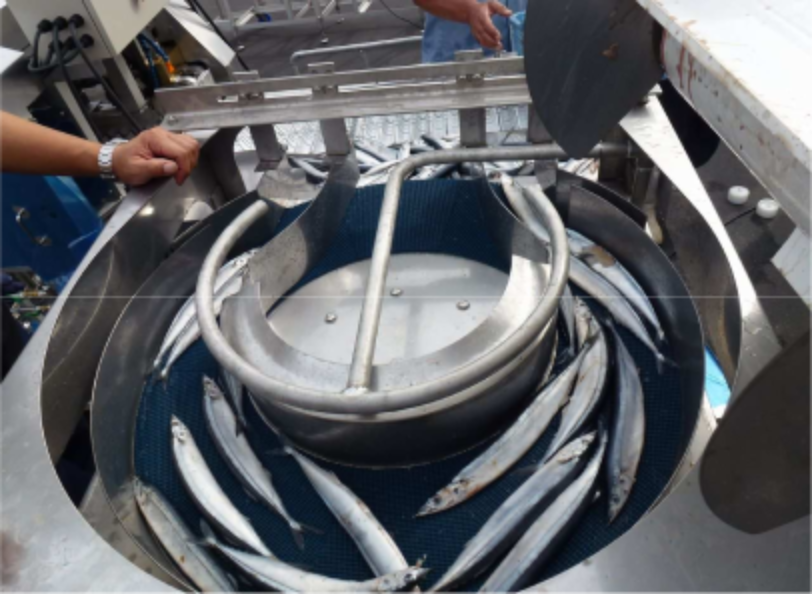

Processing Sample: Pacific Saury 2



Key Features

  • ● Automatically aligns small fish heads in two directions
  • ● Space-saving design improves workplace efficiency
  • ● Ideal for upstream processes such as head cutters
  • ● Vibration-based system enables high-speed, high-volume feeding
  • ● Compatible with various fish species, including saury and horse mackerel

Specifications

  • ● Processing Method: Vibration Type
  • ● Power Consumption: 0.75 kW
  • ● Machine Dimensions: L850 × W1100 × H1870 (mm)
  • ● Compatible Fish Species: Pacific saury, horse mackerel, etc.

Processing Flow (Horse Mackerel Demonstration Report)

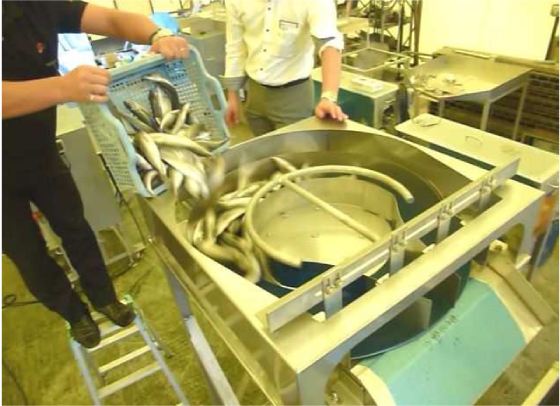

1. Raw materials are poured into the machine.

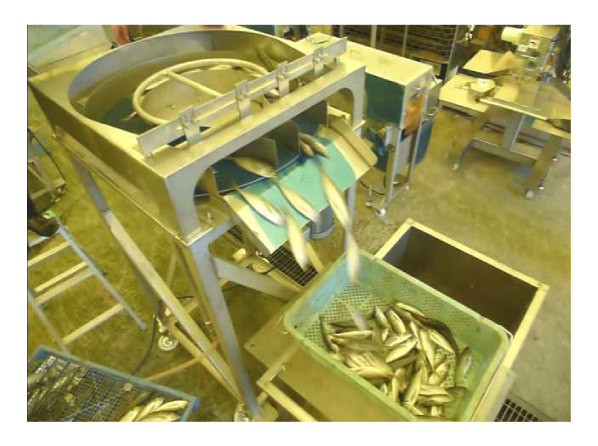

2. The fish move forward while vibrating, heading toward the exit chute.


3. Manual correction of fish orientation is not needed.

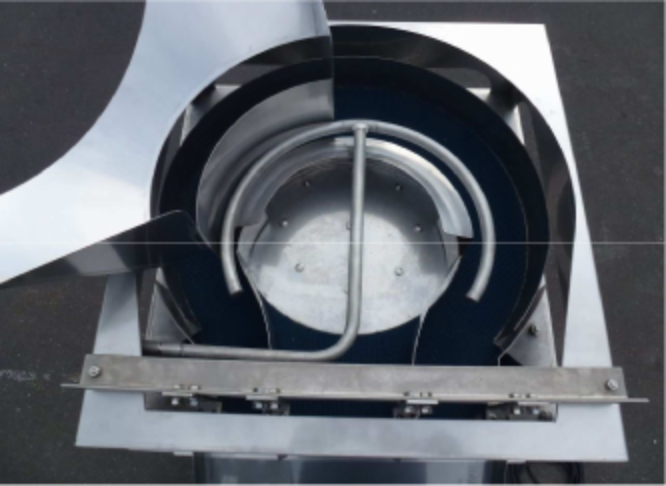

Inlet Area

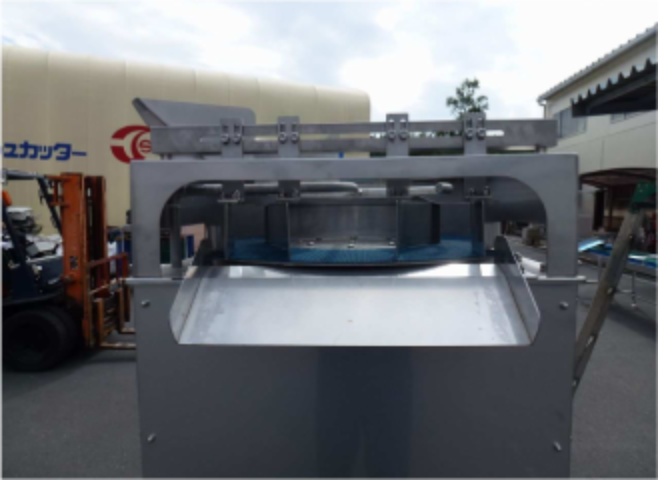

Outlet Chute

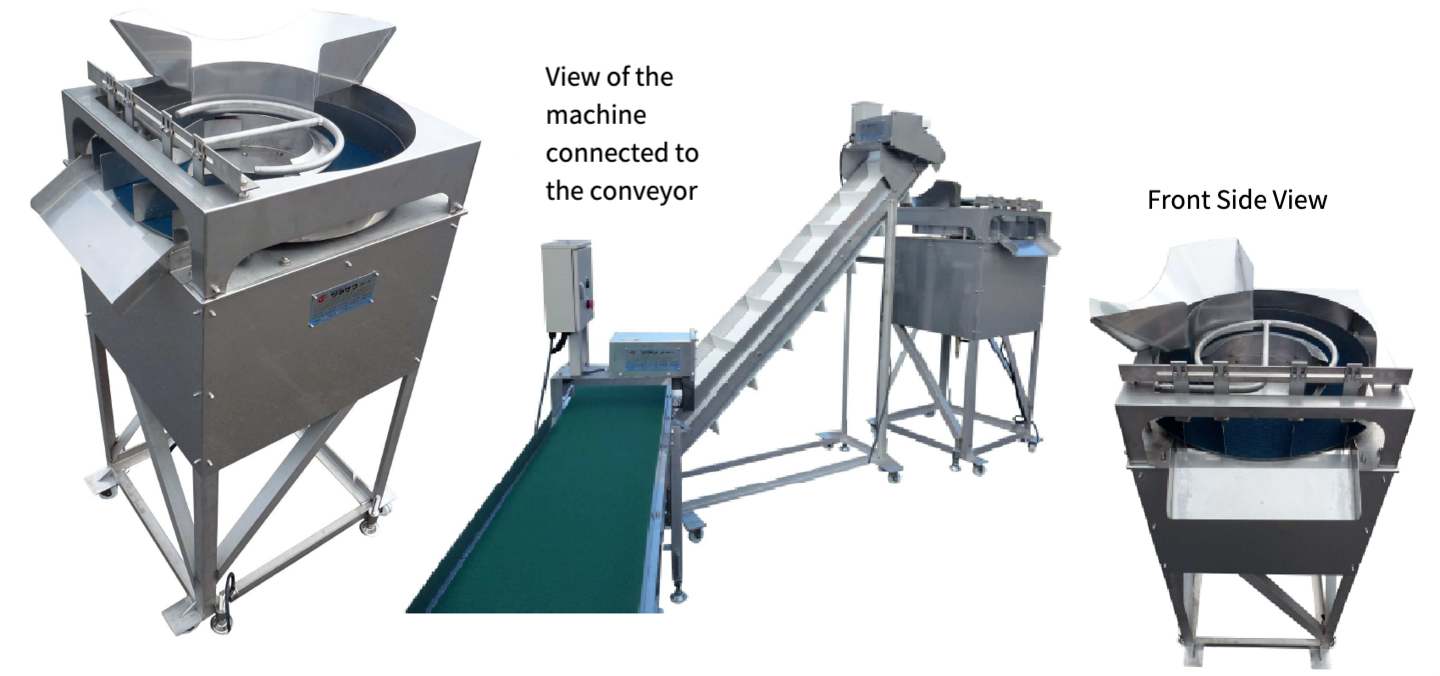

Integrated Type with Conveyor
