V-Shape Sea Bream Head Cutter



  • • This machine is designed to improve yield by cutting the head of sea bream in a V-shape.
    ​• Processing is simple — just place the pectoral fin of the fish on the inlet guide and push it forward.

​Simple operability and high processing precision contribute to improved work efficiency.
This machine can also handle large fish and is used in a variety of processing environments.

Key Features

  • ●A machine that cuts the head of sea bream into a V shape for high yield.
  • ●Place the raw pectoral fin on the entrance guide and push it forward for processing.
  • ● Safety is also taken into consideration with the design, with a safety guard installed to prevent hands from reaching the area where the blade moves up and down.
  • ●Powerful cutting performance that can cut off the tough heads of large fish in one shot.
  • ●Easy to operate, helping to improve work efficiency

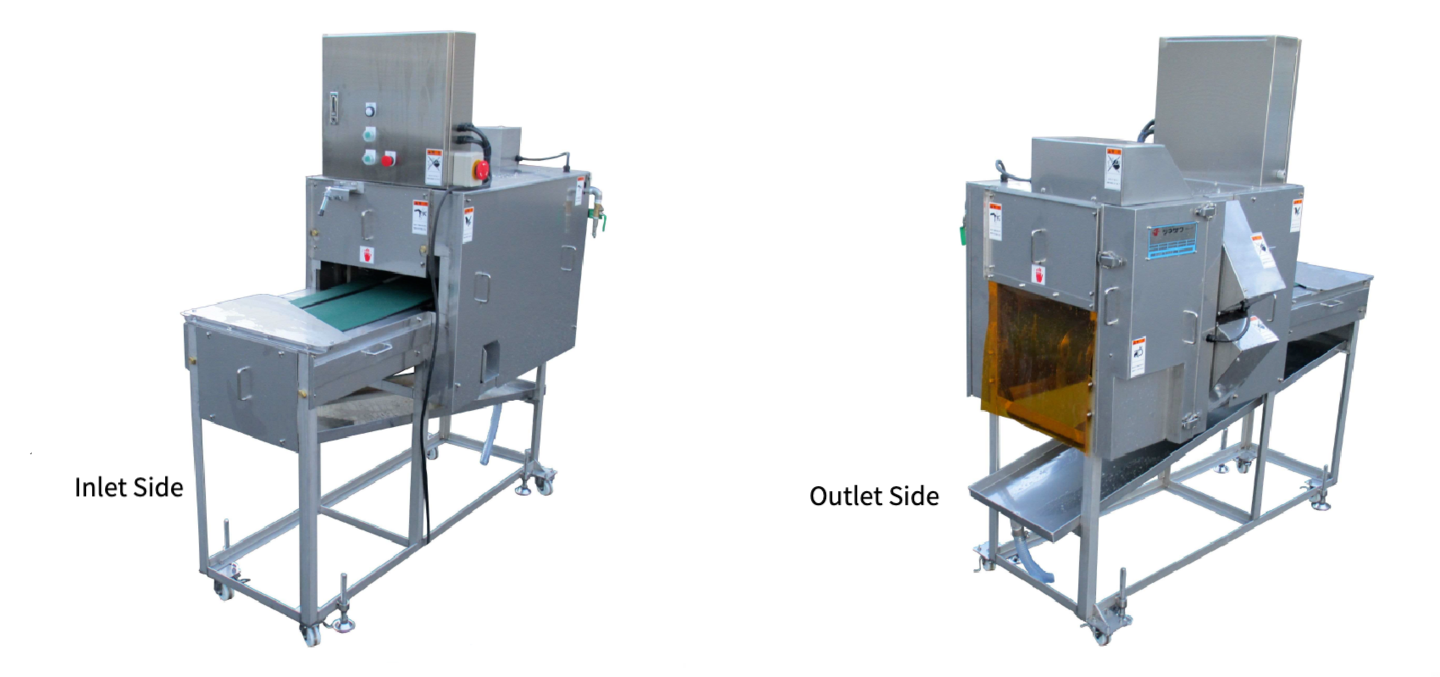

Specifications

  • ●Processing method: 2 circular blades
  • ●Machine dimensions: L2380 x W860 x H1670mm
  • ●Power: 1.2kW (0.4kW x 3 units )
  • ●Processing capacity: Approximately 30 fish per minute
  • ●Suitable fish species: Sea bream

Processing Flow (Sea Bream Processing Report)）

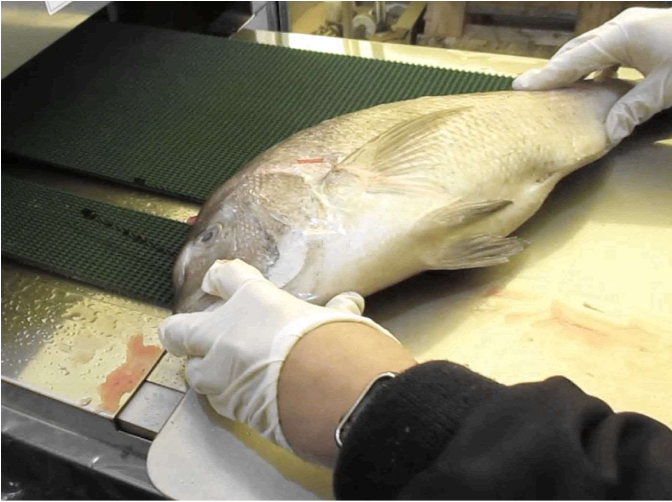

1. The raw materials are placed on the belt.

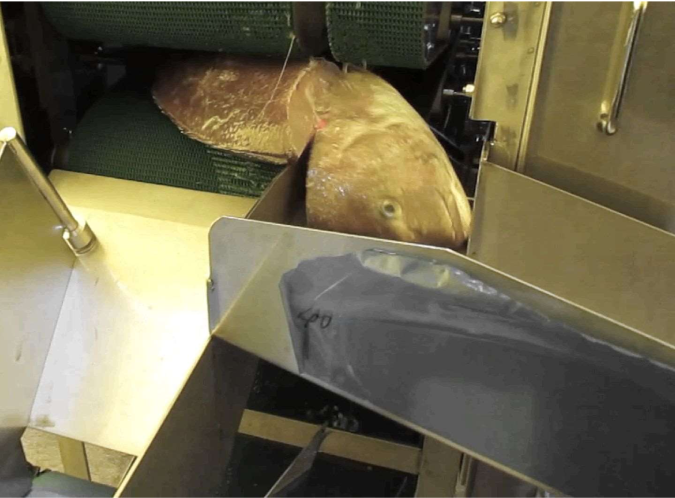

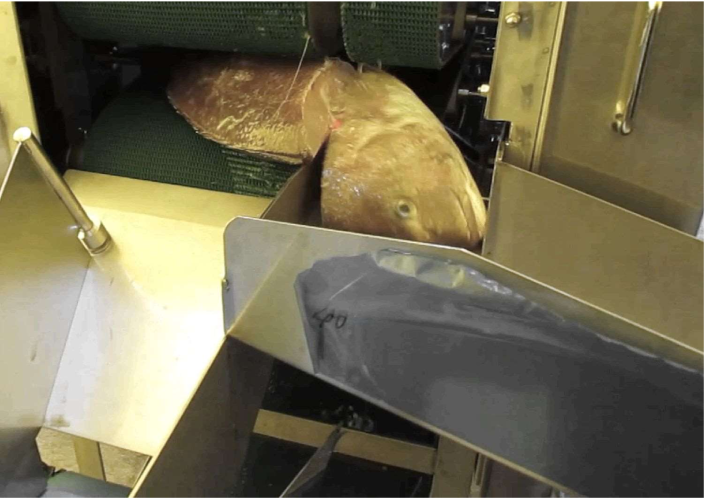

2. The cut heads are sent to the waste chute.

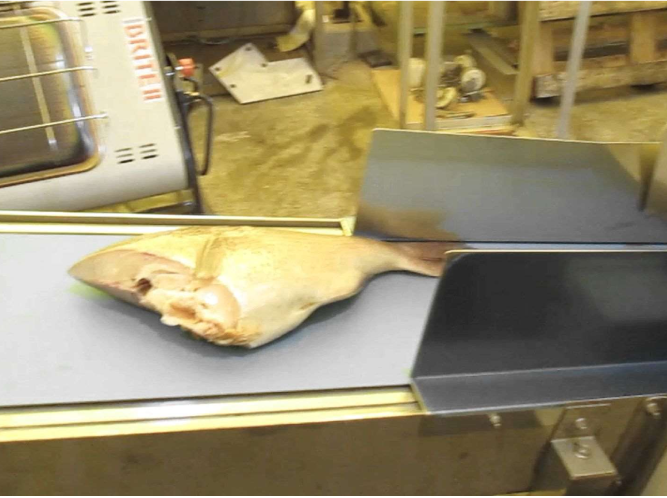

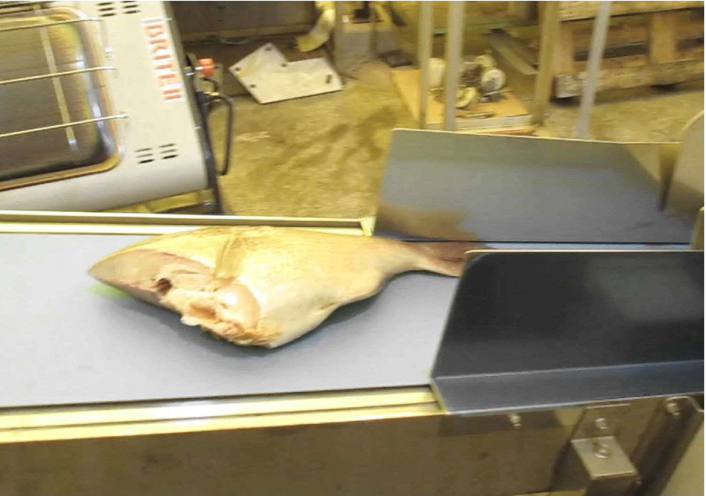

3. Cut with good yield and move on to the next process.
