• This machine cuts the head of raw materials simply by placing them in a rotating bucket. • This is safe as the work is done away from the blade. • The variable speed gear allows you to choose the speed that best suits your task. • The special U- blade ensures good yield and clean cuts.
Simply place the material in the rotating bucket and the head will be cut cleanly.

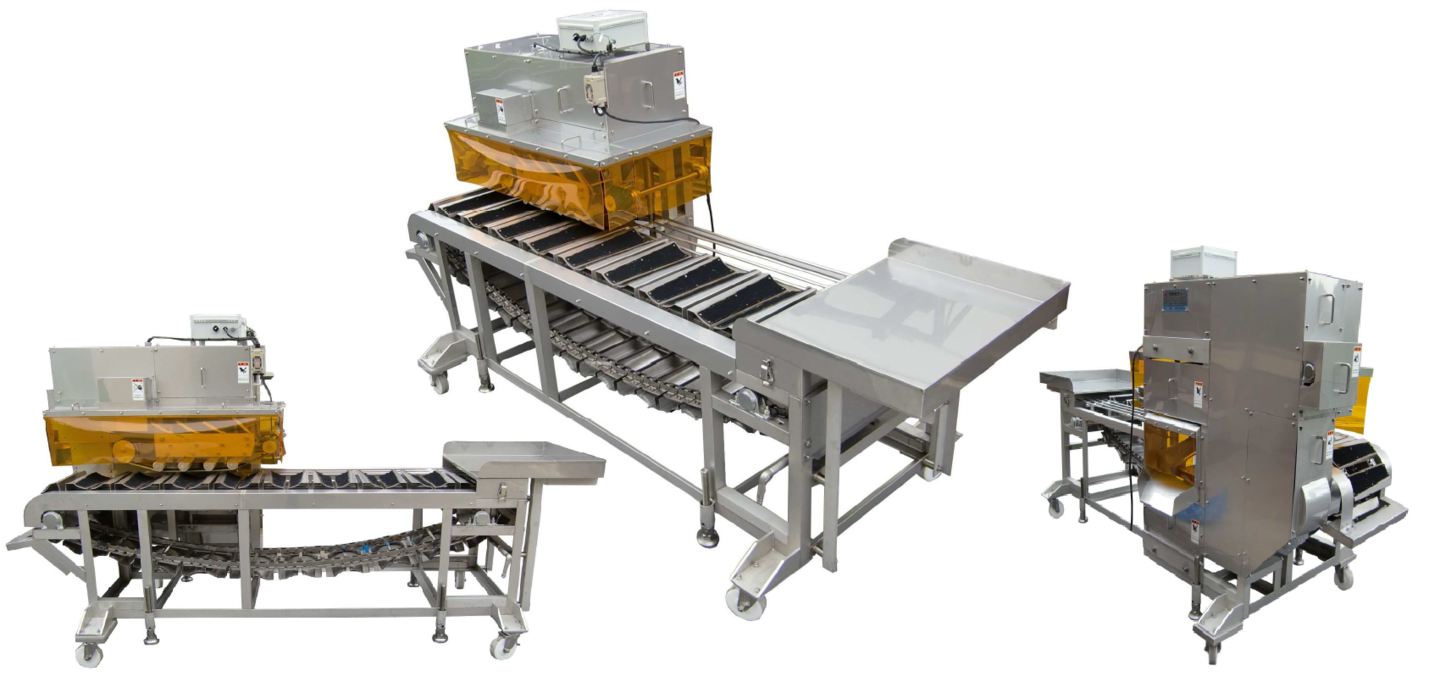

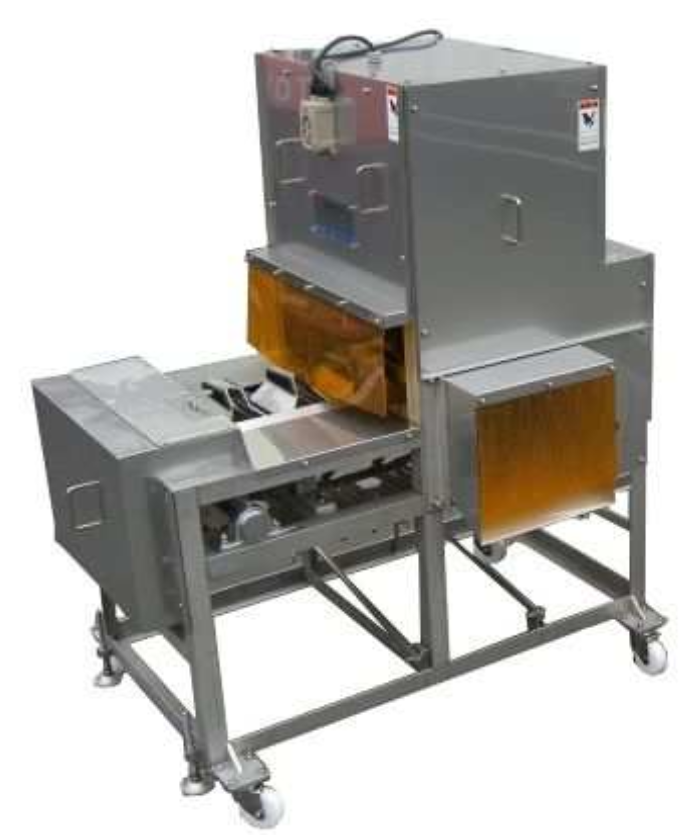

This swing-type head cutter achieves both safety and work efficiency.
Cut sample: Salmon

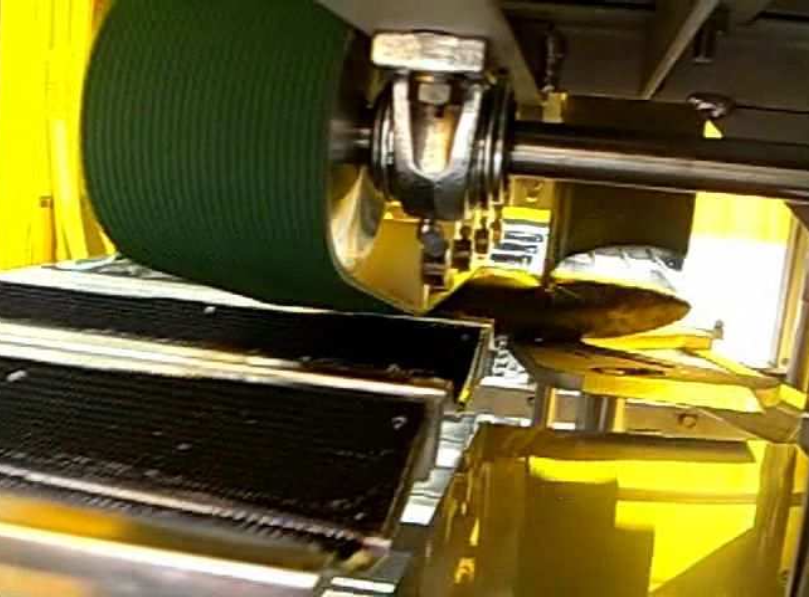

The moment of cutting with the U- blade
Key Features
●Easy operation, just place the materials in the rotating bucket.作
●Safe design that allows the operator to work away from the blade.
●The working speed can be adjusted by the transmission.
●High yield and beautiful cut with special U – blade.
●Bucket length and machine height can be customized.
●We also offer models with round blades for cutting horizontally or cutting for bonito.
Specifications
●Processing capacity: 40 fish per minute
●Power: Three-phase 200V 1.5kW x 1 unit
●Water consumption: 5 liters per minute
●Target fish species: Salmon, Trout
●Machine dimensions: L3100 x W1100 x H1600 mm
●Inlet height: 942 mm / Outlet height: 650 mm
Head Cutter Processing Test (Salmon Processing Report)

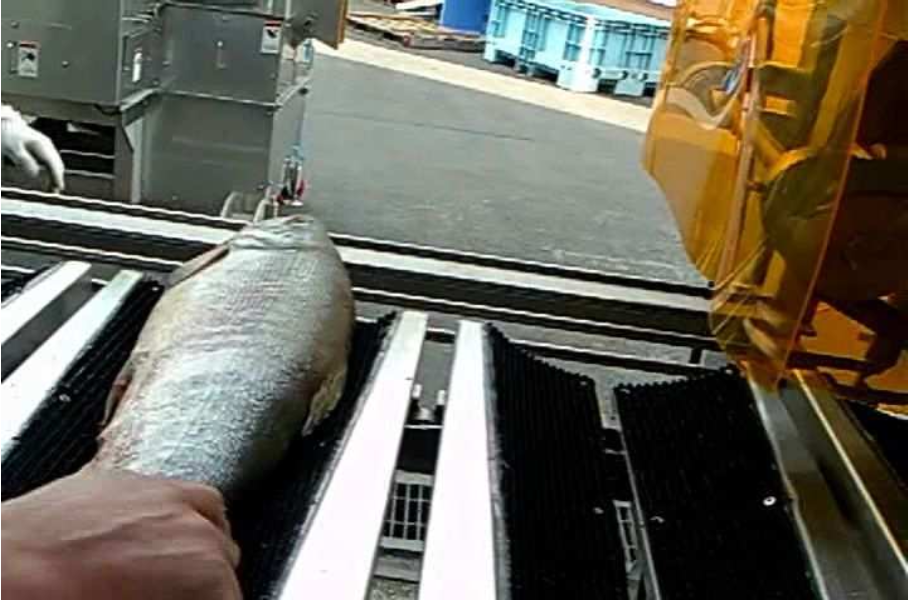

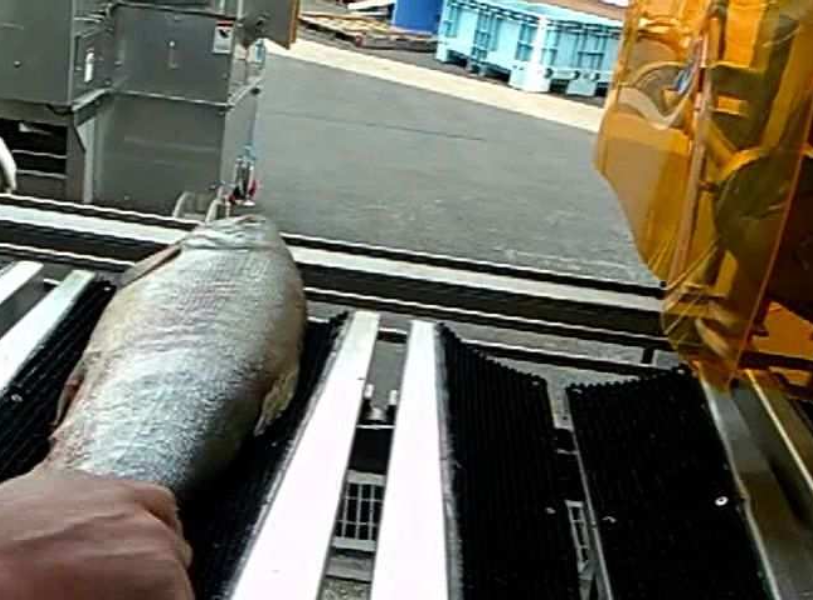

1. Place the materials in the bucket.

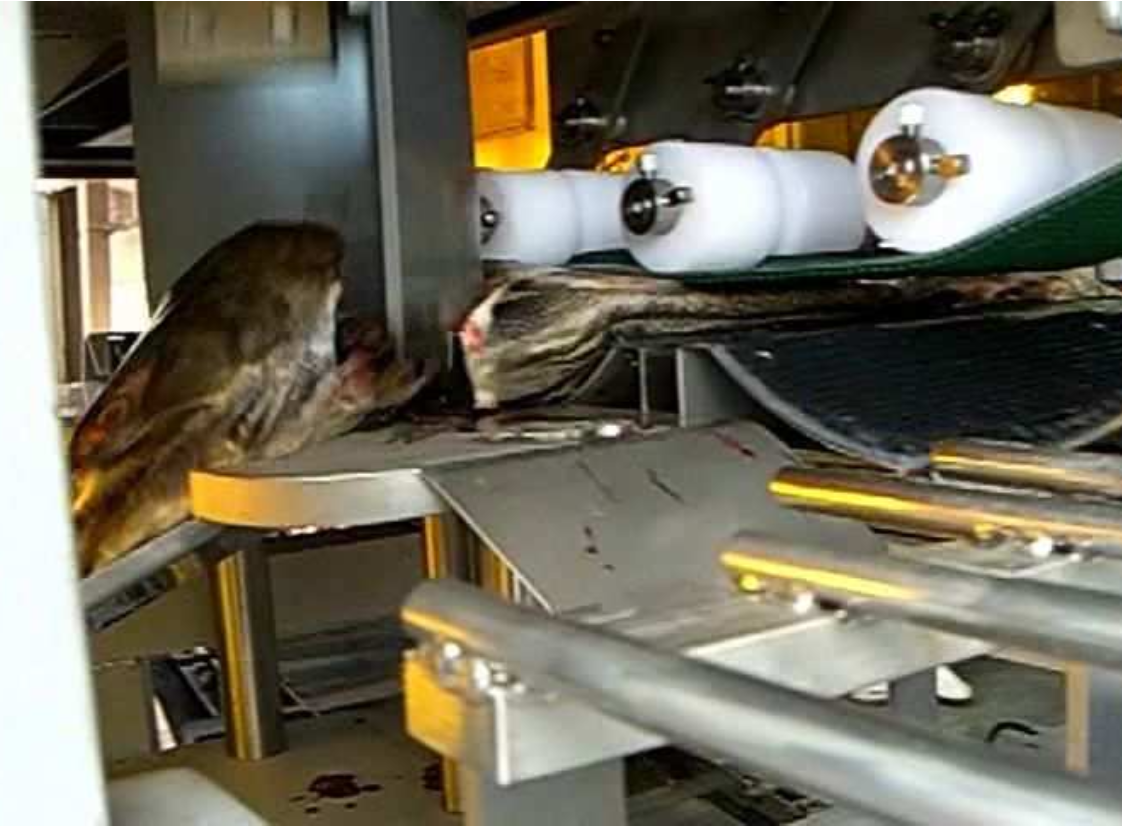

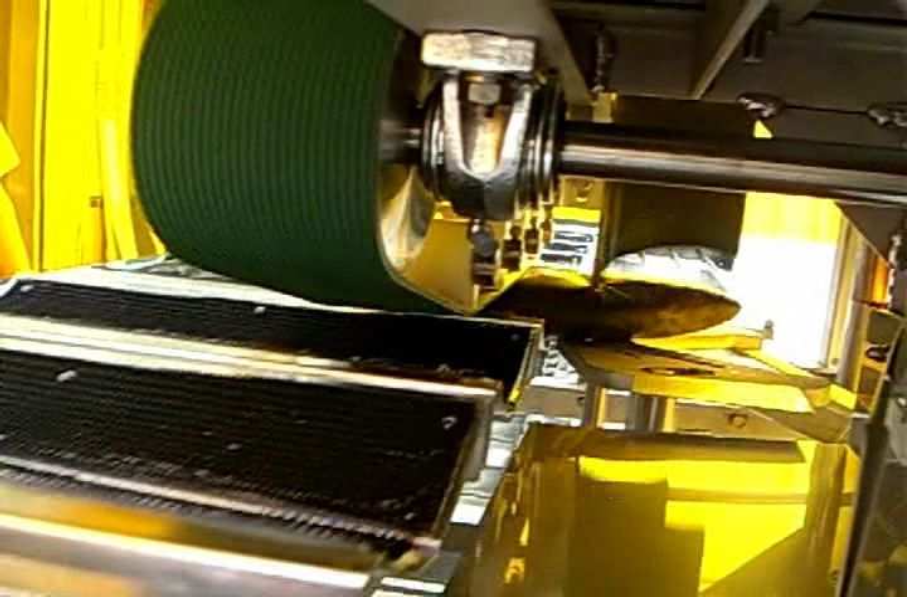

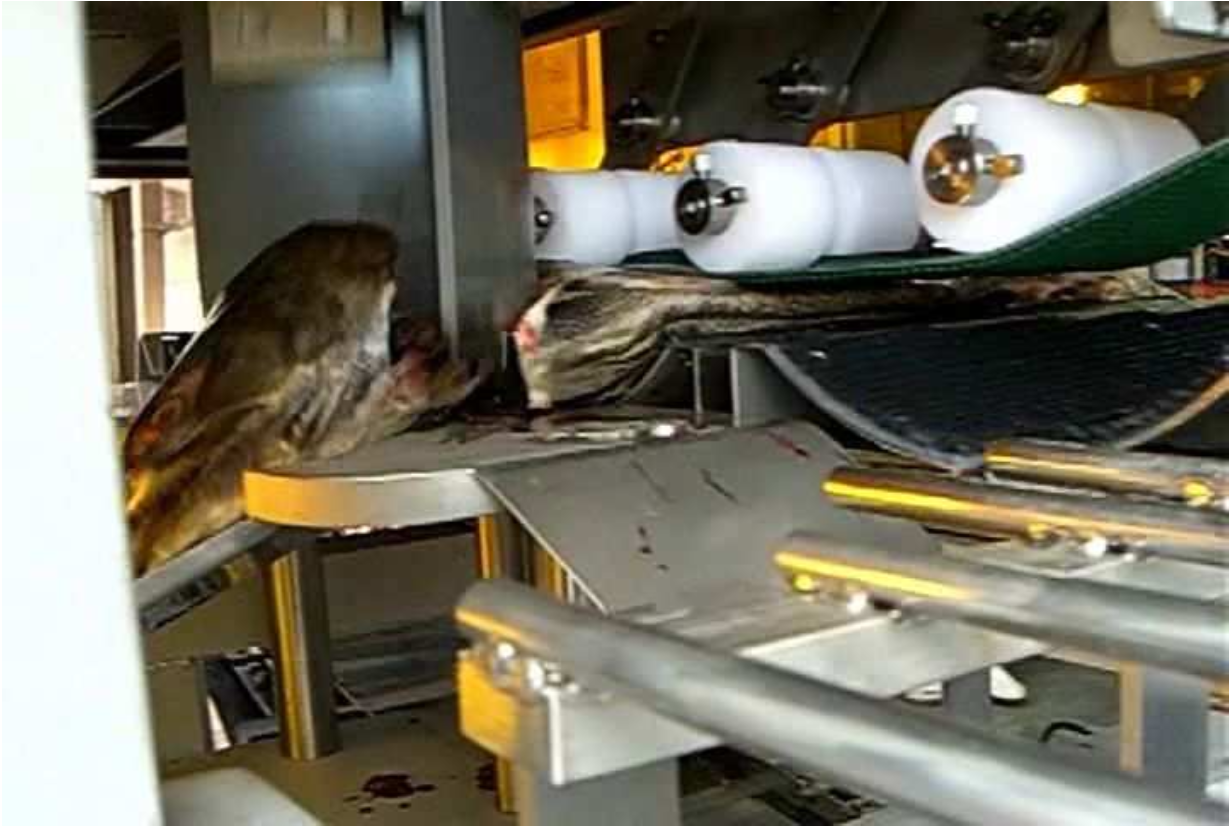

2.The moment the salmon's head is cut with a special U-blade.

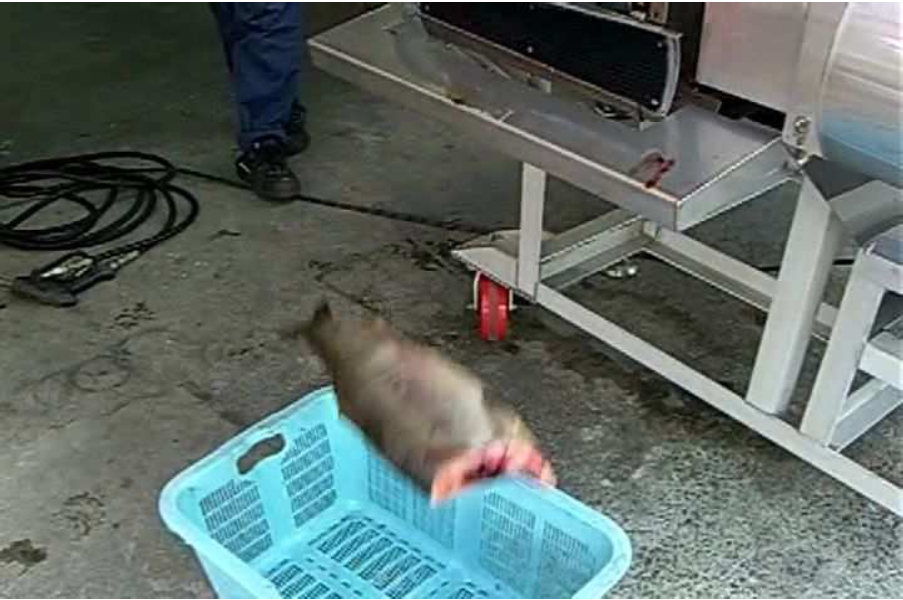

3. The processed material moves from the bucket into the container

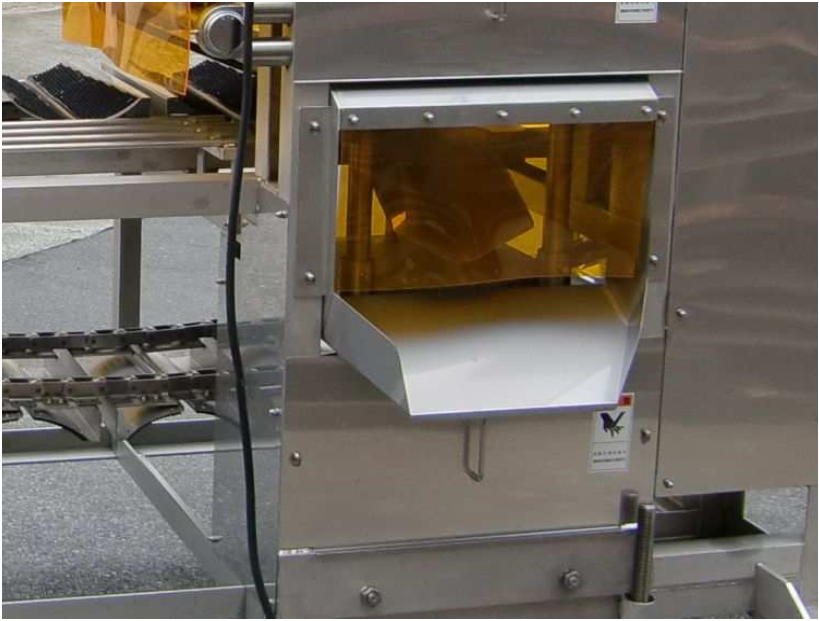

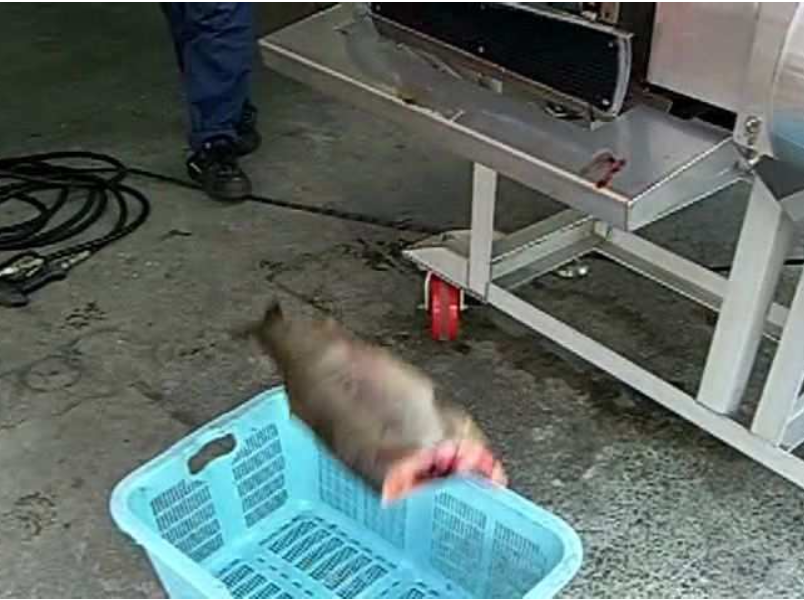

Outlet Chute for Fish Head

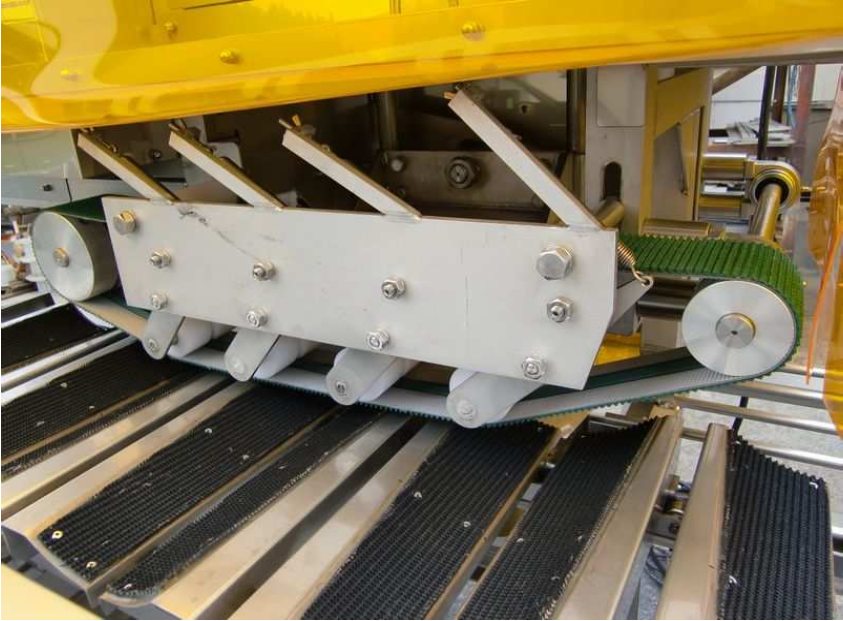

Bucket and Holding Belt

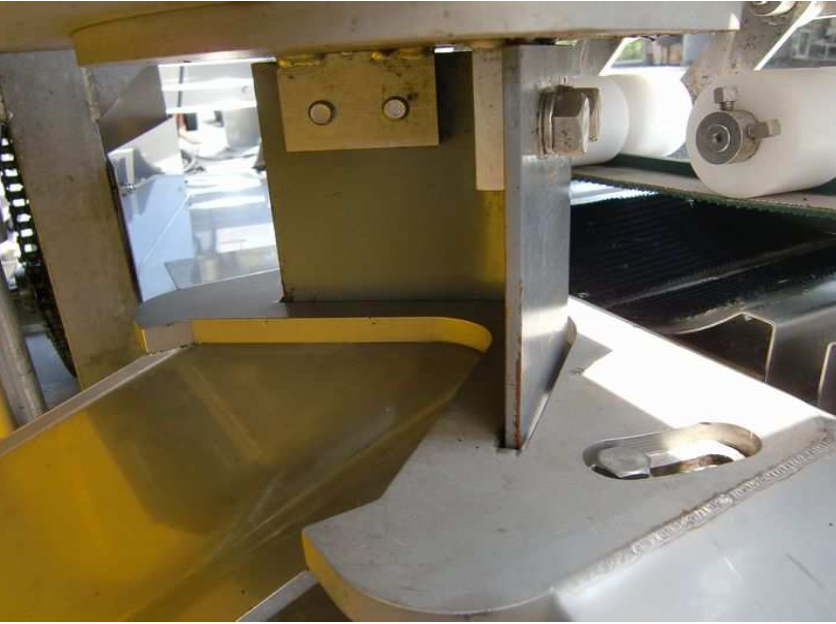

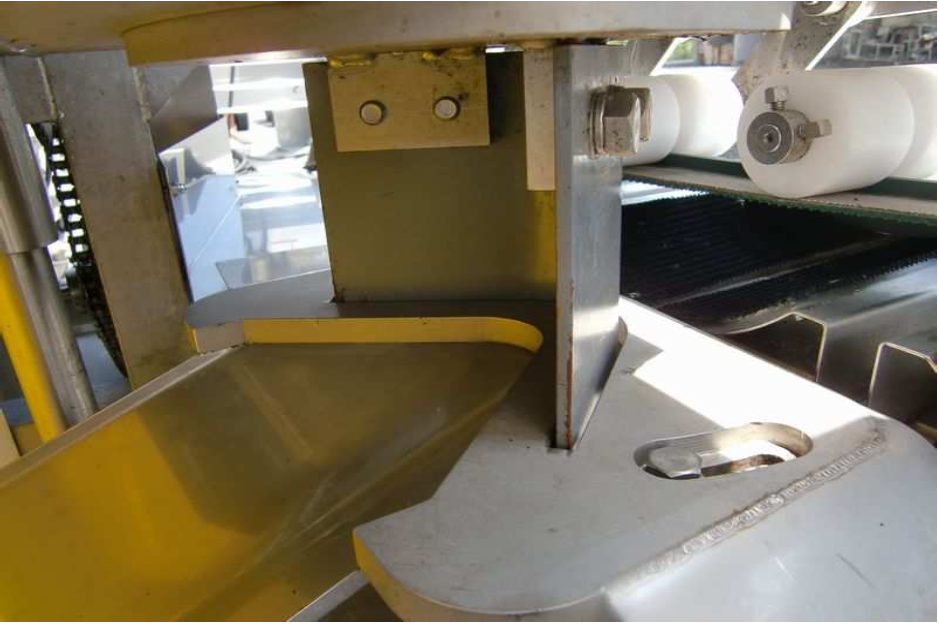

U-blade for Cutting Fish Head
This is the type of machine used for cutting bonito.
