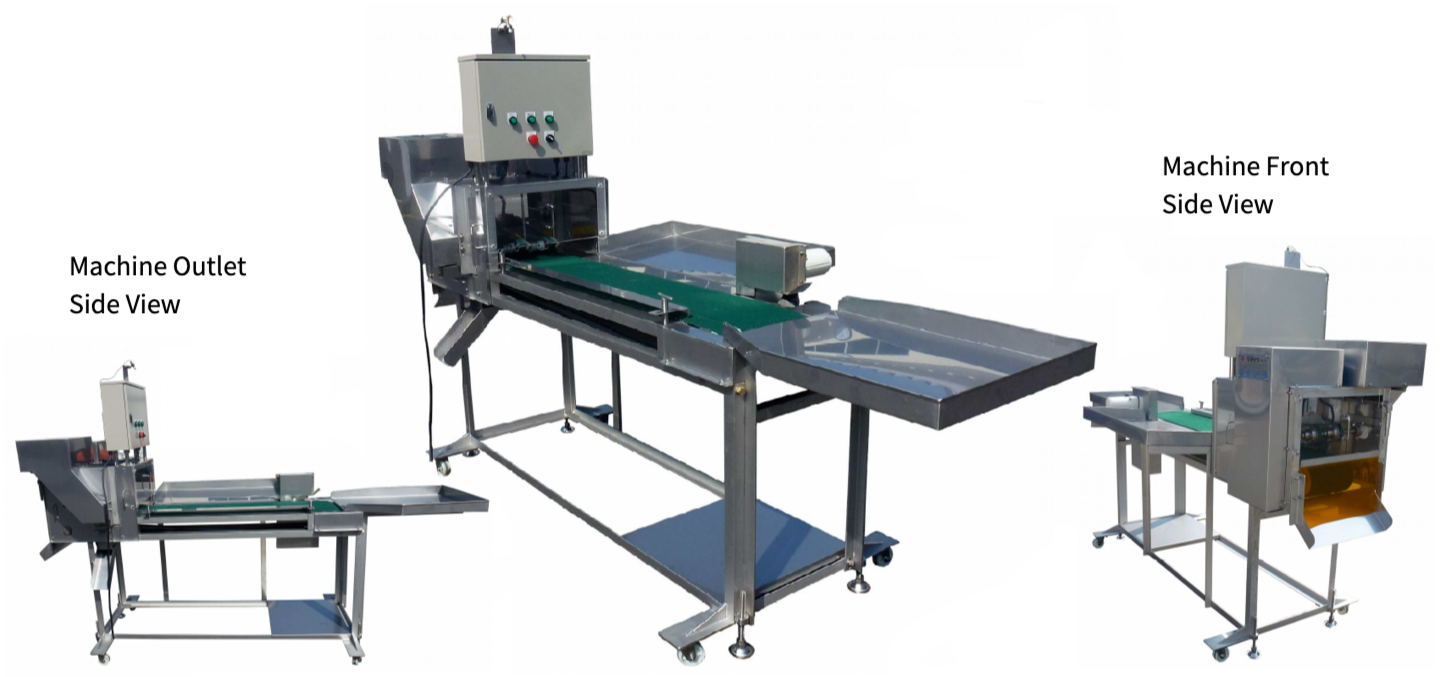

Medium Belt-Type Head Cutter



  • • This machine aligns raw materials that have passed through the tail cutter along a guide and
    removes the heads using a circular blade.

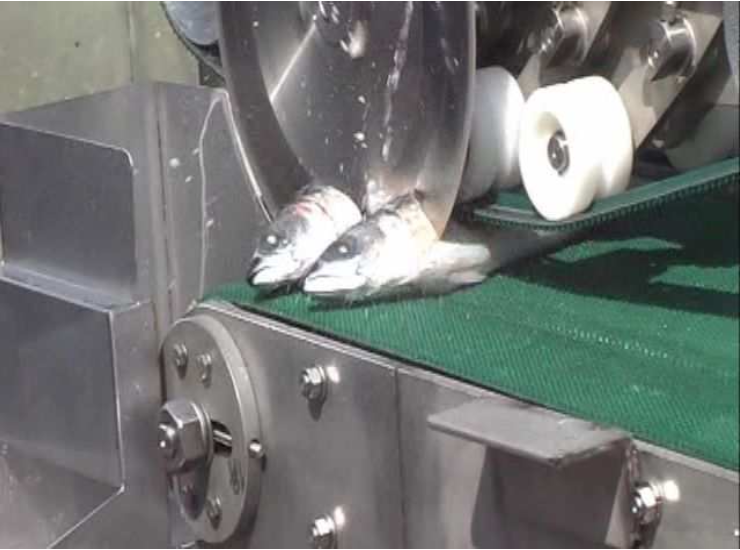

    • At the moment the head is cut with the circular blade, the material is held down by a belt, ensuring it stays in place and is cut straight.
    • It can be connected to machines such as three-piece filleting machines, improving work efficiency.
    • Belts with bars and double types are also available.

This is a belt-type head cutter for medium-sized fish, ensuring stable cutting and
high processing capacity
Cut sample: Mackerel





Cut sample: Mackerel



Key Features

  • ●Pressed by a belt, the fish heads are accurately cut with a circular blade.
  • ●Designed for medium-sized fish, it can handle a variety of fish species.
  • ●High processing capacity allows for large-volume processing.
  • ● By connecting with a butterflying machine, a consistent processing line can be constructed.
  • ●Designed with a focus on hygiene and easy to clean.

Specifications

  • ●Processing method: Circular blade type
  • ●Power: Total 1.85kW
  • ●Processing capacity: 60 fish per minute (Mackerel: 150g to 600g )
  • ●Machine dimensions: L2850 x W1100 x H2000 mm
  • ●Fish species processed: Horse mackerel, Mackerel, etc.

Explanation of Each Part in Processing

                   Tail Cutting Machine

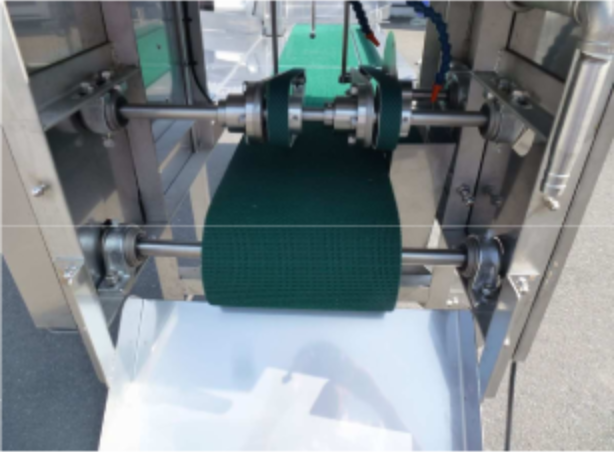

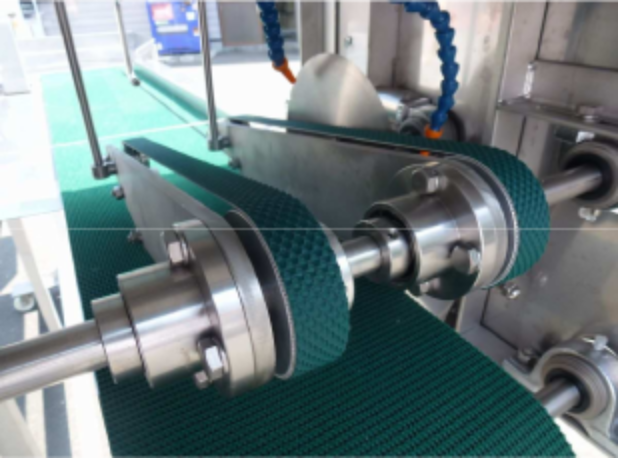

1. Circular blade and presser belt


2.Circular blade and presser belt.

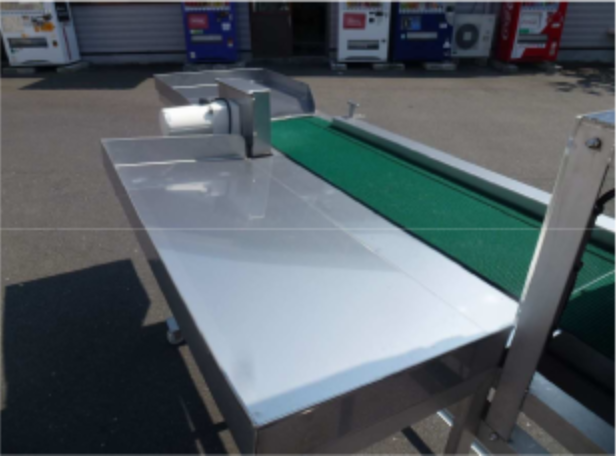

Raw Material Table

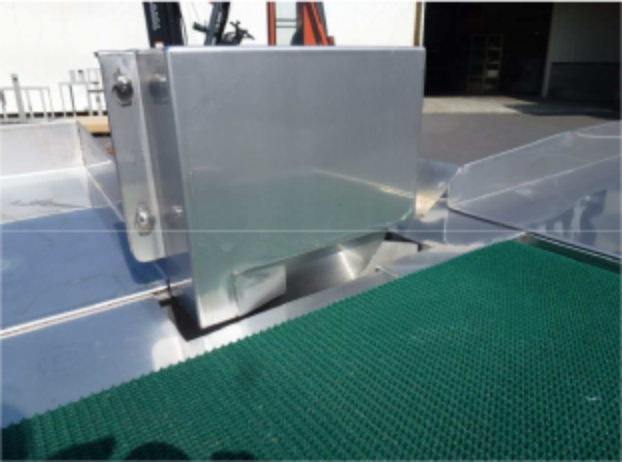

Outlet Chute


Head after processing
