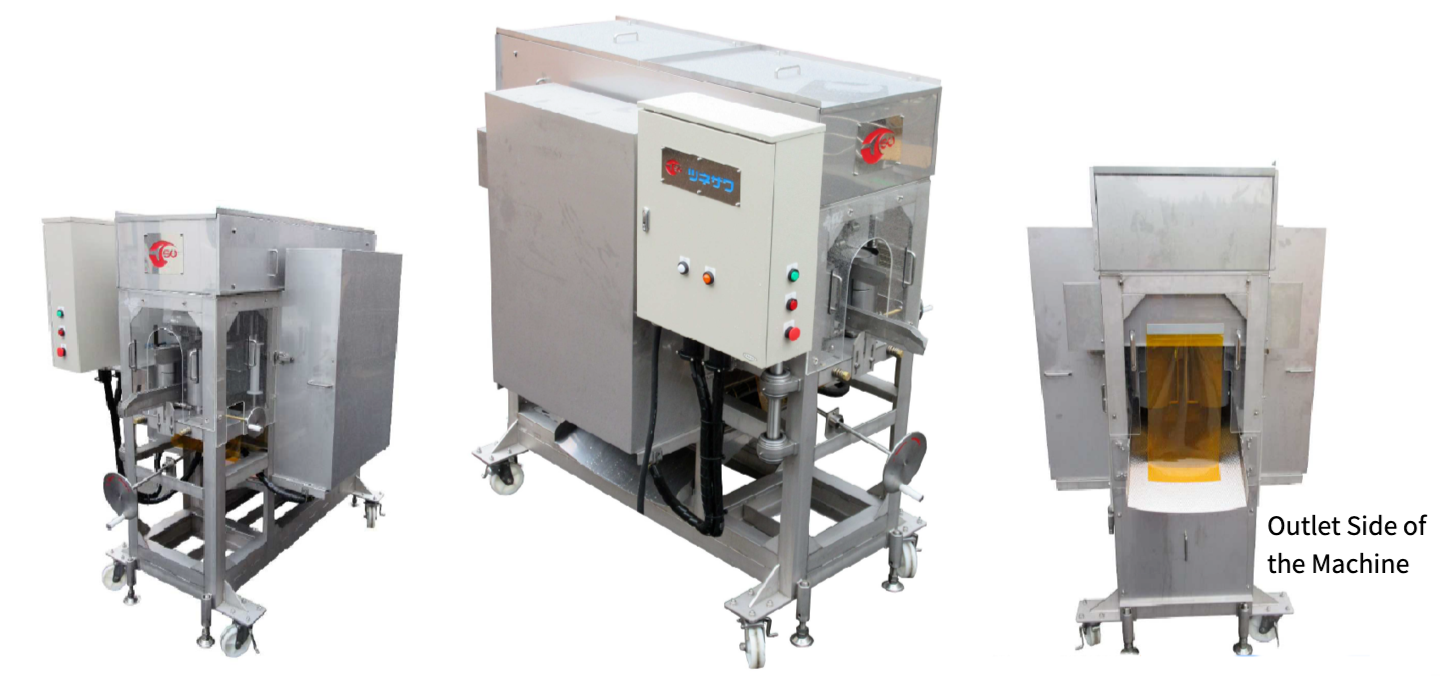

• This is the flagship model from Fishcutter Tsunezawa, offering high-precision threepiece filleting. • It is a high-performance machine suitable for a wide range of fish, from mackerel to yellowtail.
See the sharpness and excellent finish for yourself with actual samples.
The beautifully finished three-piece cut cross-section is a testament to the machine's
exceptional precision.
Cut sample: Mackerel
Cut sample: Sea bream
Cut sample: Yellowtail
Key features
● Clean and precise three-piece filleting for a wide range of species, from mackerel to yellowtail
● High-yield filleting with eight durable circular blades

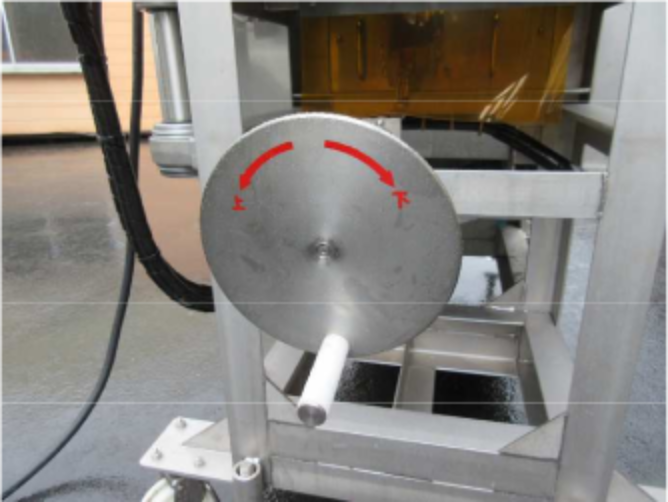

● Easy and fast blade adjustment using the rotary blade handle

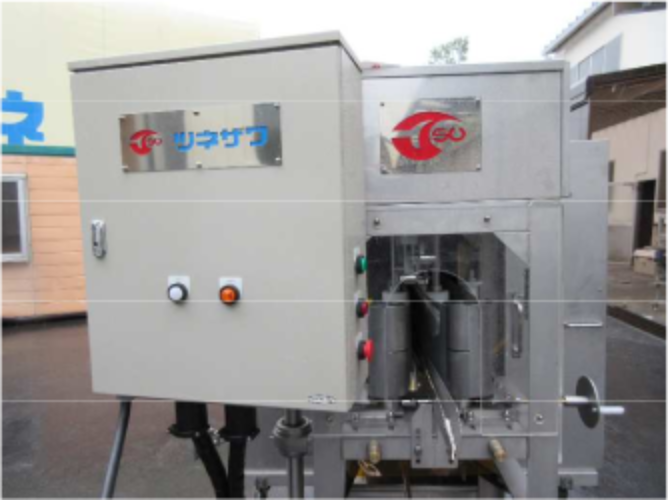

● Movable control panel for convenient cleaning and maintenance
● Supports optional components such as raw material tables and conveyor systems
● Extensive lineup of dedicated models tailored to specific fish species
Specifications
● Processing Method: 8 circular blade system (Fillet cutting)
● Power Consumption: Total 6.75 kW
● Water Consumption: 3–5 liters per minute
● Processing Capacity: Mackerel / Sea Bream – approx. 10 fish per minute,Yellowtail – approx. 5 fish per minute
● Machine Dimensions: L1800 × W1500 × H1700 mm
● Applicable Fish Species: Mackerel, Sea Bream, Greater Amberjack, Yellowtail, etc.
Processing Flow (Yellowtail Demonstration Report)

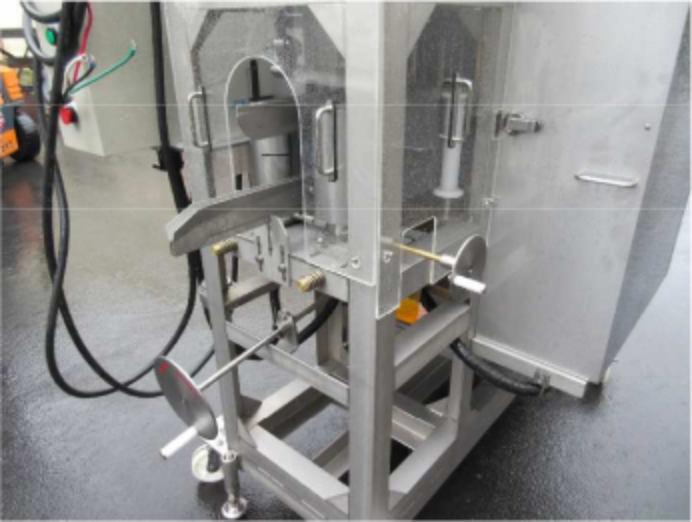

1. Adjust the rear guide by sliding it using the rear guide handle.

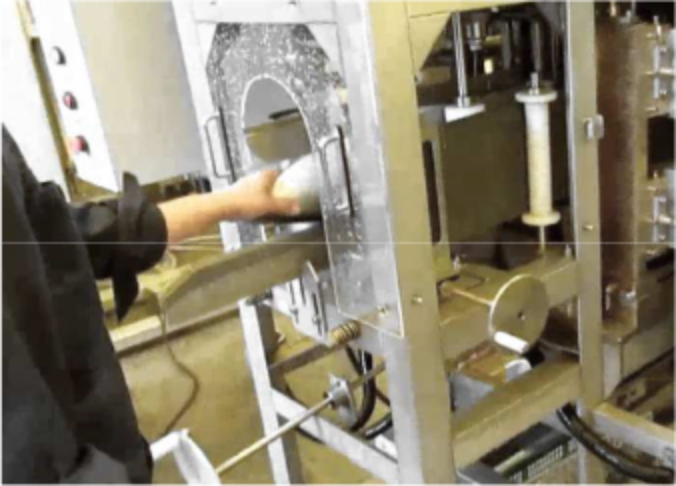

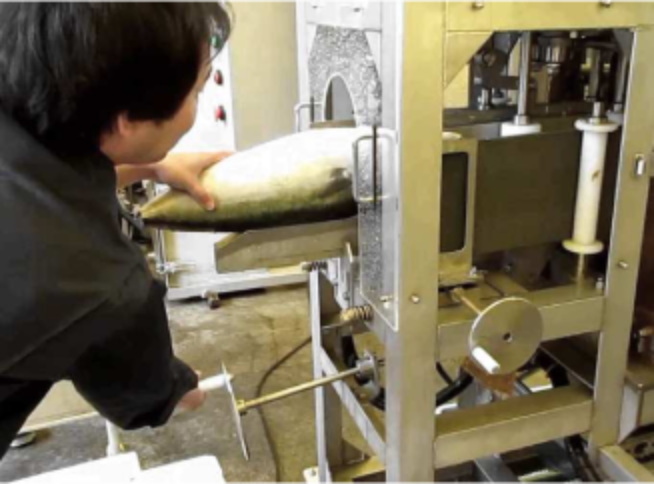

2. Place the fish on the inlet guide and gently push it forward.
3. The fish is then processed into three fillets and discharged through the outlet chute.
