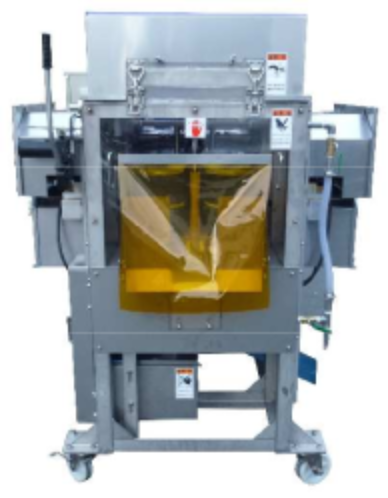

Sea Bream Three-Piece Filleting Machine



  • • This machine is a high-performance model specialized for three-piece filleting of red sea bream.
    • It delivers clean cuts and high yield, significantly improving work efficiency.

Designed for easy cleaning and compliant with HACCP standards.
A smart unit that balances safety and operational efficiency.
Handles both fresh and thawed fish, delivering professional-grade quality.

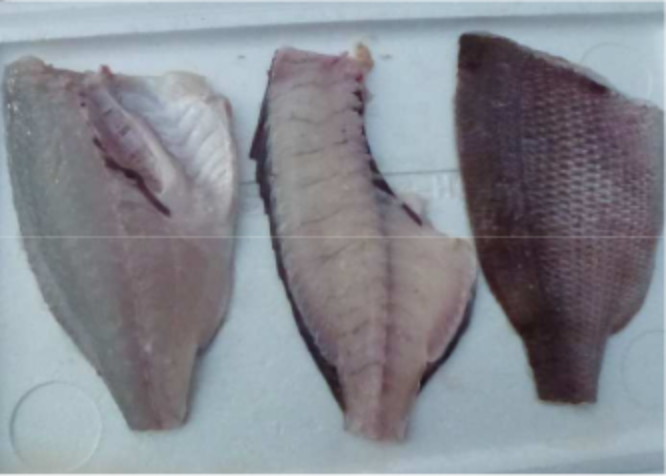

Cut sample: Red sea bream 1

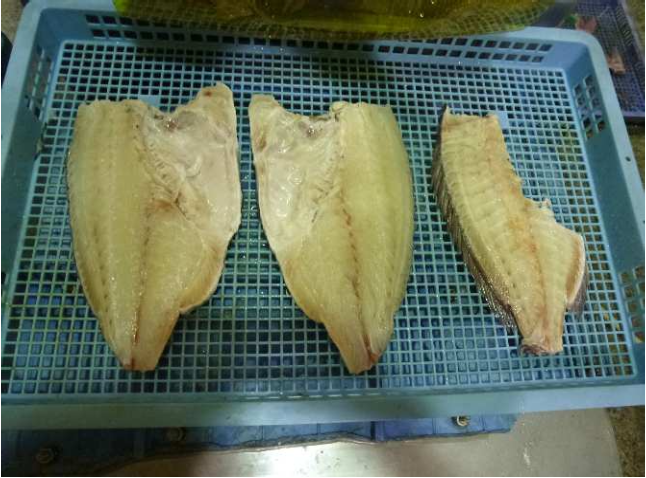

Cut sample: Red sea bream 2



Key Features

  • ● Dressed sea bream (raw or thawed) is processed into three pieces
  • ● Eight circular blades provide beautiful cuts and high yields
  • ● New design for improved maintenance and cleaning
  • ● Easy to operate, helping to significantly reduce work time
  • ● Safety is also a priority, and the structure is worker-friendly

Specifications

  • ● Processing method: 8 circular blades
  • ● Water consumption : 3 to 5 liters per minute
  • ● Machine dimensions: L2300 x W1300 x H1620 (mm)
  • ● Power: 0.75kW x 9 units (Total 6.75kW )
  • ● Processing capacity: Approximately 15 fish/min.
  • ● Target fish: Red sea bream, others

Processing Flow (Red Sea Bream Demonstration Report )

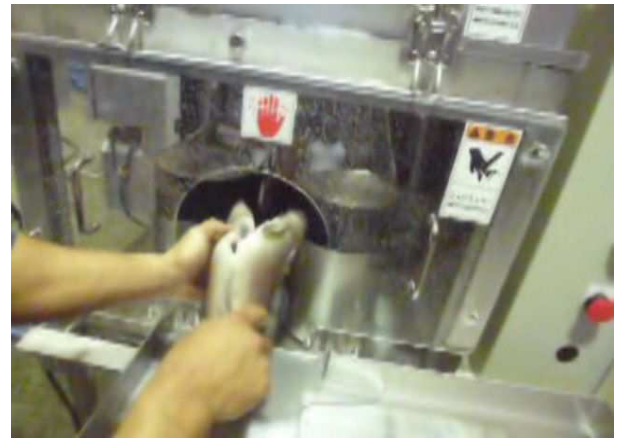

1. Place the raw material with its back facing down and gently push it forward along the inlet guide.

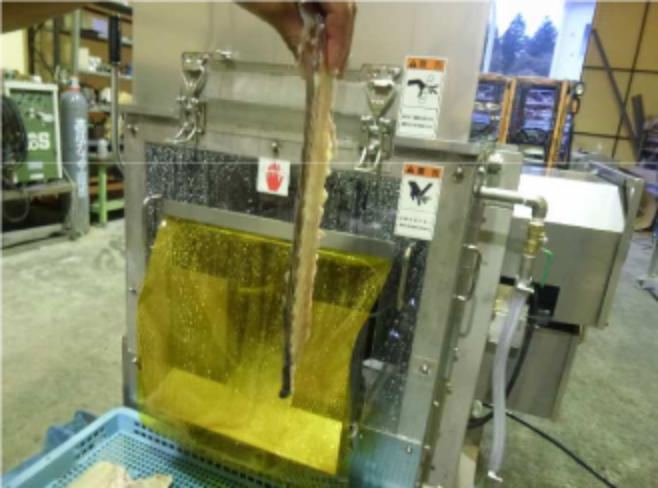

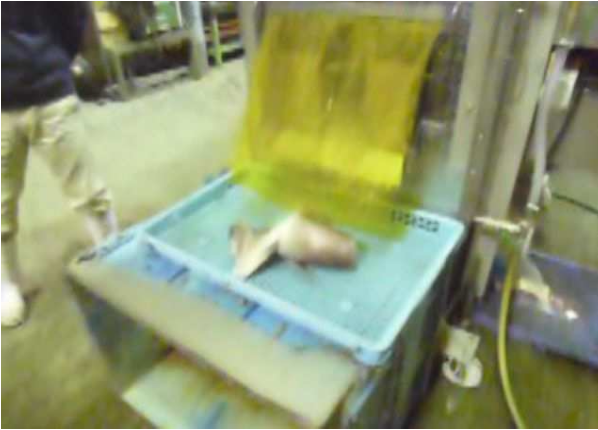

2. The backbone comes out of the waste chute.

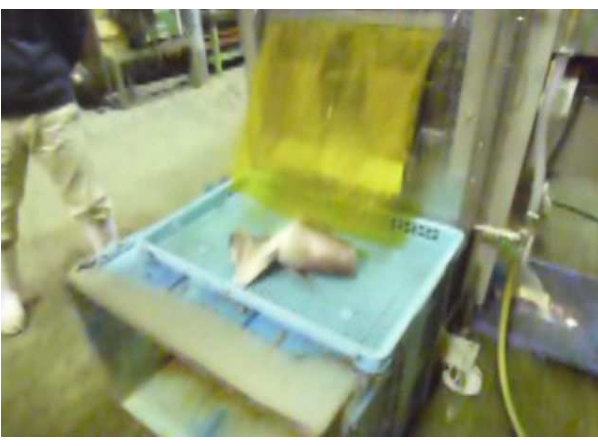

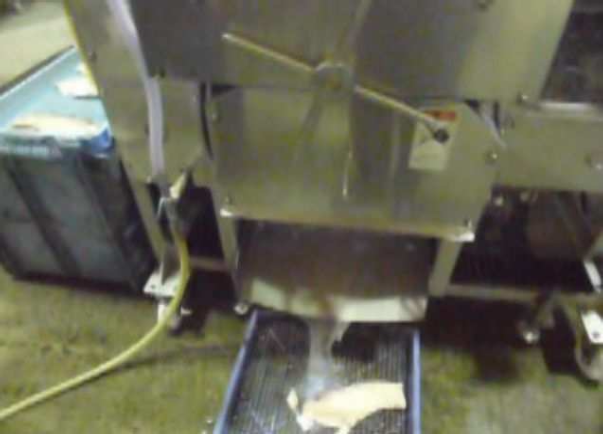

3. Fillets come out of the outlet chute with a good yield.

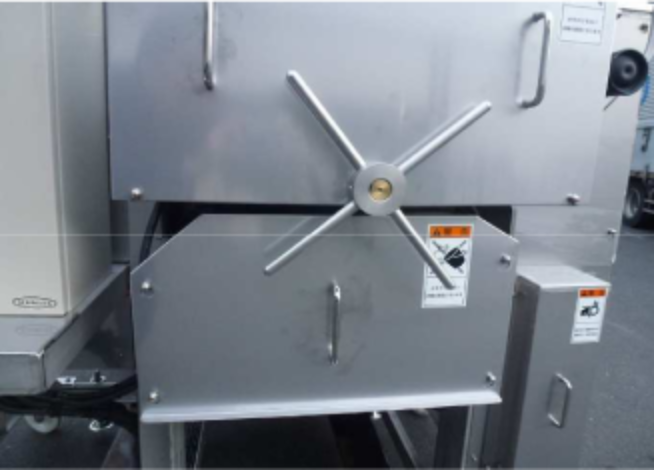

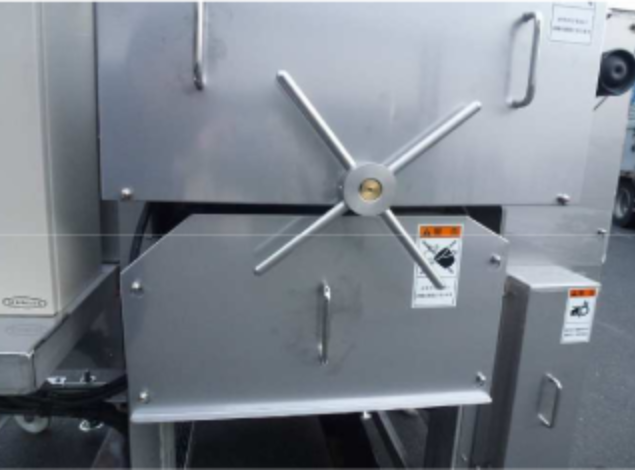

Adjustment Handle

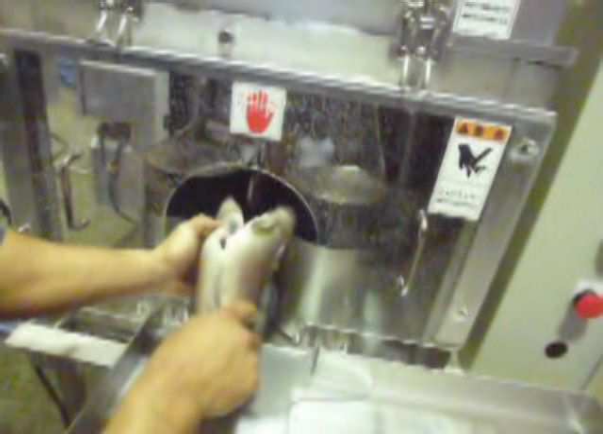

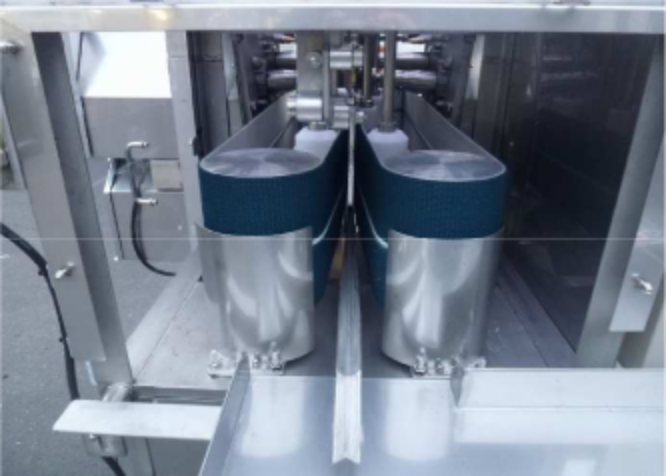

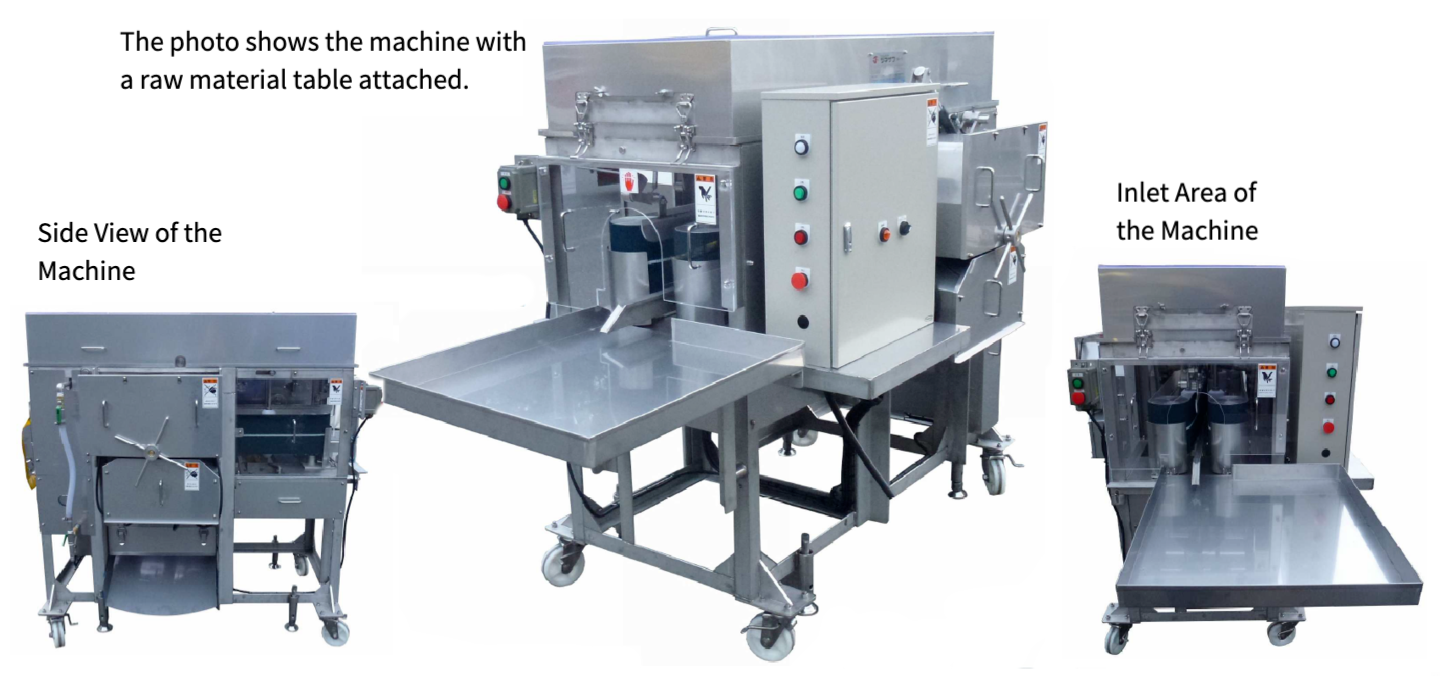

Inlet Guide

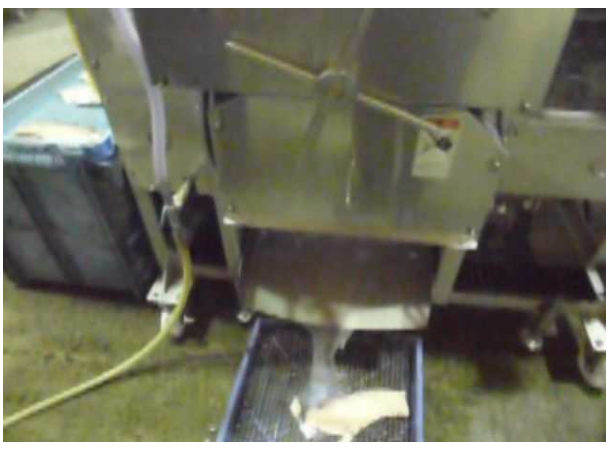

Machine Outlet Side View


High Yield Processing


2枚の丸刃




出口シュート部分
