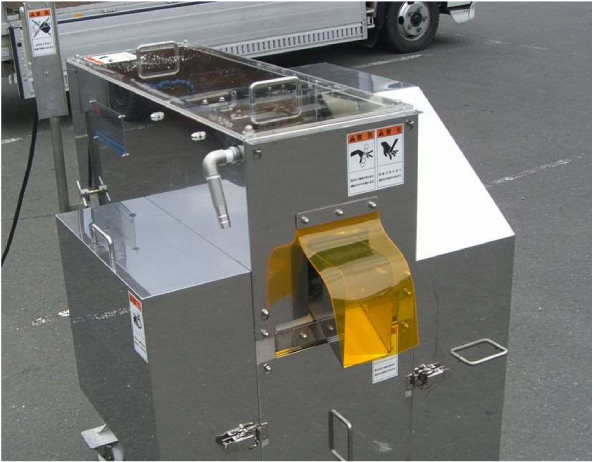

Small Fish Belly Bone Removal and Filleting Machine



  • • This machine processes sardines, mackerel, and similar fish into fillets with a high yield.
    • It can process the fish with beautiful cuts while maintaining the silver skin.

High-efficiency processing of up to 60 fish per minute.
Ideal for sashimi or deep-fried dishes.
The silver skin remains intact, preserving a beautiful appearance.
The use of special circular blades ensures vibrant and precise cut surfaces.
Cut sample: Sardine


Cut sample: Horse mackerel


Cut sample: Pacific saury



Key Features

  • ● Processes headless fish into boneless fillets
  • ● High yield comparable to manual filleting
  • ● Retains the silver skin without damage for an attractive finish
  • ● Circular blades can be easily adjusted using side handles
  • ● Bright, clean cuts with special circular blades
  • ● Suitable for various applications such as sashimi, sushi, and frying

Specifications

  • ● Processing Method: Circular Blade
  • ● Cutting Angle: Vertical
  • ● Post-Processing Shape: Fillet
  • ● Water Consumption: 2–3 liters per minute
  • ● Processing Capacity: 40–60 fish per minute
  • ● Power: 0.75kW × 1 unit
  • ● Accessories: Complete set of tools
  • ● Target Fish Species: Sardines, Pacific saury, Mackerel, etc.
  • ● Operating Personnel: 1 person
  • ● Dimensions: L1300 × W850 × H900 (mm)

Processing Flow (Sardine Demonstration Report)

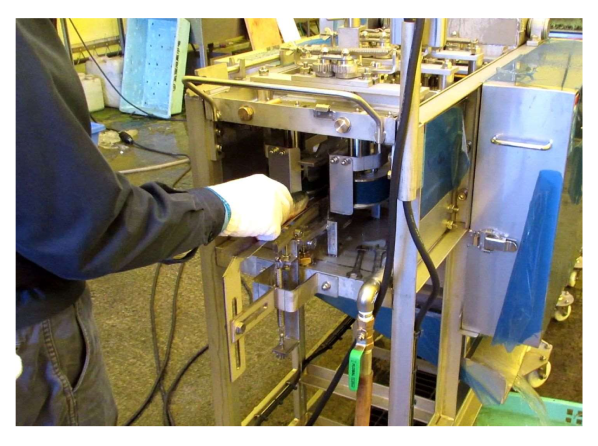

1. Insert through the inlet guide

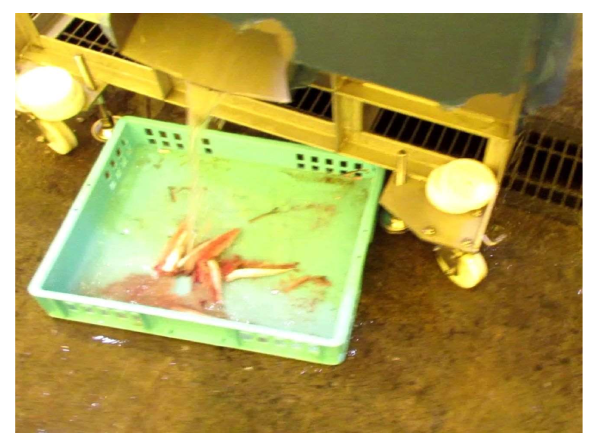

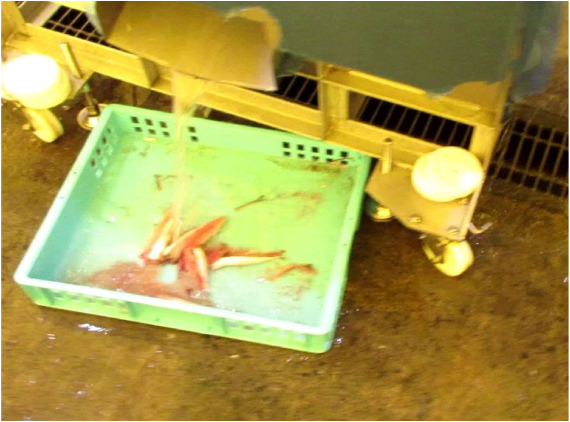

2. Residue is discharged through the waste chute

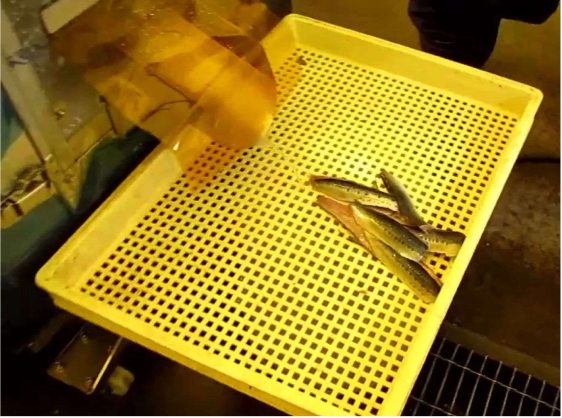

3. Outlet Chute




Inlet Guide

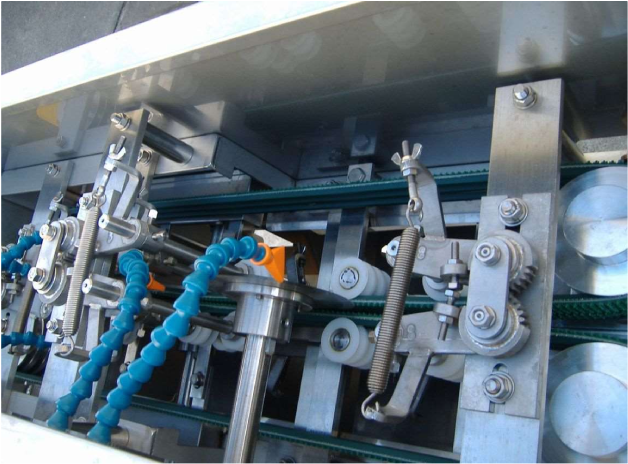

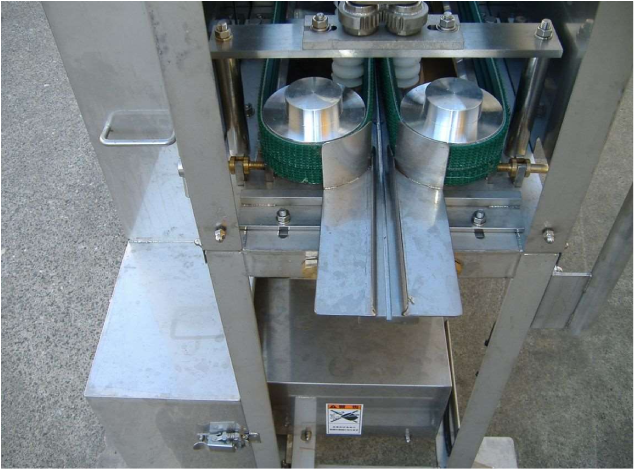

Circular Blade with Feed Belt


Outlet Chute
