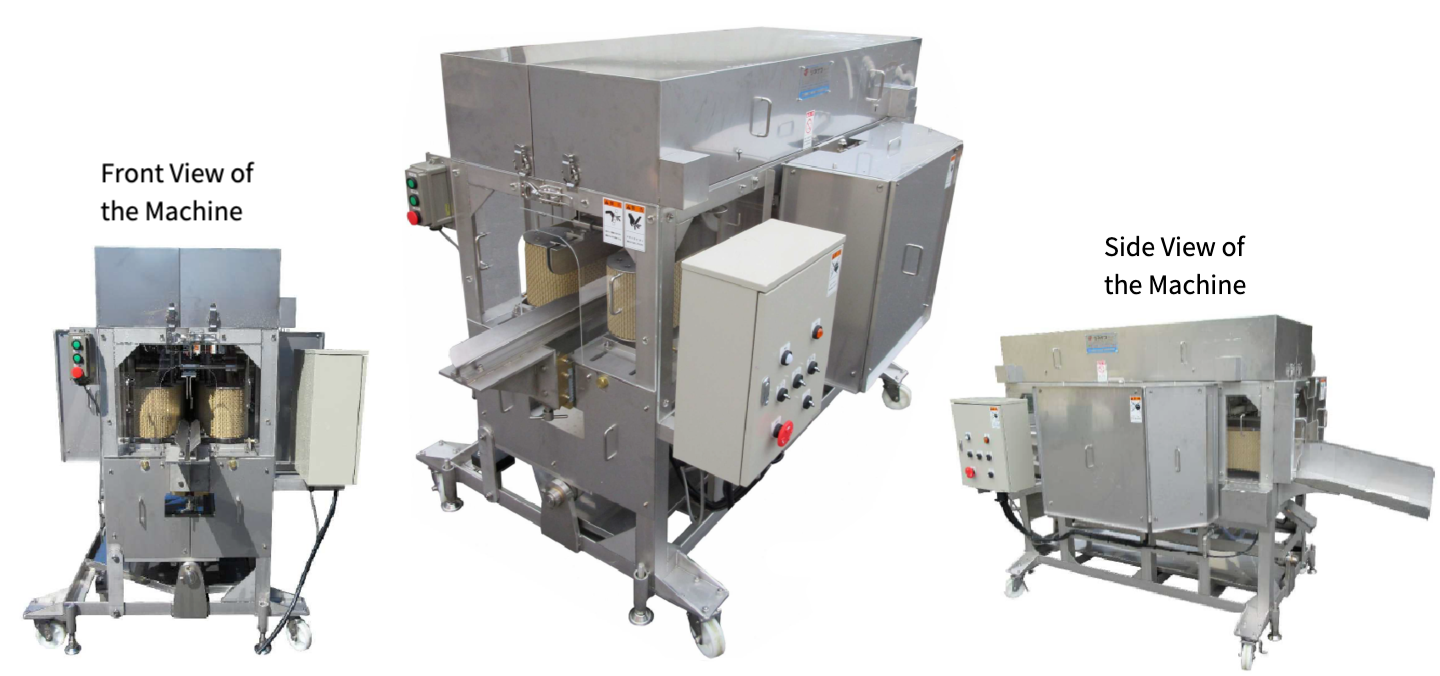

Yellowtail and Amberjack Filleting Machine TAF-DD Model
• This machine efficiently performs three-piece filleting of large fish such as yellowtail and amberjack. • Easy operation for anyone, ensuring high yield.

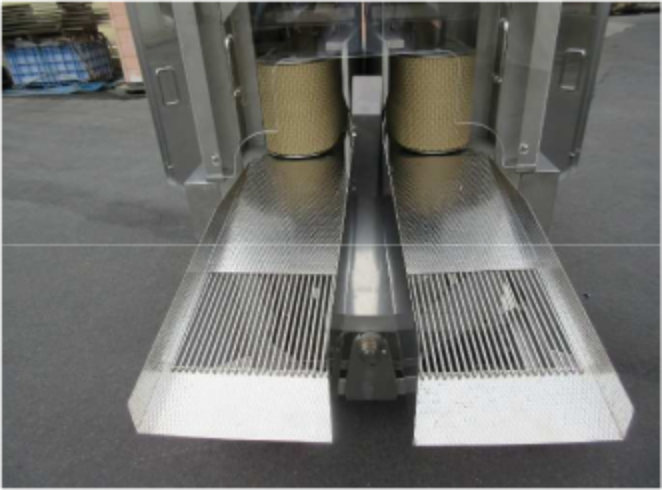

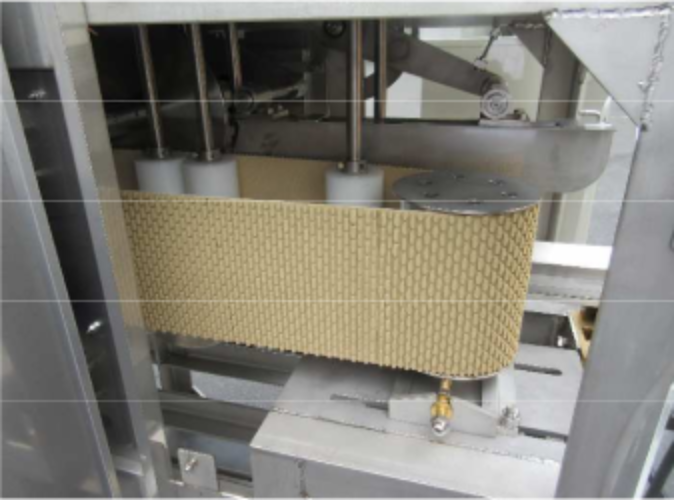

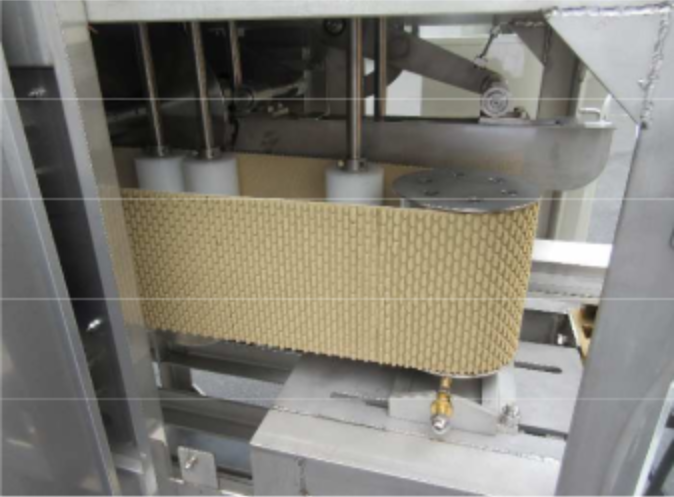

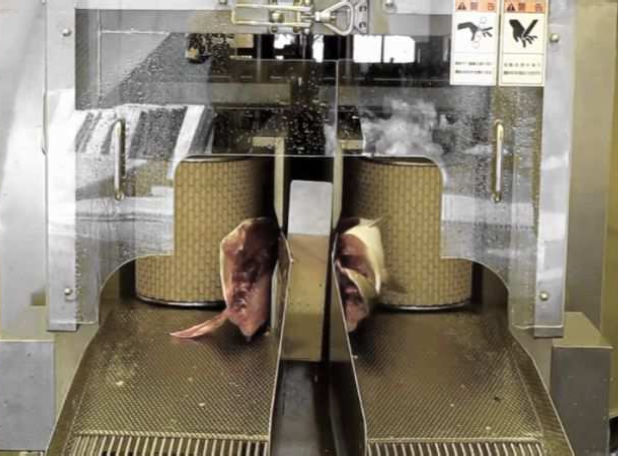

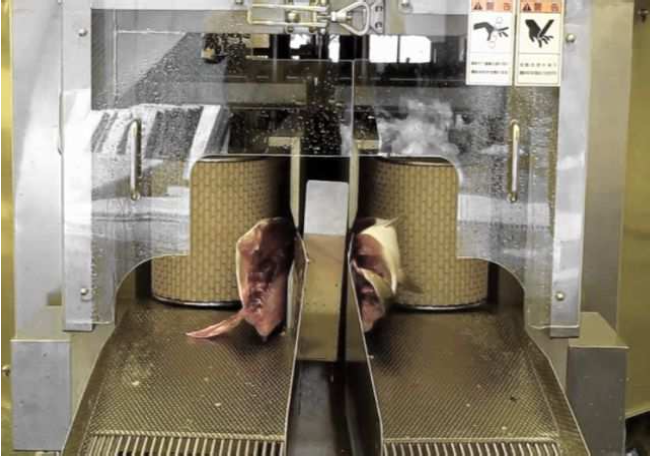

The belt-type feeding system smoothly supports the operation.。

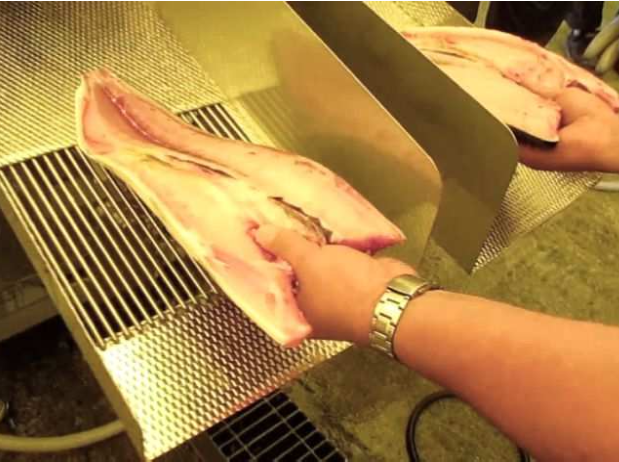

Just push to achieve a reliable three-piece filleting.
Adjusting the vertical bone width automatically sets the optimal cutting condition.
Cut sample: Yellowtail
Cut sample: Yellowtail
Cut sample
Cut sample
Key Features
● Simply push the gutted raw material to achieve three-piece filleting.
● Belt-type fish feeding system for easy and safe operation.
● No need to adjust fish input timing, improving work efficiency
● Easy setup by adjusting the vertical bone width with two handles.
● Yield is approximately 67-70% from round fish and about 90% from dressed fish.
Specifications
● Processing capacity: Approximately 15 fish/min.

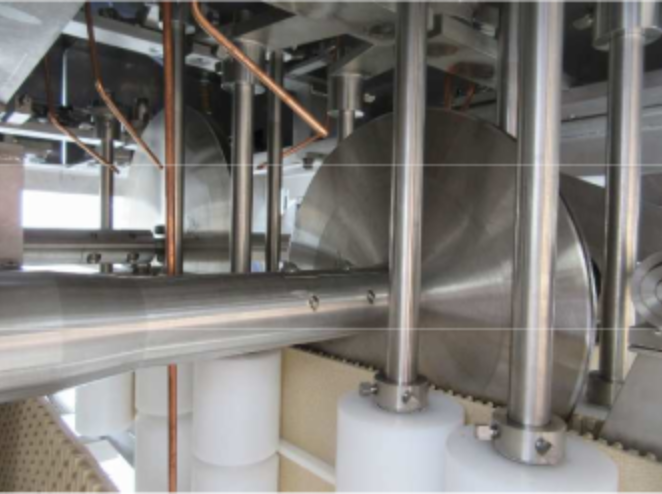

● Processing method: 6 circular blade type
● Machine dimensions: L2800 x W1420 x H1685 (mm) consumption : 2 to 3 liters per minute
● Power: Total 5.25kW ( 0.75kW x 1 unit, 0.75kW flange type 1/6 x 6 units)
● Target fish: Yellowtail, Japanese amberjack, Amberjack, etc.
Processing Flow (Demo Report: Young Yellowtail)

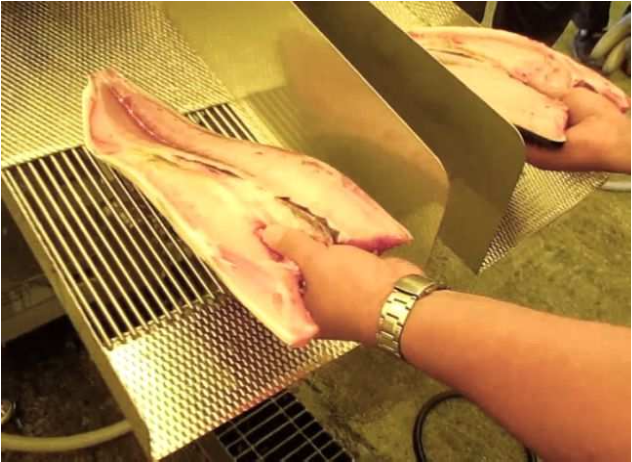

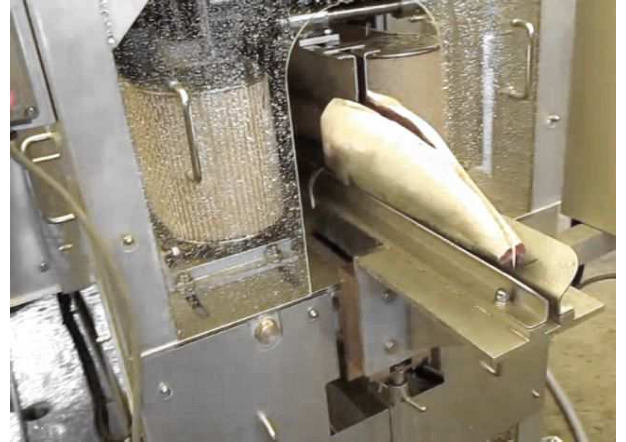

1. Place the material on the inlet guide and push gently
