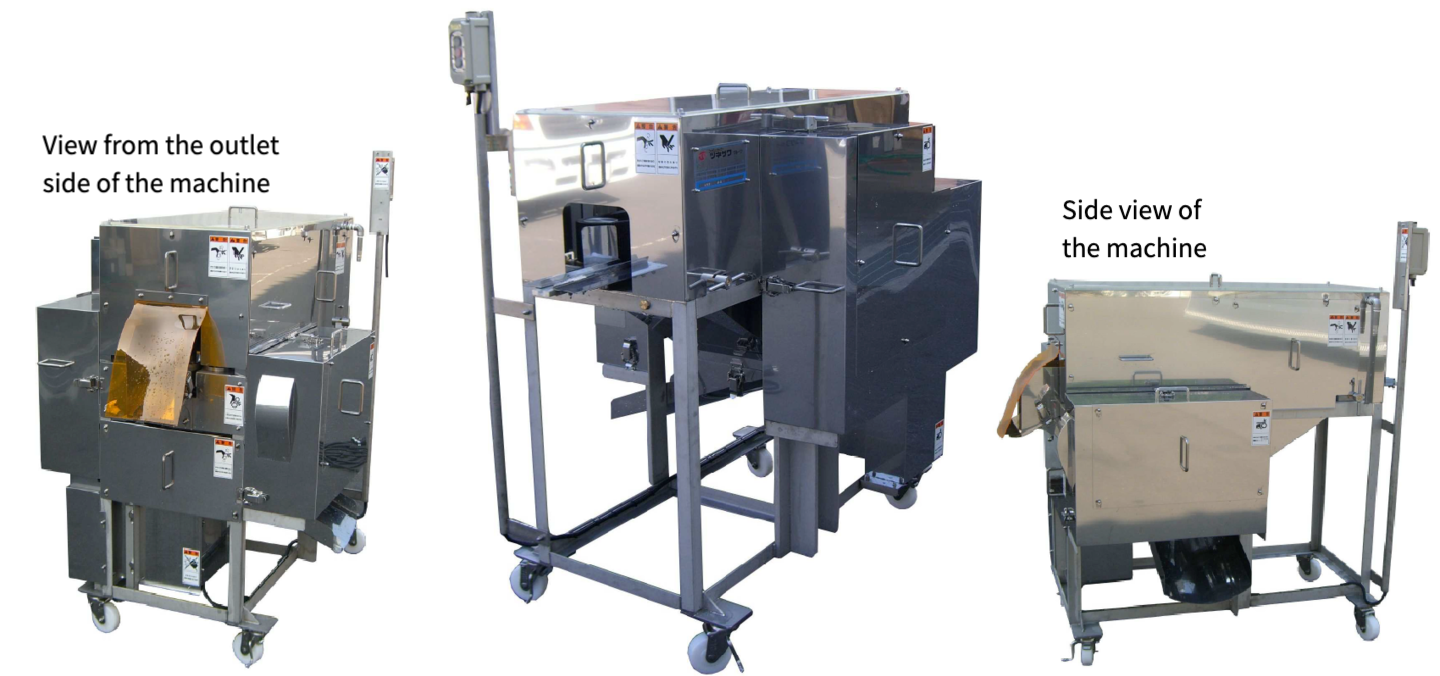

Medium-sized Fish Filleting Machine (TAS-C)



  • • This machine processes up to 60 medium-sized fish per minute, such as mackerel and Atka mackerel.
    • The central bone width can be easily adjusted, and linking with other equipment enhances efficiency.

Processes fresh or semi-thawed medium-sized fish smoothly into fillets.
Produces beautiful three-piece fillets with belly bones attached.
Central bone width is easily adjustable via a handle.

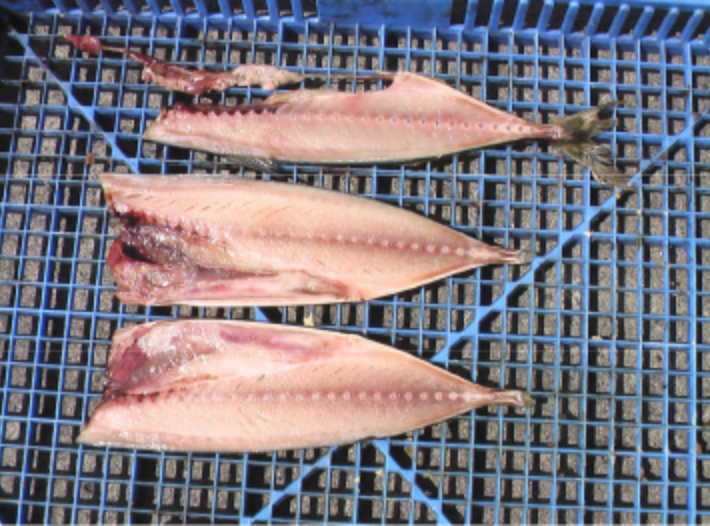

Cut sample: Mackerel


Cut sample: Mackerel 2


Cut sample: Flying Fish



Key Features

  • ● A dedicated machine for filleting semi-thawed or fresh medium-sized fish into three pieces
  • ● Clean cuts with vertical round blades
  • ● Easy adjustment of the backbone width using the left and right handles
  • ● High yield with fillet products (belly bones intact)
  • ● Improved work efficiency through connection with head cutter

Specifications

  • ● Processing method: Vertical circular blade (chain drive)
  • ● Product after processing: Fillet product (with belly bones)
  • ● Processing capacity: 40-60 fish per minute
  • ● Total power: 1.5 kW
  • ● Water consumption: 3-5 liters per minute
  • ● Machine dimensions: L1460 × W1000 × H1260 (mm)
  • ● Target fish species: Mackerel, Spanish mackerel, Horse mackerel, Atka mackerel,Red rockfish, Catfish, others

Processing Flow (Mackerel Demonstration Report)

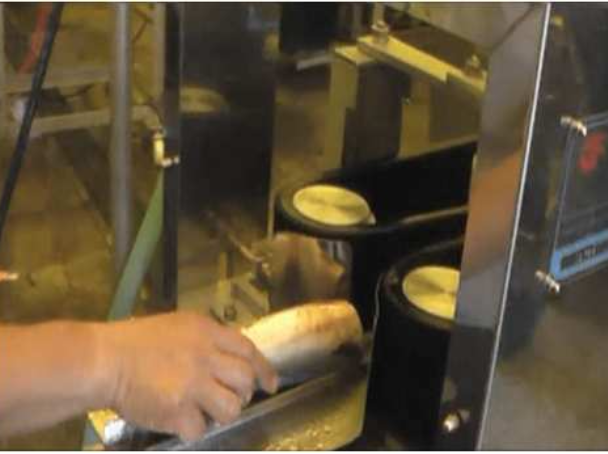

1. Insert the raw material with the back facing down.


2. Fish passes through the circular blades.

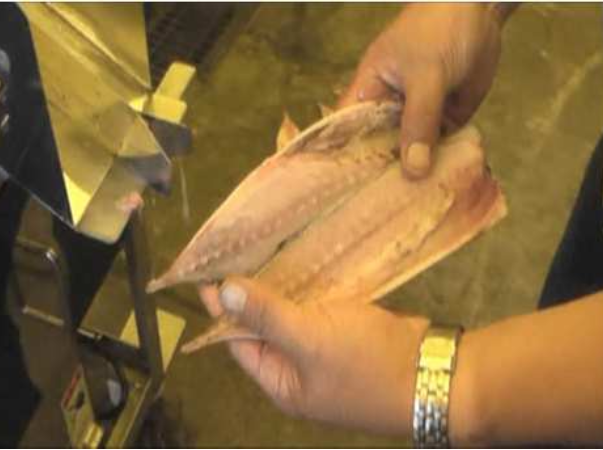

3. The product is neatly filleted into three pieces.

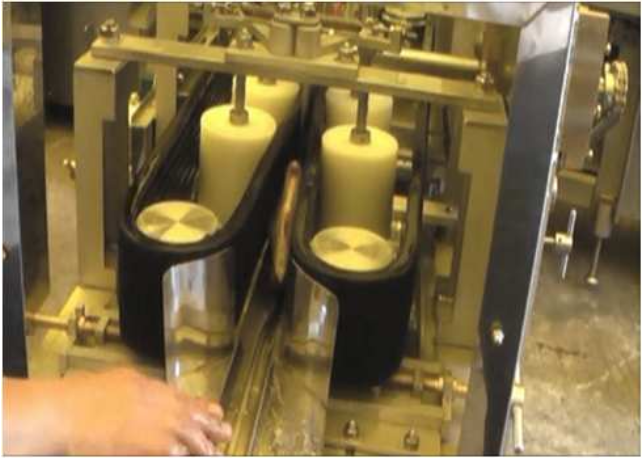

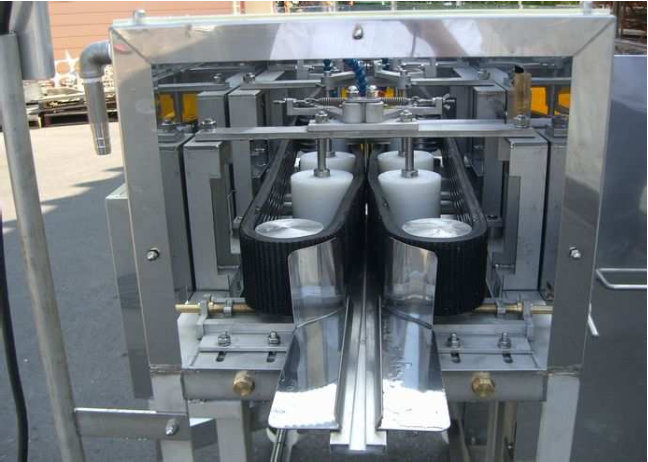

Inlet Area

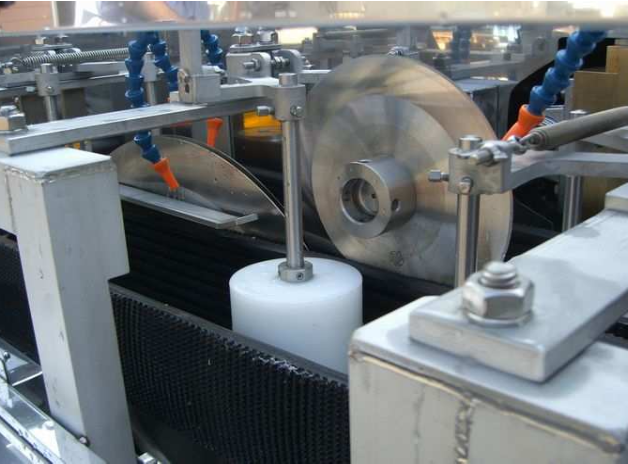

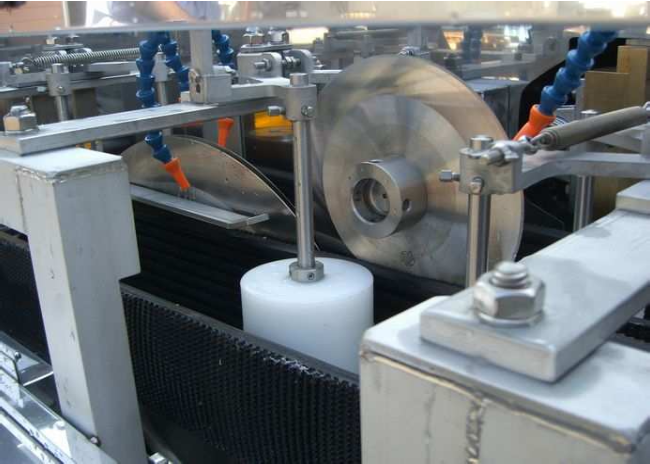

Circular Blades

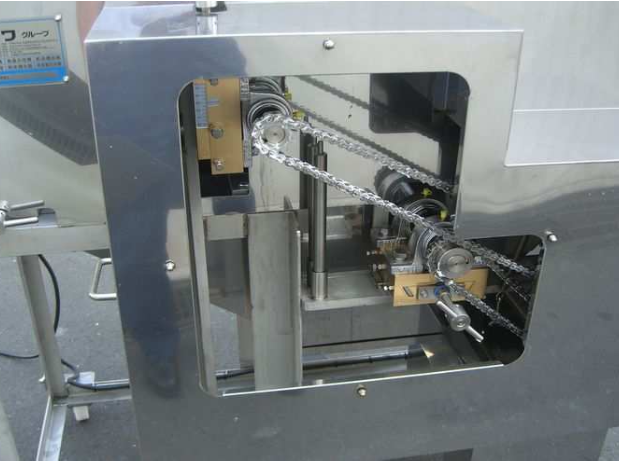

Handle

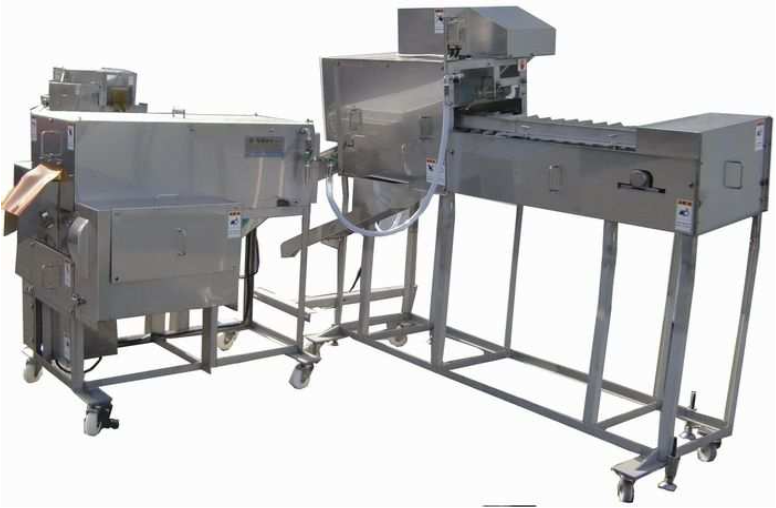

By connecting it to a head cutter, work efficiency is improved!


2枚の丸刃




出口シュート部分
