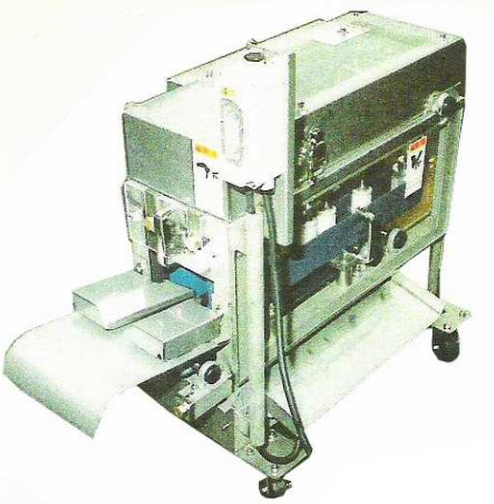

• This dedicated machine is designed to open squid cleanly without damaging the internal organs. • It supports both squid with and without fins (ears), making it ideal for processing products such as semi-dried squid.
You can confirm the quality of the cut and the opening method through actual processing sample images.
Processing modes for both finned and finless squid are available, allowing customization based on product requirements.

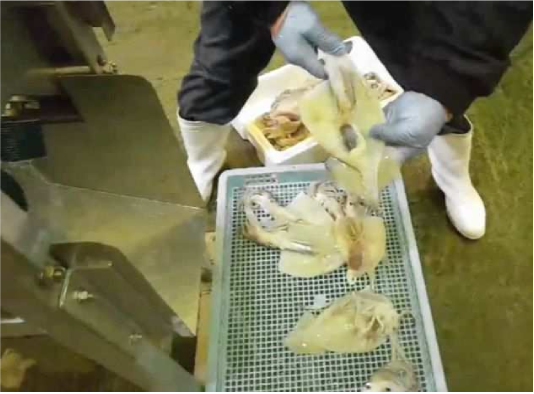

Cut sample: Squid 1

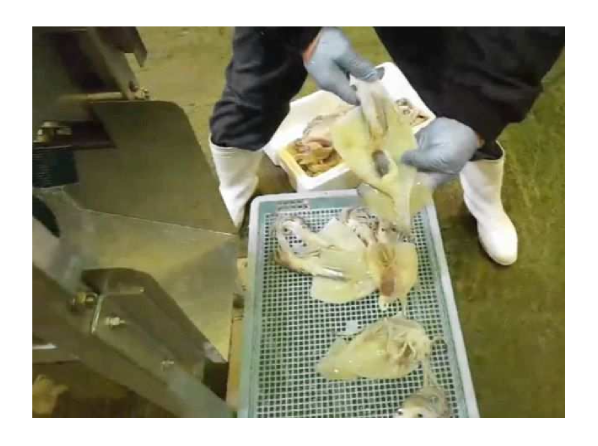

Cut sample: Squid 2
Key Features

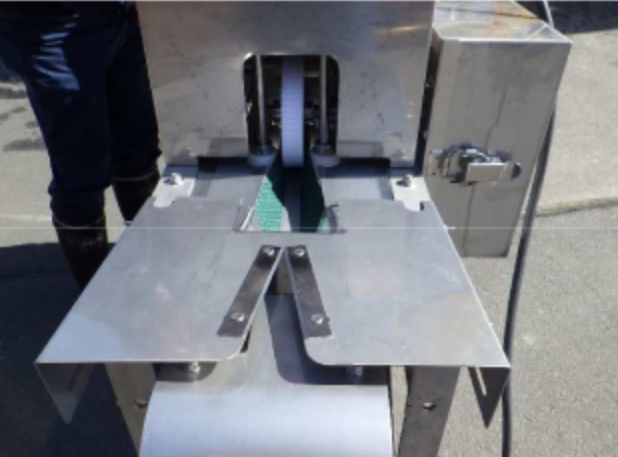

●Opens squid cleanly with a circular blade without damaging the internal organs
●Simple operation—just lightly push the squid forward with the tentacles facing the machine

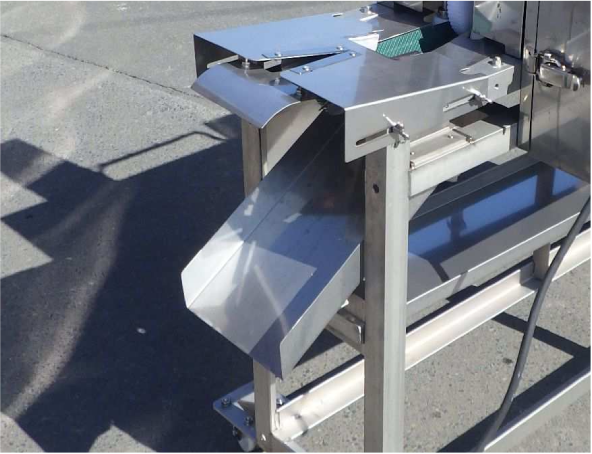

●Smooth discharge of fin-cut off squid
●Processing with fins is ideal for overnight-dried or other processed products

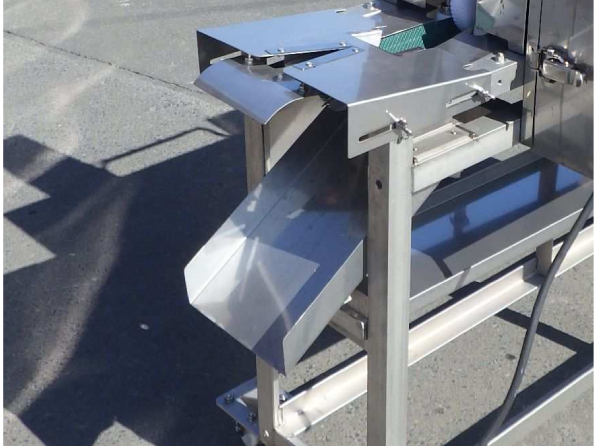

●Optional raw material table available
●Proven implementation of high-speed opening machines suitable for mass processing

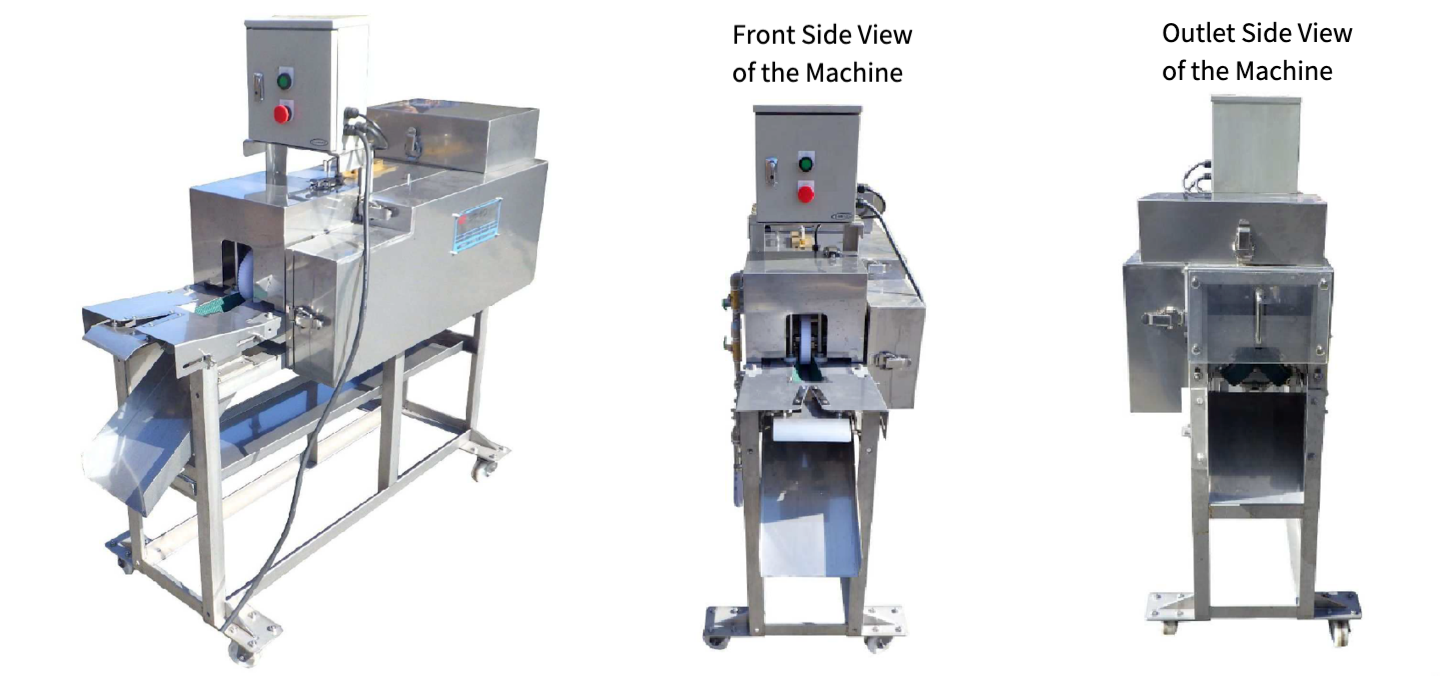

Product Specifications
●Processing Method: Circular blade type
●Machine Dimensions: L1400 × W550 × H1400 (mm)
●Power: Total 0.3 kW
●Water Usage: Approx. 1 liter/min
●Processing Capacity: 20–30 pieces per minute
●Applicable Fish Species: Squid
Processing Flow (Squid Demonstration Report )

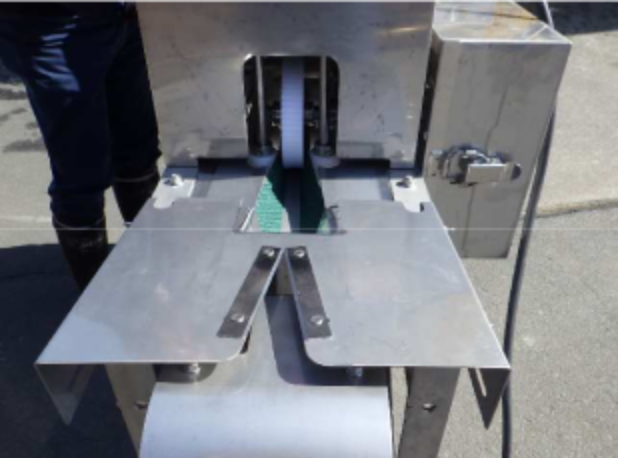

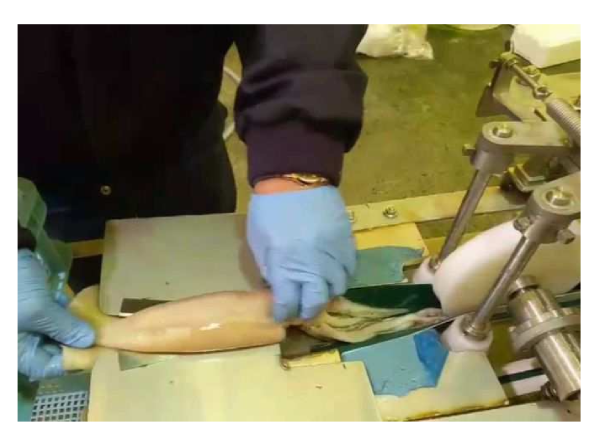

1. Insert the squid into the machine with the tentacles facing forward.

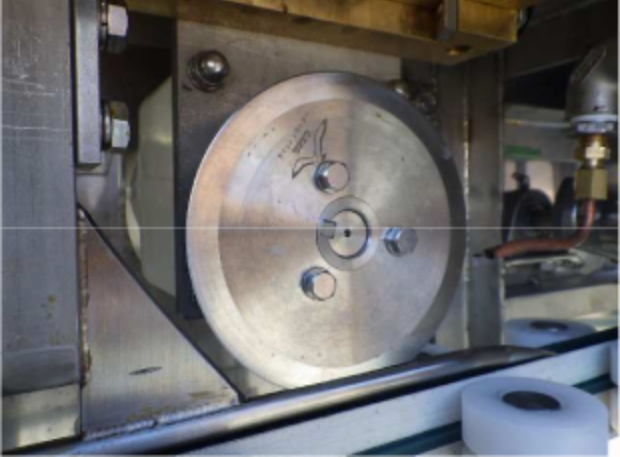

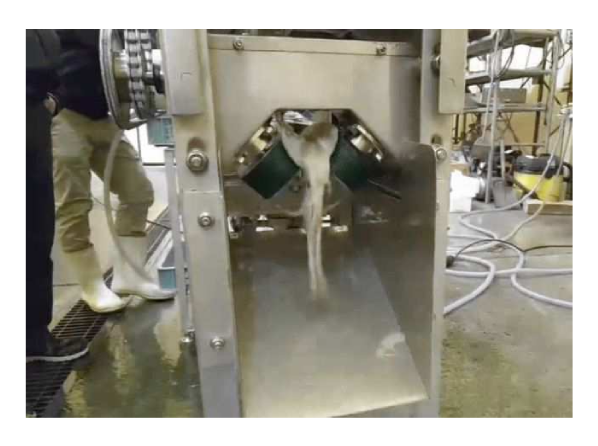

2. The squid is opened with the circular blade and proceeds toward the outlet.
